FH580V-DS37 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

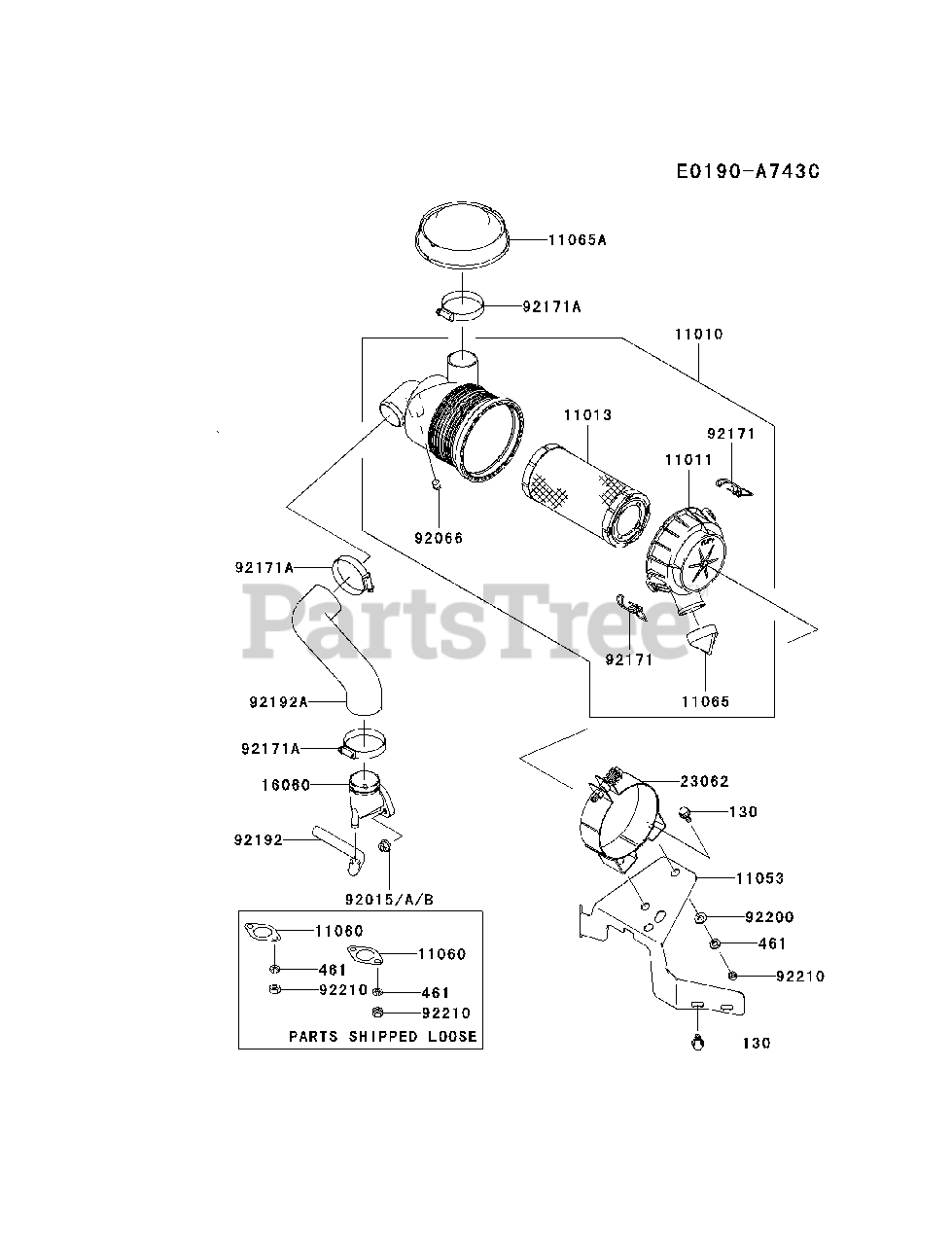

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7017

FILTER-ASSY-AIR
(Superseded to 11010-7034)

$110.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-7032

CASE-AIR FILTER

$53.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-7029

ELEMENT-AIR FILTER

$21.99

$

In Stock, Qty 15

0

11053

Kawasaki 11053-7019

BRACKET

$61.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, only 4 left!

0

11065

Kawasaki 11065-7008

CAP

$19.99

$

In Stock, Qty 5

0

11065A

Kawasaki 11065-7011

CAP
(Superseded to 11065-7026)

$

$

Not available

16060

Kawasaki 16060-7011

PIPE-INTAKE

$29.99

$

In Stock, only 1 left!

0

23062

Kawasaki 23062-7012

BRACKET-COMP

$41.99

$

Usually ships in 2-5 days

0

92015A

Kawasaki 92015-1367

NUT

$4.49

$

In Stock, only 2 left!

0

92066

Kawasaki 92066-7018

PLUG

$11.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7009

CLAMP

$12.99

$

In Stock, Qty 7

0

92171A

Kawasaki 92171-7010

CLAMP

$8.49

$

In Stock, only 2 left!

0

92192

Kawasaki 92192-7013

TUBE

$44.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-7095

TUBE

$45.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-1213

WASHER,8.5X18X2.3

$2.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, only 2 left!

0

130

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
