FH580V-DS06 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

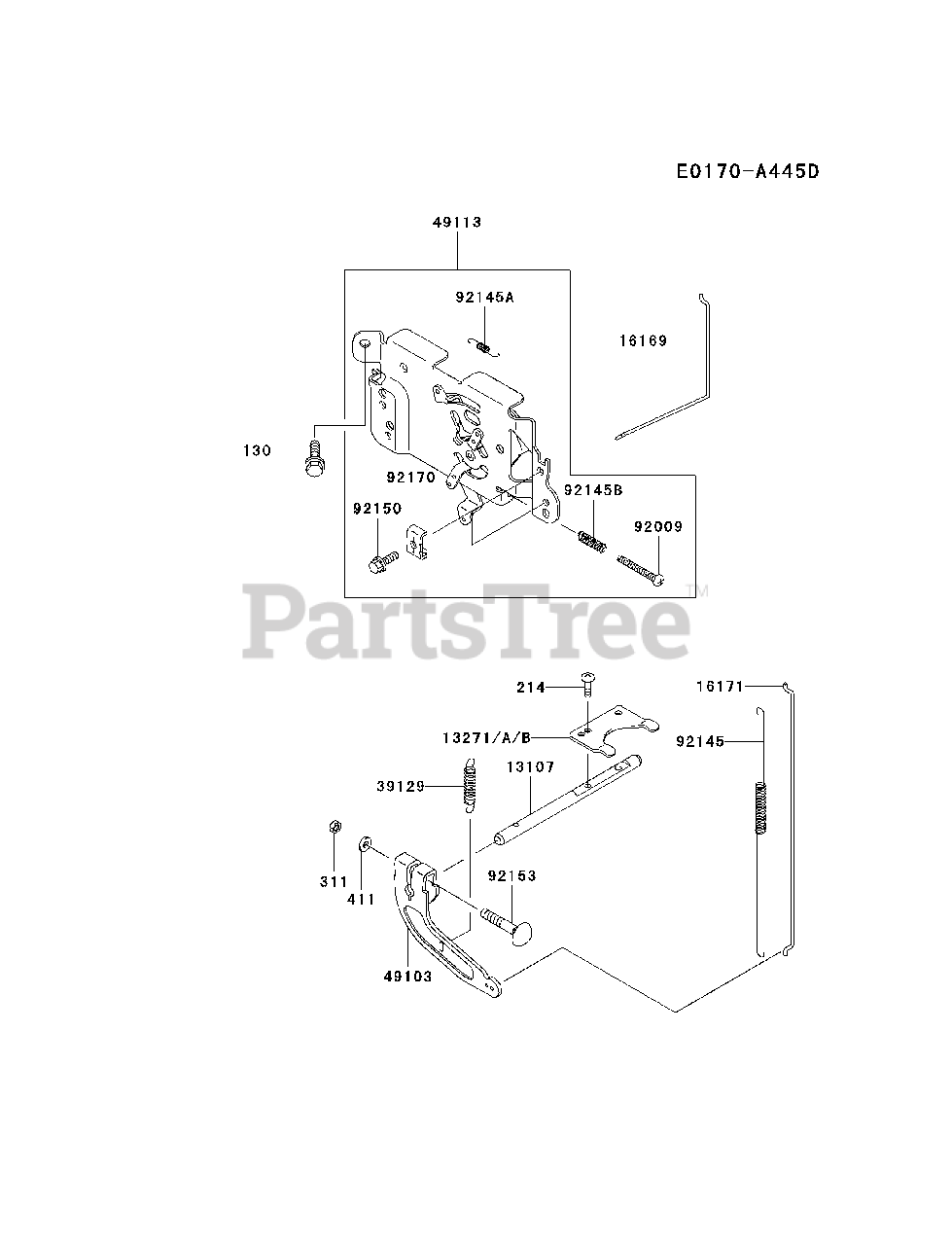

CONTROL-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 13107-7010

SHAFT
(Superseded to 13107-0750)

$12.99

$

In Stock, Qty 5

0

13271

Kawasaki 13271-7018

PLATE
(Superseded to 13271-7032)

$3.99

$

In Stock, Qty 6

0

13271B

Kawasaki 13271-7032

PLATE
(Superseded to 13271-7018)

$3.99

$

In Stock, Qty 6

0

16169

Kawasaki 16169-7010

LINK-CHOKE
(Superseded to 16169-0010)

$2.49

$

In Stock, Qty 11

0

16171

Kawasaki 16171-7001

LINK
(Superseded to 16171-0039)

$4.49

$

In Stock, Qty 8

0

39129

Kawasaki 39129-7003

SPRING-GOVERNOR
(Superseded to 39129-7002)

$4.99

$

In Stock, Qty 20+

0

49103

Kawasaki 49103-7004

ARM-GOVERNOR
(Superseded to 49103-7002)

$7.99

$

In Stock, Qty 12

0

49113

Kawasaki 49113-7011

PANEL-COMP-CONTROL
(Superseded to 49113-7052)

$32.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-7007

SCREW,4X35

$0.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7003

SPRING

$2.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7004

SPRING
(Superseded to 92145-7032)

$0.99

$

In Stock, Qty 20+

0

92145B

Kawasaki 92145-7005

SPRING

$0.99

$

In Stock, Qty 12

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7033

BOLT,6X35

$

$

Not available

92170

Kawasaki 92170-7001

CLAMP

$2.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0408

SCREW-PAN+-,4X8
(Superseded to 214AA0408)

$3.99

$

In Stock, Qty 15

0

311

Kawasaki 311B0600

NUT-HEX,6MM
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

411

Kawasaki 411B0600

WASHER-PLAIN,6MM
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0
