FH580V-CS17 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

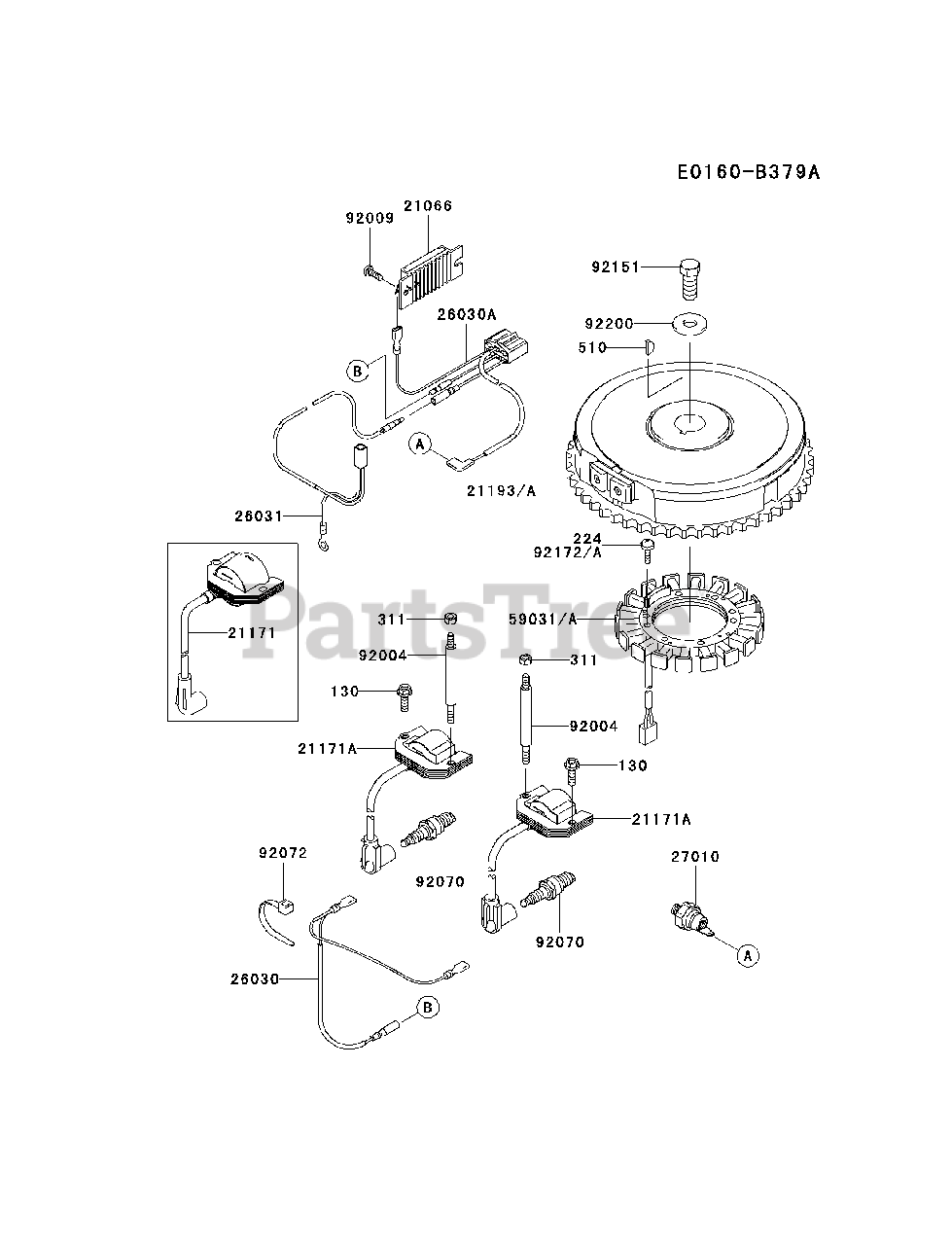

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-7034

COIL-ASSY-IGNITION
(Superseded to 21171-7003)

$81.99

$

In Stock, Qty 20+

0

21193A

Kawasaki 21193-7032

FLYWHEEL-ASSY
(Superseded to 21193-7047)

$293.99

$

In Stock, only 1 left!

0

26030

Kawasaki 26030-7001

HARNESS

$10.99

$

In Stock, Qty 8

0

26030A

Kawasaki 26030-7006

HARNESS
(Superseded to 26031-1630)

$9.99

$

In Stock, only 1 left!

0

26031

Kawasaki 26031-7012

HARNESS
(Superseded to 26031-7002)

$7.99

$

In Stock, Qty 7

0

27010

Kawasaki 27010-7002

SWITCH
(Superseded to 27010-0818)

$23.99

$

In Stock, Qty 6

0

59031A

Kawasaki 59031-7014

COIL-CHARGING
(Superseded to 59031-7009)

$128.99

$

In Stock, Qty 18

0

92004

Kawasaki 92004-7009

STUD
(Superseded to 92004-7026)

$4.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7003

PLUG-SPARK,RCJ8Y,SOLID

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
