FH580V-AS06 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

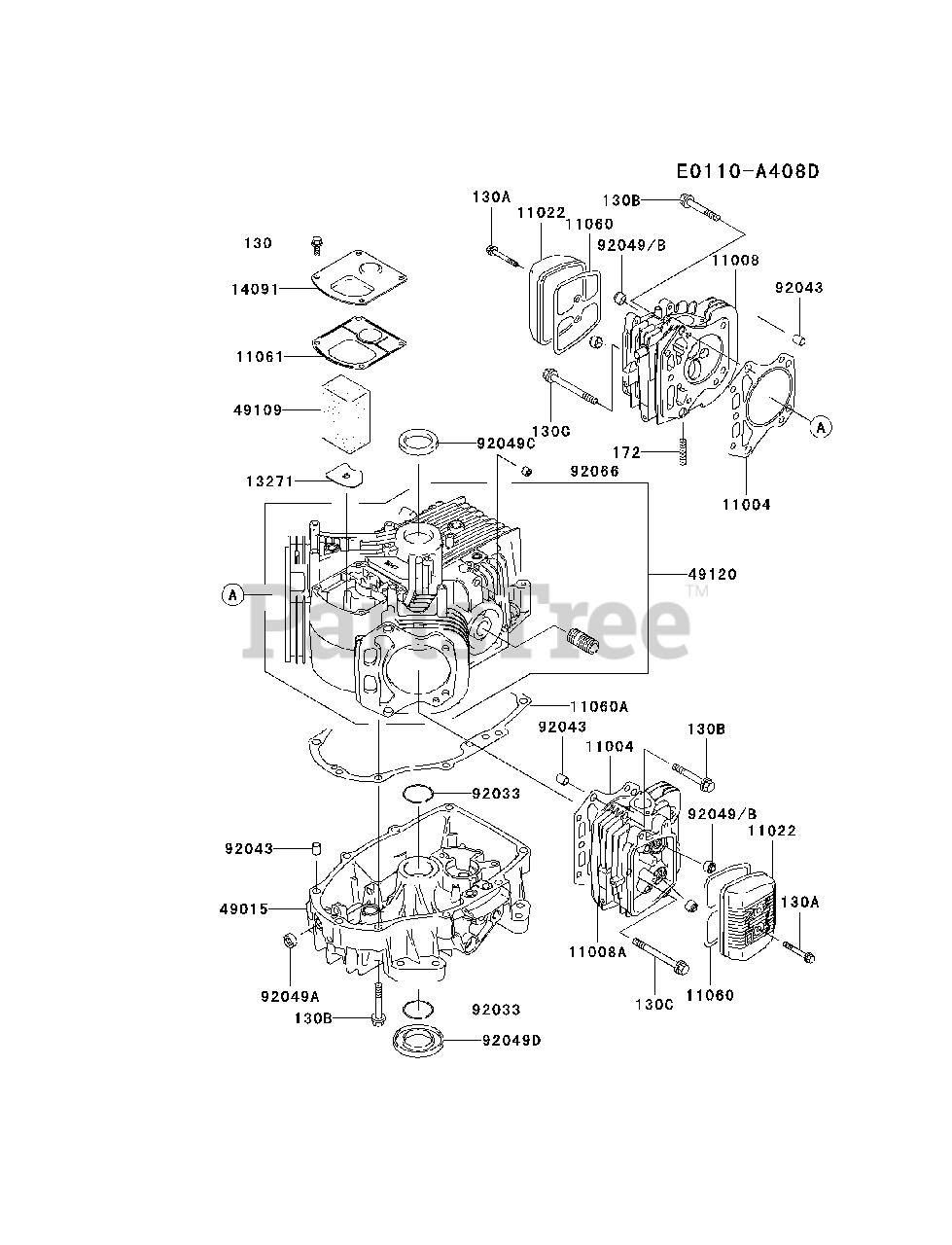

CYLINDER/CRANKCASE Parts Diagram

  • Title
11004

Kawasaki 11004-7010

GASKET-HEAD
(Superseded to 11004-7016)

$10.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-6042

HEAD-COMP-CYLINDER
(Superseded to 11008-6043)

$273.99

$

In Stock, Qty 9

0

11008A

Kawasaki 11008-7009

HEAD-COMP-CYLINDER
(Superseded to 11008-7020)

$273.99

$

In Stock, Qty 5

0

11022

Kawasaki 11022-7003

CASE-ROCKER
(Superseded to 11022-7018)

$14.99

$

In Stock, only 3 left!

0

11060

Kawasaki 11060-7001

GASKET,ROCKER CASE

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7008

GASKET,CRANKCASE COVER
(Superseded to 11060-7007)

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7001

GASKET,BREATHER
(Superseded to 99996-6104)

$18.99

$

In Stock, Qty 20+

0

13271

$2.49

$

In Stock, only 2 left!

0

14091

Kawasaki 14091-7006

COVER
(Superseded to 99996-6104)

$18.99

$

In Stock, Qty 20+

0

49015

Kawasaki 49015-6253

COVER-CRANKCASE
(Superseded to 49015-6226)

$180.99

$

Usually ships in 2-5 days

0

49109

Kawasaki 49109-7002

ELEMENT-BREATHER
(Superseded to 99996-6104)

$18.99

$

In Stock, Qty 20+

0

49120

Kawasaki 49120-7023

CRANKCASE-COMP
(Superseded to 49120-7113)

$552.99

$

Usually ships in 2-5 days

0

92033

$0.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7005

SEAL-OIL,SO 8X14X5 HS
(Superseded to 920497019)

$2.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7009

SEAL-OIL,6X11X10.4
(Superseded to 92049-7001)

$8.49

$

Usually ships in 2-5 days

0

92049C

Kawasaki 92049-7010

SEAL-OIL,SD 35X48X8 R HS

$3.49

$

In Stock, Qty 20+

0

92049D

Kawasaki 92049-7011

SEAL-OIL,SD 35X62X8 L HS

$5.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7002

PLUG
(Superseded to 92066-0881)

$4.49

$

In Stock, Qty 6

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0640

BOLT-FLANGED
(Superseded to 130AA0640)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130T0850

BOLT-FLANGED
(Superseded to 130CA0850)

$1.99

$

In Stock, Qty 16

0

130C

Kawasaki 130T0875

BOLT-FLANGED
(Superseded to 130CA0875)

$2.49

$

In Stock, Qty 9

0

172

Kawasaki 172G0818

BOLT-STUD
(Superseded to 172BA0818)

$1.99

$

In Stock, Qty 20+

0
