FH580V-AS05 - Kawasaki Engine Carburetor Parts Diagram

Engine

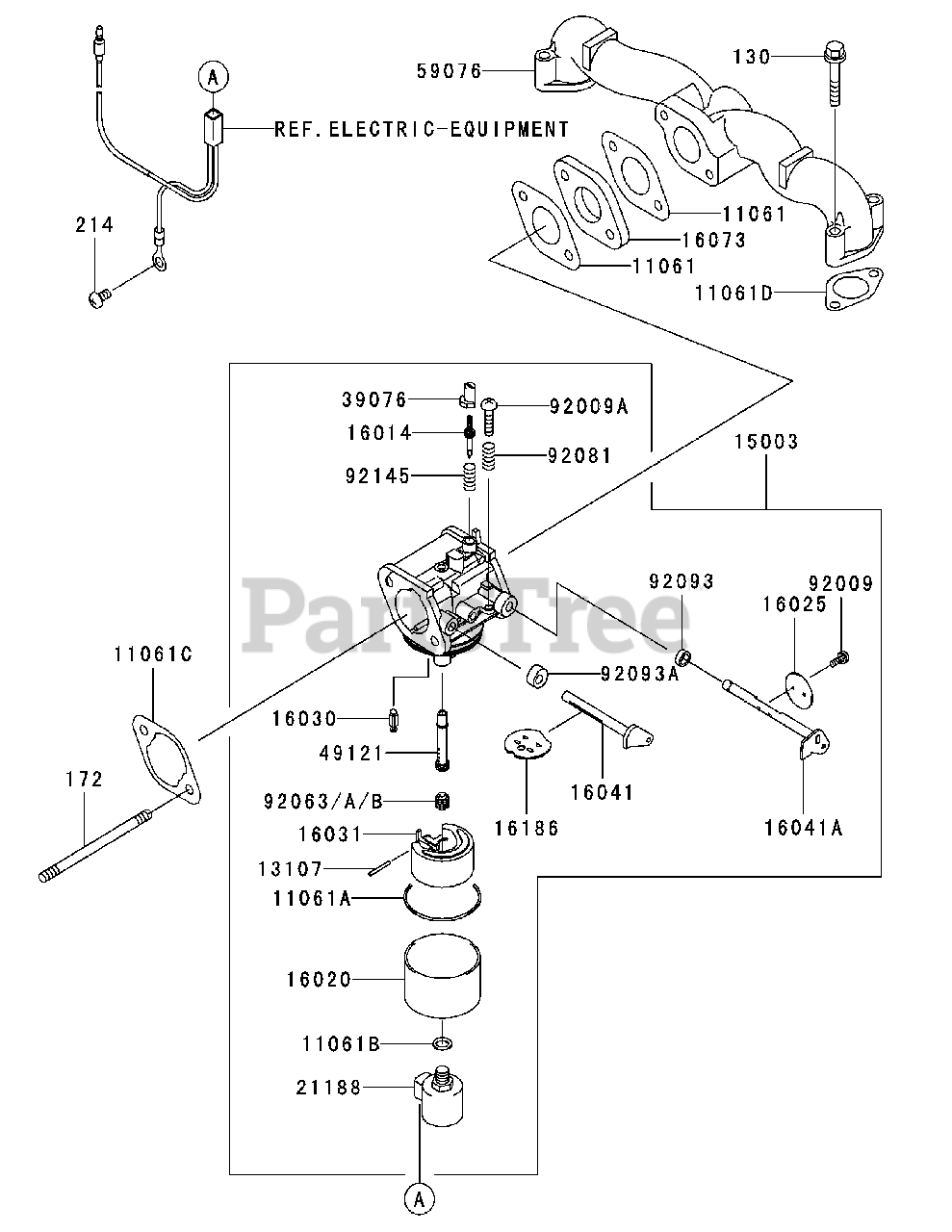

Carburetor Parts Diagram

  • Title
11061

Cub Cadet KM-11061-7004

Gasket, Insulator

$2.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7009

Gasket, Chamber

$2.99

$

In Stock, Qty 20+

0

11061B

$3.49

$

In Stock, Qty 20+

0

11061C

Cub Cadet KM-11061-7018

Gasket, Air Cleaner

$3.99

$

In Stock, Qty 20+

0

11061D

$2.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 11

0

15003

Cub Cadet KM-15003-7081

Carburetor-Assy

$361.99

$

Usually ships in 2-5 days

0

16014

Cub Cadet KM-16014-7004

Screw-Pilot Air
(Superseded to KM-16014-7005)

$14.99

$

In Stock, only 1 left!

0

16020

Cub Cadet KM-16020-7003

Chamber-Float

$14.99

$

In Stock, Qty 20+

0

16025

Cub Cadet KM-16025-7006

Valve-Throttle

$17.99

$

In Stock, Qty 5

0

16030

$20.99

$

In Stock, Qty 20+

0

$28.99

$

In Stock, Qty 20+

0

16041

Cub Cadet KM-16041-7016

Shaft-Carburetor, Choke

$15.99

$

In Stock, Qty 9

0

16041A

Cub Cadet KM-16041-7018

Shaft-Carburetor, Throttle

$22.99

$

In Stock, Qty 5

0

16073

Cub Cadet KM-16073-7007

Insulator
(Superseded to KM-16073-0876)

$4.49

$

In Stock, Qty 20+

0

16186

Cub Cadet KM-16186-7004

Valve-Assy-Choke

$13.99

$

Usually ships in 2-5 days

0

21188

$171.99

$

In Stock, Qty 19

0

39076

$8.49

$

In Stock, only 2 left!

0

49121

$34.99

$

Usually ships in 2-5 days

0

59076

Cub Cadet KM-59076-7001

Manifold-Intake
(Superseded to KM-59076-7017)

$

$

Not available

$2.49

$

In Stock, Qty 20+

0

$1.49

$

In Stock, only 3 left!

0

92063

Cub Cadet KM-92063-7037

Jet-Main,#105

$16.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7046

Jet-Main, #100,3280FT

Note: AR

$12.99

$

Usually ships in 2-5 days

0

92063B

Cub Cadet KM-92063-7047

Jet-Main, #098, 6560FT

Note: AR

$12.99

$

Usually ships in 2-5 days

0

$4.49

$

In Stock, only 4 left!

0

$3.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 11

0

$2.49

$

In Stock, Qty 9

0

130

Cub Cadet KM-130B0635

Bolt-Flanged
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

172

$2.99

$

Usually ships in 2-5 days

0

214

$

$

Not available
