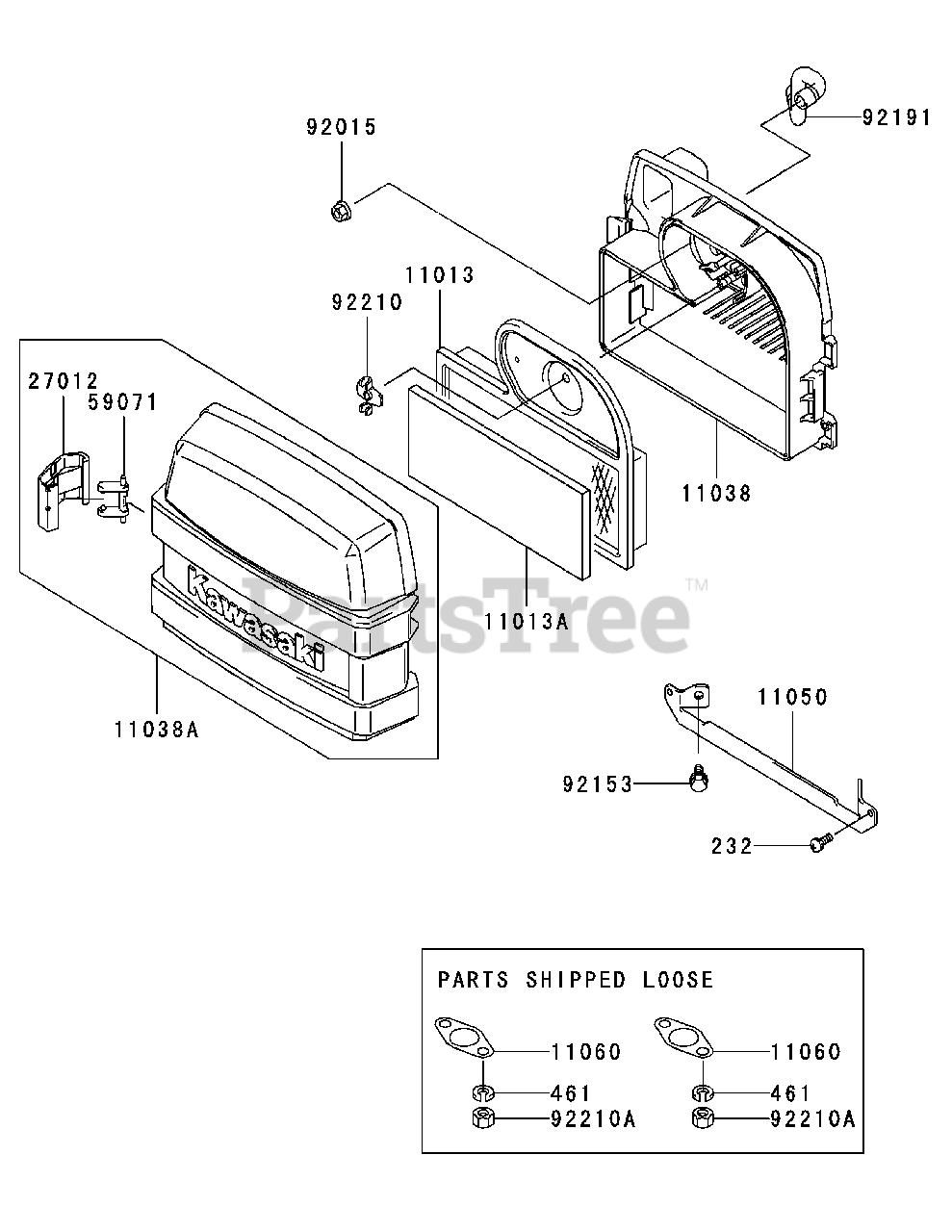

FH580V-AS05 - Kawasaki Engine Air-Filter & Muffler Parts Diagram

Engine

Air-Filter & Muffler Parts Diagram

  • Title

11013

Cub Cadet KM-11013-7002

Element-Air Filter

$21.99

$

In Stock, Qty 5

0

11013A

Cub Cadet KM-11013-7033

Element-Air Filter Precleaner

$5.99

$

In Stock, Qty 10

0

11038

Cub Cadet KM-11038-7006

Case-Assy-Air Filter

$70.99

$

Usually ships in 2-5 days

0

11038A

Cub Cadet KM-11038-7013

Case-Assy-Air Filter Cover

$67.99

$

In Stock, only 4 left!

0

11050

Cub Cadet KM-11050-7006

Bracket

$9.49

$

Usually ships in 2-5 days

0

11060

Cub Cadet KM-11060-7021

Gasket-Muffler

$2.49

$

In Stock, only 4 left!

0

27012

Cub Cadet KM-27012-7003

Hook

$1.99

$

In Stock, Qty 5

0

59071

Cub Cadet KM-59071-7017

Joint

$1.49

$

In Stock, only 3 left!

0

92015

Cub Cadet KM-92015-1193

Nut
(Superseded to KM-92015-1367)

$4.49

$

In Stock, only 2 left!

0

92153

Cub Cadet KM-92153-7043

Bolt, 6x12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92191

Cub Cadet KM-92191-7001

Tube

$

$

Not available

92210

Cub Cadet KM-92210-7004

Nut

$3.49

$

In Stock, Qty 13

0

92210A

Cub Cadet KM-92210-7027

Nut, M8

$1.99

$

In Stock, Qty 6

0

232

Cub Cadet KM-232B0514

Screw-Pan-WS
(Superseded to KM-232AA0514)

$0.99

$

In Stock, only 3 left!

0

461

Cub Cadet KM-461F0800

Washer-Spring
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0
