FH541V-ES28 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

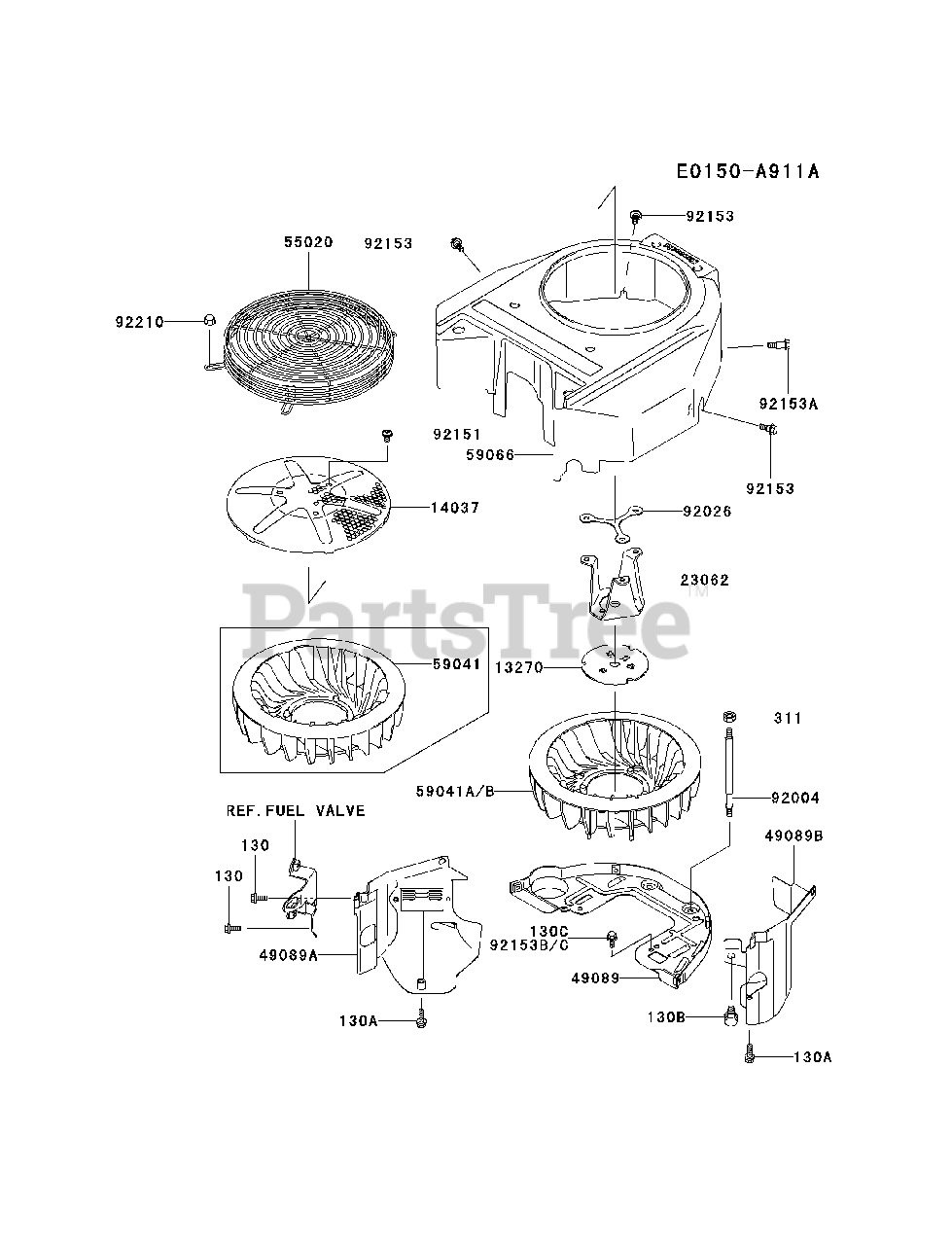

COOLING-EQUIPMENT Parts Diagram

  • Title

13270

Kawasaki 13270-7007

PLATE

$5.99

$

In Stock, Qty 20+

0

14037

Kawasaki 14037-7020-9H

SCREEN
(Superseded to 14037-7010)

$33.99

$

In Stock, Qty 13

0

23062

Kawasaki 23062-7010

BRACKET-COMP
(Superseded to 23062-7008)

$10.99

$

In Stock, Qty 5

0

49089

Kawasaki 49089-7032

SHROUD-ENGINE
(Superseded to 49089-7003)

$32.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7042

SHROUD-ENGINE

$32.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7043

SHROUD-ENGINE

$33.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-7004

GUARD
(Superseded to 55020-7001)

$32.99

$

In Stock, Qty 7

0

59041A

Kawasaki 59041-7012

FAN
(Superseded to 59041-0014)

$19.99

$

In Stock, Qty 20+

0

59066

Kawasaki 59066-7037

HOUSING-FAN
(Superseded to 59066-7024)

$

$

Not available

92004

Kawasaki 92004-7006

STUD
(Superseded to 92004-7025)

$6.99

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

BOLT

$

$

Not available

92153B

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92210

Kawasaki 92210-0003

NUT

$0.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA0616

BOLT-FLANGED,6X16
(Superseded to 130B0616)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0625

BOLT-FLANGED,6X25
(Superseded to 130B0625)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0
