FH541V-AS04 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

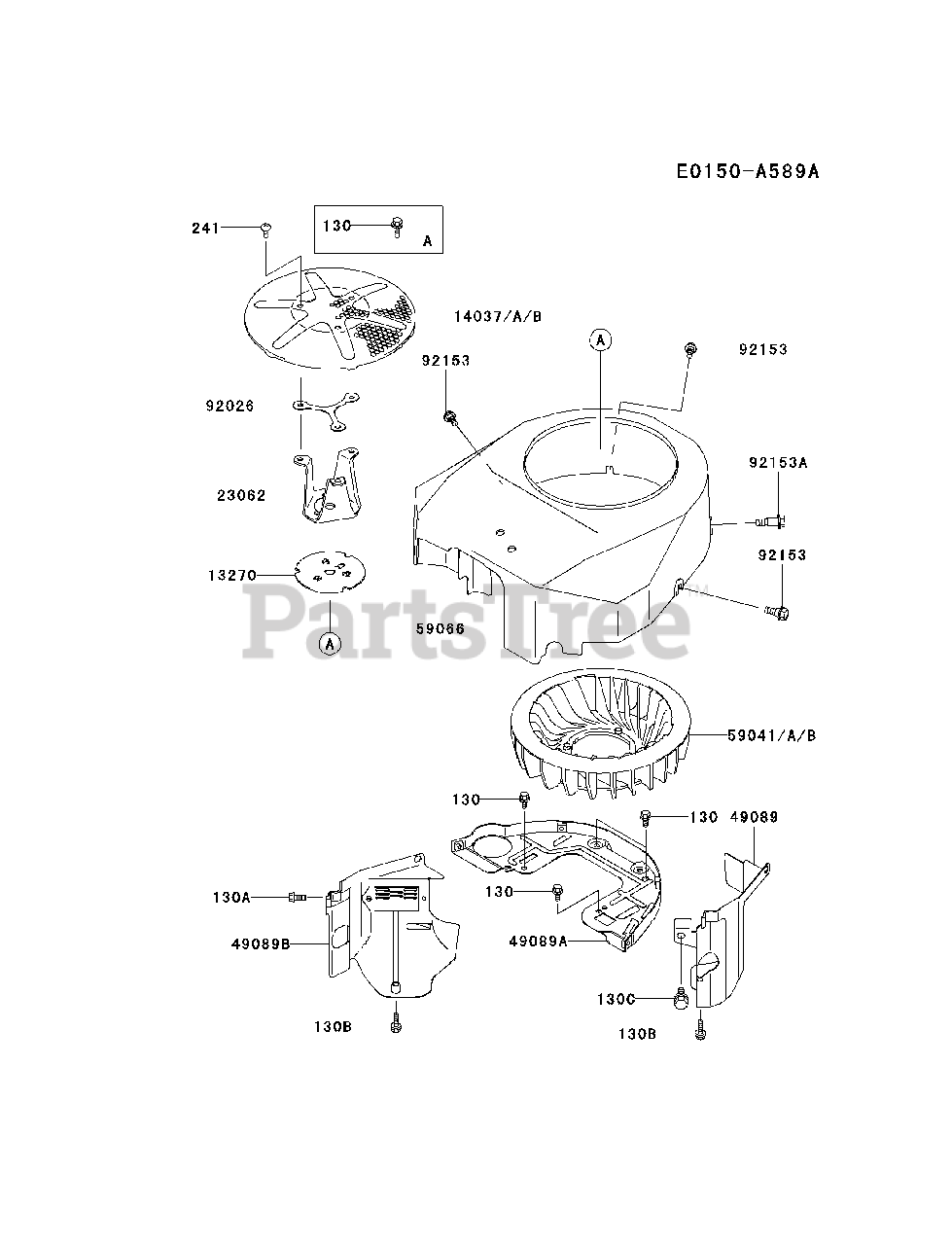

COOLING-EQUIPMENT Parts Diagram

  • Title

13270

Kawasaki 13270-7007

PLATE

$5.99

$

In Stock, Qty 20+

0

14037

Kawasaki 14037-7010

SCREEN
(Superseded to 14037-7020-9H)

$33.99

$

In Stock, Qty 13

0

14037B

Kawasaki 14037-7020-9H

SCREEN
(Superseded to 14037-7010)

$33.99

$

In Stock, Qty 13

0

23062

Kawasaki 23062-7010

BRACKET-COMP
(Superseded to 23062-7008)

$10.99

$

In Stock, Qty 5

0

49089

Kawasaki 49089-7002

SHROUD-ENGINE

$28.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7032

SHROUD-ENGINE
(Superseded to 49089-7003)

$32.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7034

SHROUD-ENGINE
(Superseded to 49089-7001)

$26.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-7001

FAN
(Superseded to 59041-0014)

$19.99

$

In Stock, Qty 20+

0

59041B

Kawasaki 59041-7010

FAN
(Superseded to 59041-0014)

$19.99

$

In Stock, Qty 20+

0

59066

Kawasaki 59066-7011

HOUSING-FAN
(Superseded to 59066-7001)

$

$

Not available

92026

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

BOLT

$

$

Not available

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

BOLT-FLANGED
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0625

BOLT-FLANGED
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0816

BOLT-FLANGED
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0
