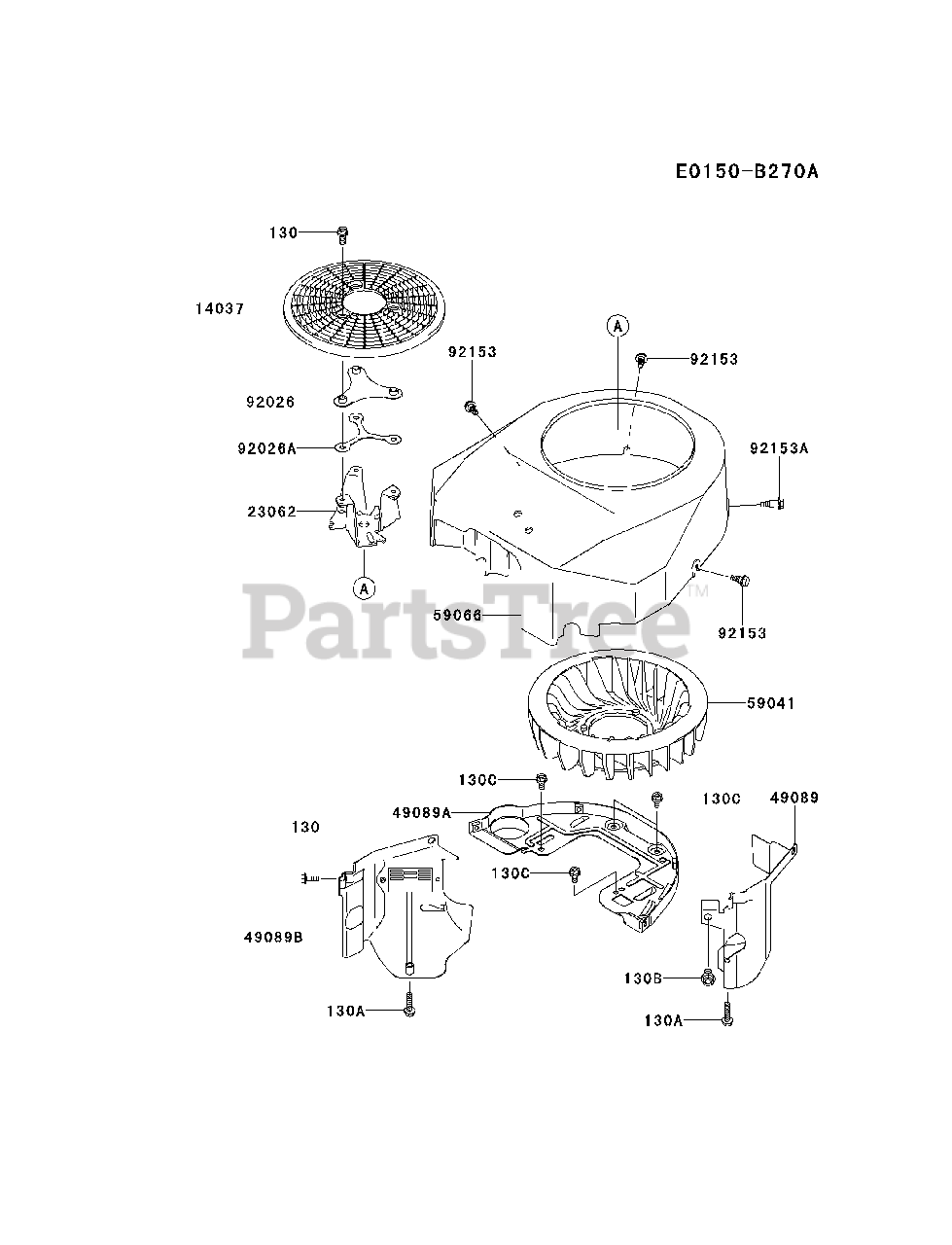

FH531V-BS09 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title

14037

Kawasaki 14037-7001

SCREEN

$27.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-7002

BRACKET-COMP

$10.99

$

Usually ships in 2-5 days

0

49089

Kawasaki 49089-7002

SHROUD-ENGINE

$28.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7033

SHROUD-ENGINE
(Superseded to 49089-7007)

$31.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7034

SHROUD-ENGINE
(Superseded to 49089-7001)

$26.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-7010

FAN
(Superseded to 59041-0014)

$19.99

$

In Stock, Qty 20+

0

59066

Kawasaki 59066-7011

HOUSING-FAN
(Superseded to 59066-7001)

$

$

Not available

92026

Kawasaki 92026-7002

SPACER

$6.49

$

Usually ships in 2-5 days

0

92026A

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

BOLT

$

$

Not available

130

Kawasaki 130AA0616

BOLT-FLANGED,6X16
(Superseded to 130B0616)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0625

BOLT-FLANGED,6X25
(Superseded to 130B0625)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0
