FH500V-AS23 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

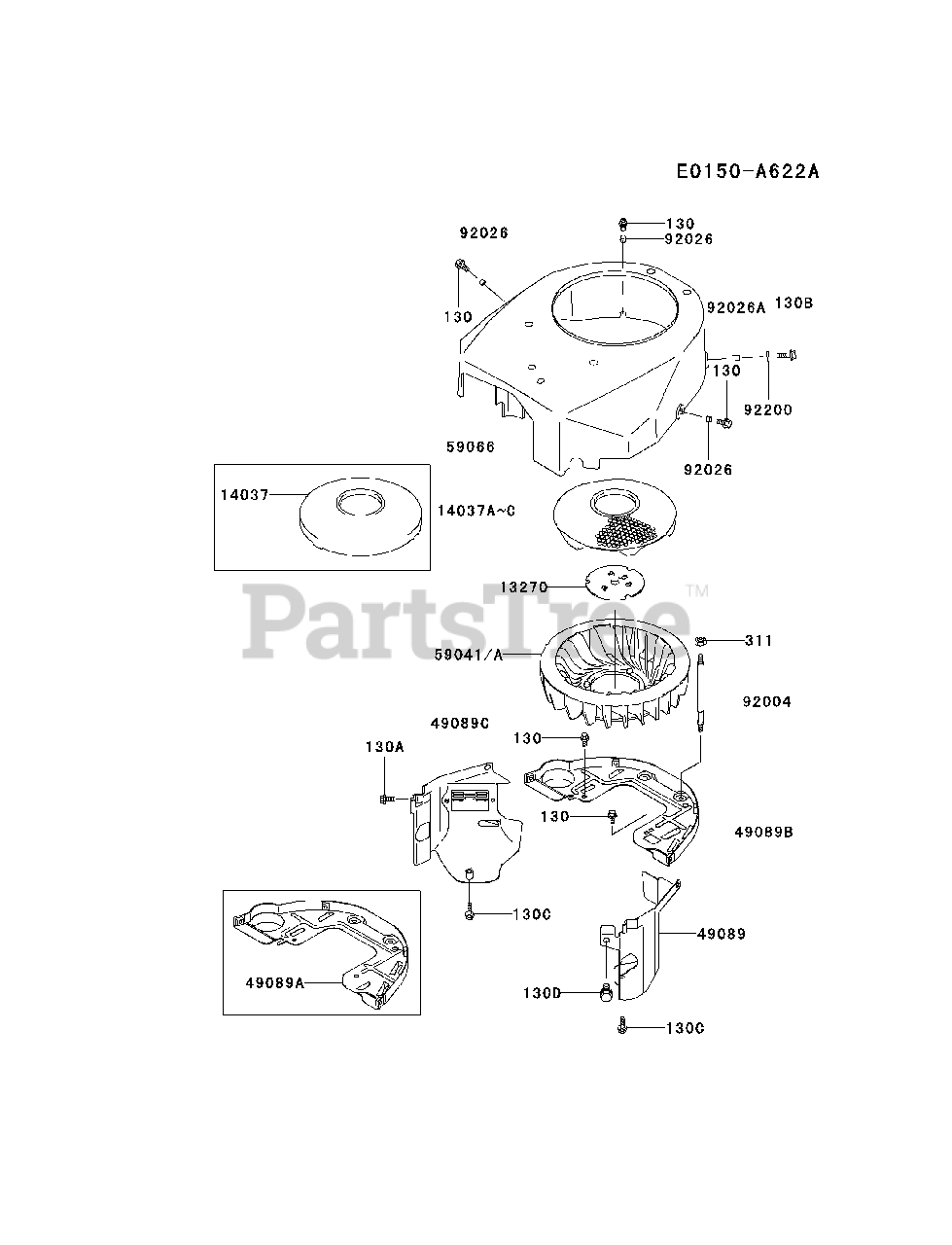

COOLING-EQUIPMENT Parts Diagram

  • Title

13270

Kawasaki 13270-7007

PLATE

$5.99

$

In Stock, Qty 20+

0

14037

Kawasaki 14037-7006-9H

SCREEN
(Superseded to 14037-7015-9H)

$35.99

$

In Stock, Qty 9

0

14037A

Kawasaki 14037-7015-9H

SCREEN
(Superseded to 14037-7025-9H)

$35.99

$

In Stock, Qty 9

0

14037B

Kawasaki 14037-7021-9H

SCREEN
(Superseded to 14037-7025-9H)

$35.99

$

In Stock, Qty 9

0

14037C

Kawasaki 14037-7025-9H

SCREEN
(Superseded to 14037-7025)

$35.99

$

In Stock, Qty 9

0

49089

Kawasaki 49089-7002

SHROUD-ENGINE

$28.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7003

SHROUD-ENGINE
(Superseded to 49089-7032)

$32.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7032

SHROUD-ENGINE
(Superseded to 49089-7003)

$32.99

$

In Stock, only 1 left!

0

49089C

Kawasaki 49089-7034

SHROUD-ENGINE
(Superseded to 49089-7001)

$26.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-7001

FAN
(Superseded to 59041-0014)

$19.99

$

In Stock, Qty 20+

0

59041A

Kawasaki 59041-7010

FAN
(Superseded to 59041-0014)

$19.99

$

In Stock, Qty 20+

0

59066

Kawasaki 59066-7002

HOUSING-FAN

$

$

Not available

92004

Kawasaki 92004-7006

STUD
(Superseded to 92004-7025)

$6.99

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7001

SPACER,6.2X7.9X5
(Superseded to 92153-7007)

$4.49

$

In Stock, Qty 20+

0

92026A

Kawasaki 92026-7003

SPACER,6.5X7.9X10.5

$

$

Not available

92200

Kawasaki 92200-2078

WASHER,6.5X18X2.0

$

$

Not available

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

BOLT-FLANGED
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0620

BOLT-FLANGED
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0625

BOLT-FLANGED
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 20+

0

130D

Kawasaki 130B0816

BOLT-FLANGED
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0
