FH500V-AS19 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

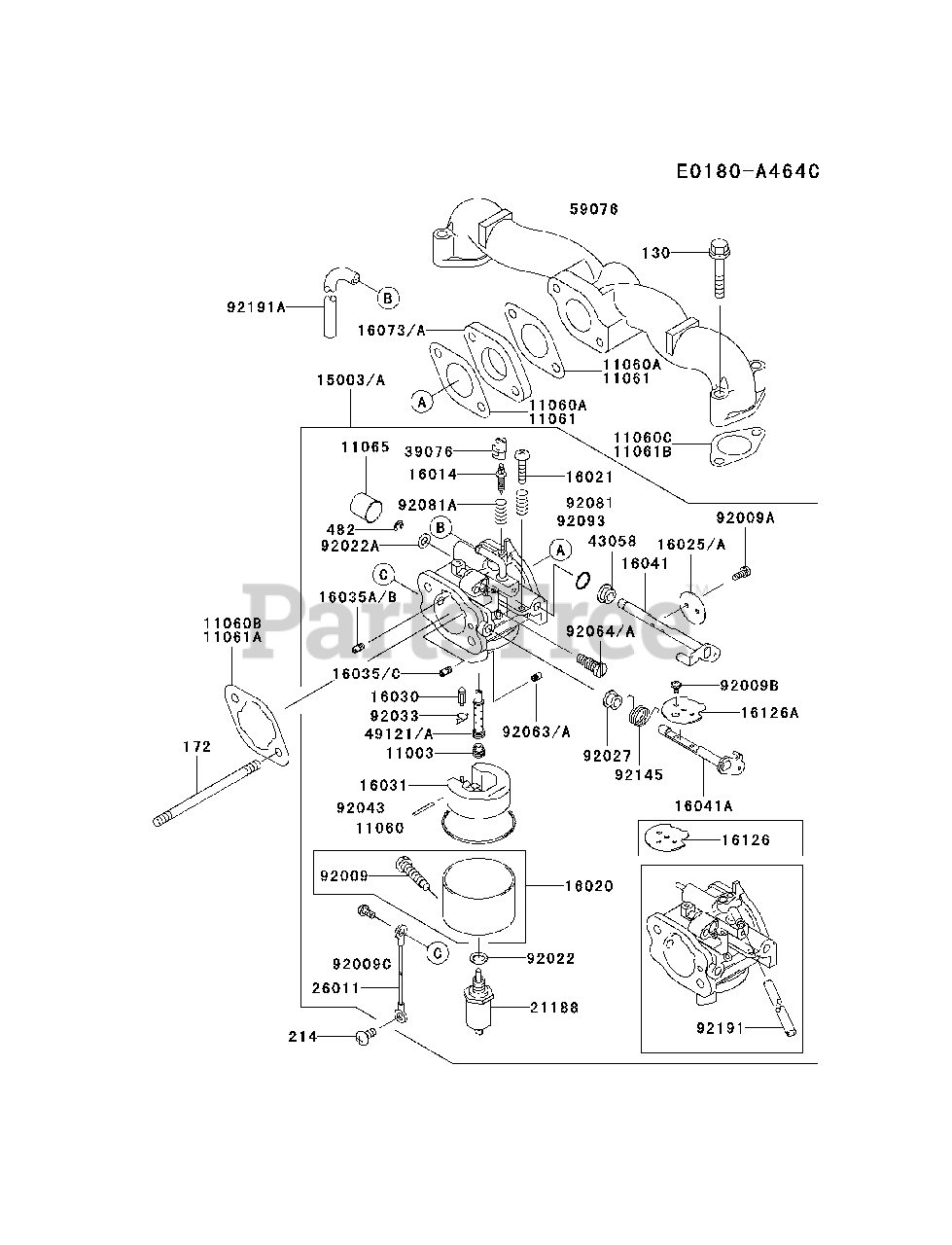

CARBURETOR Parts Diagram

  • Title

39076

Kawasaki 39076-2053

LIMITER

$6.99

$

In Stock, only 1 left!

0

43058

Kawasaki 43058-3716

RING

$3.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2222

NOZZLE-MAIN,#113A

$32.99

$

Usually ships in 2-5 days

0

49121A

Kawasaki 49121-2231

NOZZLE-MAIN,#112B

$34.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-7001

MANIFOLD-INTAKE
(Superseded to 59076-7017)

$

$

Not available

92009

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2024

SCREW
(Superseded to 92009-2378)

$1.99

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2081

SCREW
(Superseded to 92009-2026)

$1.99

$

In Stock, only 1 left!

0

92009C

Kawasaki 92009-2400

SCREW

$1.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2231

WASHER

$1.99

$

In Stock, Qty 13

0

92022A

Kawasaki 92022-2239

WASHER

$1.49

$

Usually ships in 2-5 days

0

92027

Kawasaki 92027-2025

COLLAR

$3.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2067

RING-SNAP

$5.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-2226

PIN

$7.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2358

JET-MAIN,#125

$10.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-2380

JET-MAIN,#106.3

$10.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2125

JET-PILOT,#48.8

$11.99

$

In Stock, only 3 left!

0

92064A

Kawasaki 92064-2127

JET-PILOT,#42.5

$12.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2009

SPRING

$3.49

$

In Stock, only 3 left!

0

92081A

Kawasaki 92081-2256

SPRING

$7.99

$

In Stock, only 1 left!

0

92093

Kawasaki 92093-2002

SEAL

$1.99

$

In Stock, Qty 5

0

92145

Kawasaki 92145-2061

SPRING

$2.99

$

In Stock, only 2 left!

0

92191

Kawasaki 92191-7008

TUBE,3.5X6.5X120

$

$

Not available

92191A

Kawasaki 92191-7016

TUBE,4.76X7.94X225

$1.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0635

BOLT-FLANGED
(Superseded to 130AA0635)

$1.99

$

In Stock, Qty 12

0

172

Kawasaki 172G0685

BOLT-STUD
(Superseded to 172BA0685)

$2.99

$

Usually ships in 2-5 days

0

214

Kawasaki 214B0510

SCREW-PAN+-
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0

482

Kawasaki 482L4000

CIRCLIP-TYPE-E
(Superseded to 482EA4000)

$0.99

$

In Stock, Qty 10

0
