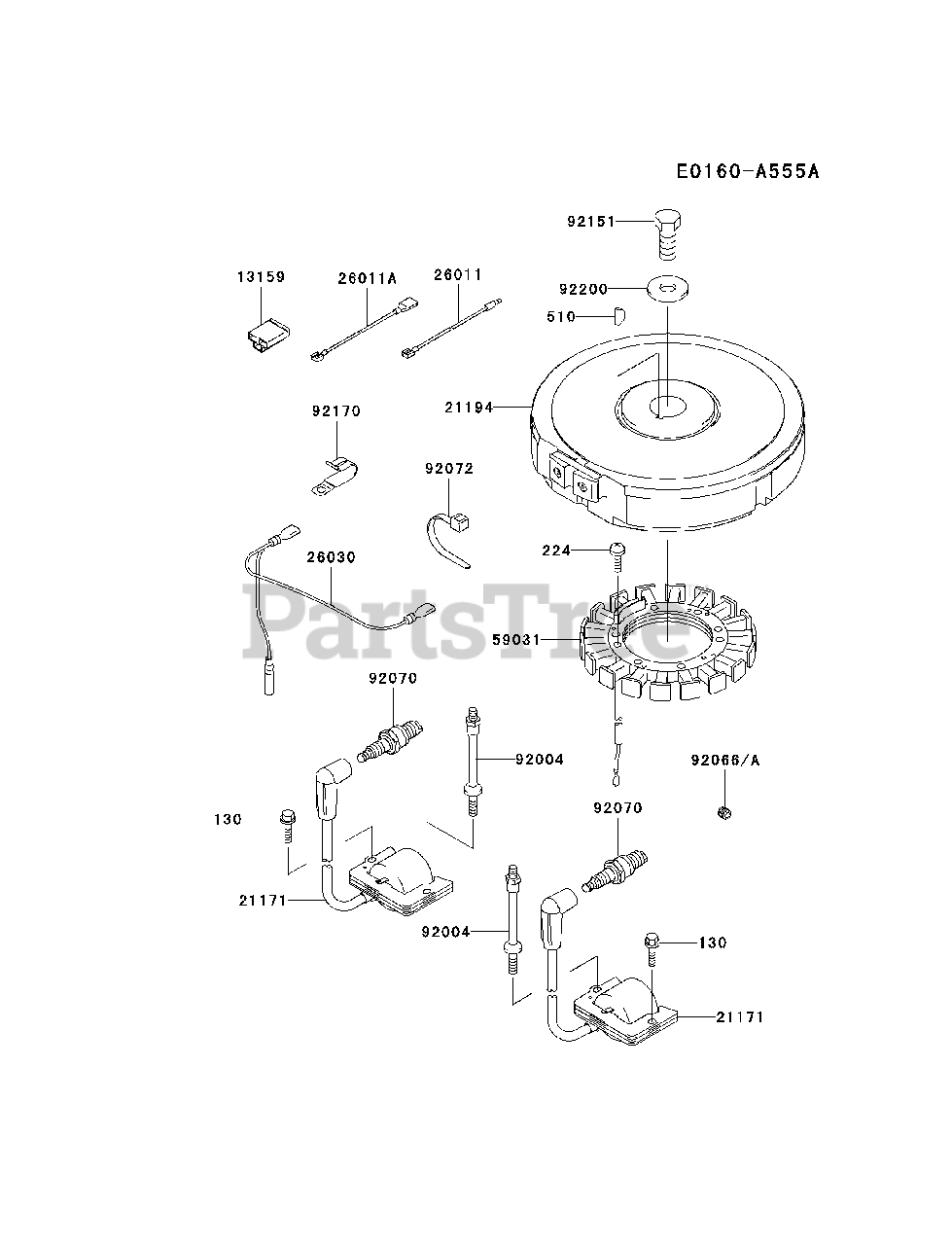

FH500V-AS09 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

13159

Kawasaki 13159-7001

CONNECTOR

$1.49

$

In Stock, Qty 7

0

21171

Kawasaki 21171-7001

COIL-ASSY-IGNITION
(Superseded to 21171-7007)

$81.99

$

In Stock, Qty 6

0

21194

Kawasaki 21194-7001

FLYWHEEL-COMP
(Superseded to 21194-7007)

$190.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-7002

WIRE-LEAD

$2.99

$

In Stock, only 1 left!

0

26011A

Kawasaki 26011-7005

WIRE-LEAD

$2.99

$

Usually ships in 2-5 days

0

26030

Kawasaki 26030-7001

HARNESS

$10.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7002

COIL-CHARGING
(Superseded to 59031-7011)

$71.99

$

In Stock, only 3 left!

0

92004

Kawasaki 92004-2147

STUD
(Superseded to 92004-7009)

$4.99

$

In Stock, only 2 left!

0

92066A

Kawasaki 92066-7002

PLUG
(Superseded to 92066-0881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7001

PLUG-SPARK,RCJ8Y,SOLID
(Superseded to 92070-7003)

Note: CHAMP

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7001

BAND
(Superseded to 92072-7003)

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2081

CLAMP
(Superseded to 92171-7008)

$1.99

$

In Stock, Qty 5

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130B0620

BOLT-FLANGED
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN-WP-CROS
(Superseded to 224AA0520)

$0.99

$

In Stock, Qty 11

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
