FH480V-CS20 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

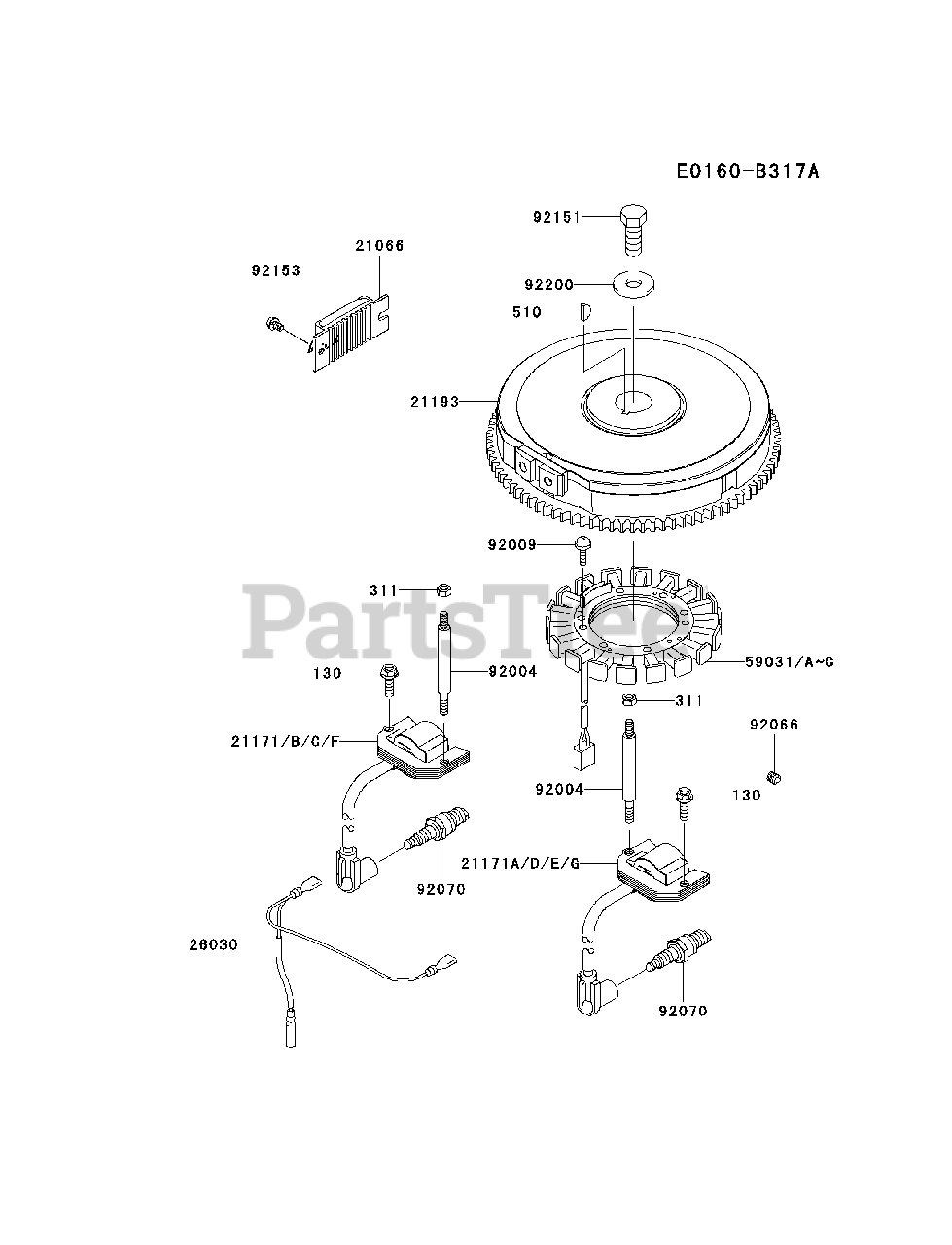

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 20+

0

21171B

Kawasaki 21171-7034

COIL-ASSY-IGNITION
(Superseded to 21171-7003)

$81.99

$

In Stock, Qty 20+

0

21171D

Kawasaki 21171-7035

COIL-ASSY-IGNITION
(Superseded to 21171-7005)

$54.99

$

In Stock, Qty 15

0

21193

Kawasaki 21193-7016

FLYWHEEL-ASSY
(Superseded to 21193-0024)

$

$

Not available

26030

Kawasaki 26030-7001

HARNESS

$10.99

$

In Stock, Qty 11

0

59031A

Kawasaki 59031-7009

COIL-CHARGING
(Superseded to 59031-7001)

$128.99

$

In Stock, Qty 18

0

59031C

Kawasaki 59031-7014

COIL-CHARGING
(Superseded to 59031-7009)

$128.99

$

In Stock, Qty 18

0

92004

Kawasaki 92004-7008

STUD

$5.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2249

SCREW,5X20
(Superseded to 92172-2128)

$0.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7003

PLUG-SPARK,RCJ8Y,SOLID

$4.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 19

0

92153

Kawasaki 92153-7029

BOLT

$1.49

$

In Stock, Qty 12

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

311

Kawasaki 311AB0600

NUT-HEX,6MM
(Superseded to 311C0600)

$0.99

$

In Stock, Qty 12

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
