FH480V-AS23 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

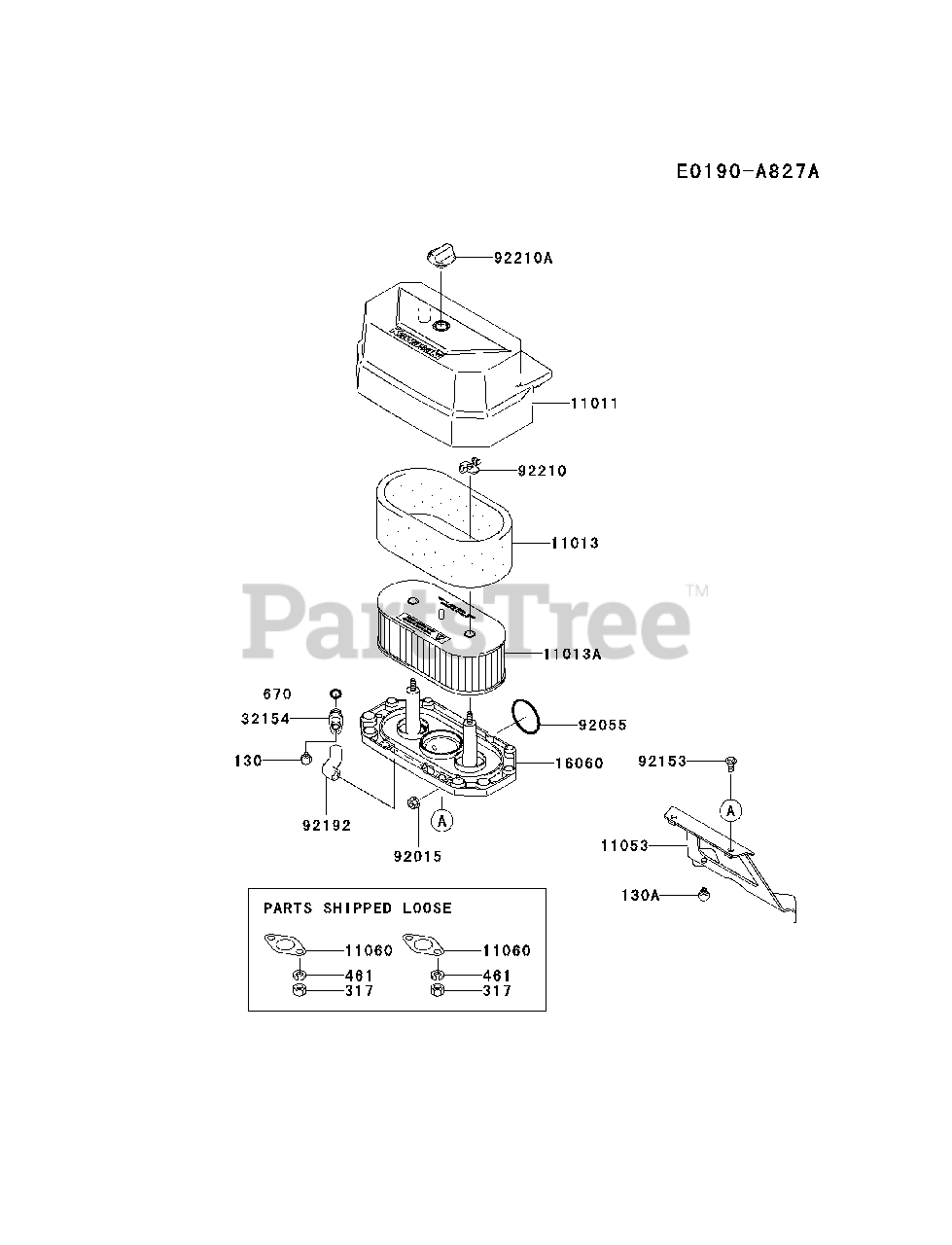

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7035

CASE-AIR FILTER
(Superseded to 11011-7045)

$22.99

$

In Stock, Qty 15

0

11013

Kawasaki 11013-7025

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7031

ELEMENT-AIR FILTER
(Superseded to 11013-7026)

$26.99

$

In Stock, Qty 20+

0

11053

Kawasaki 11053-7022

BRACKET

$36.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

16060

Kawasaki 16060-7016

PIPE-INTAKE
(Superseded to 16060-7013)

$22.99

$

Usually ships in 2-5 days

0

32154

Kawasaki 32154-7006

PIPE

$8.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92055

Kawasaki 92055-7015

RING-O

$1.49

$

In Stock, Qty 7

0

92153

Kawasaki 92153-7038

BOLT,6X10

$2.49

$

In Stock, only 3 left!

0

92192

Kawasaki 92192-7010

TUBE

$8.49

$

In Stock, Qty 6

0

92210

Kawasaki 92210-7004

NUT

$3.49

$

In Stock, Qty 20+

0

92210A

Kawasaki 92210-7019

NUT

$6.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0610

BOLT-FLANGED
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, Qty 10

0
