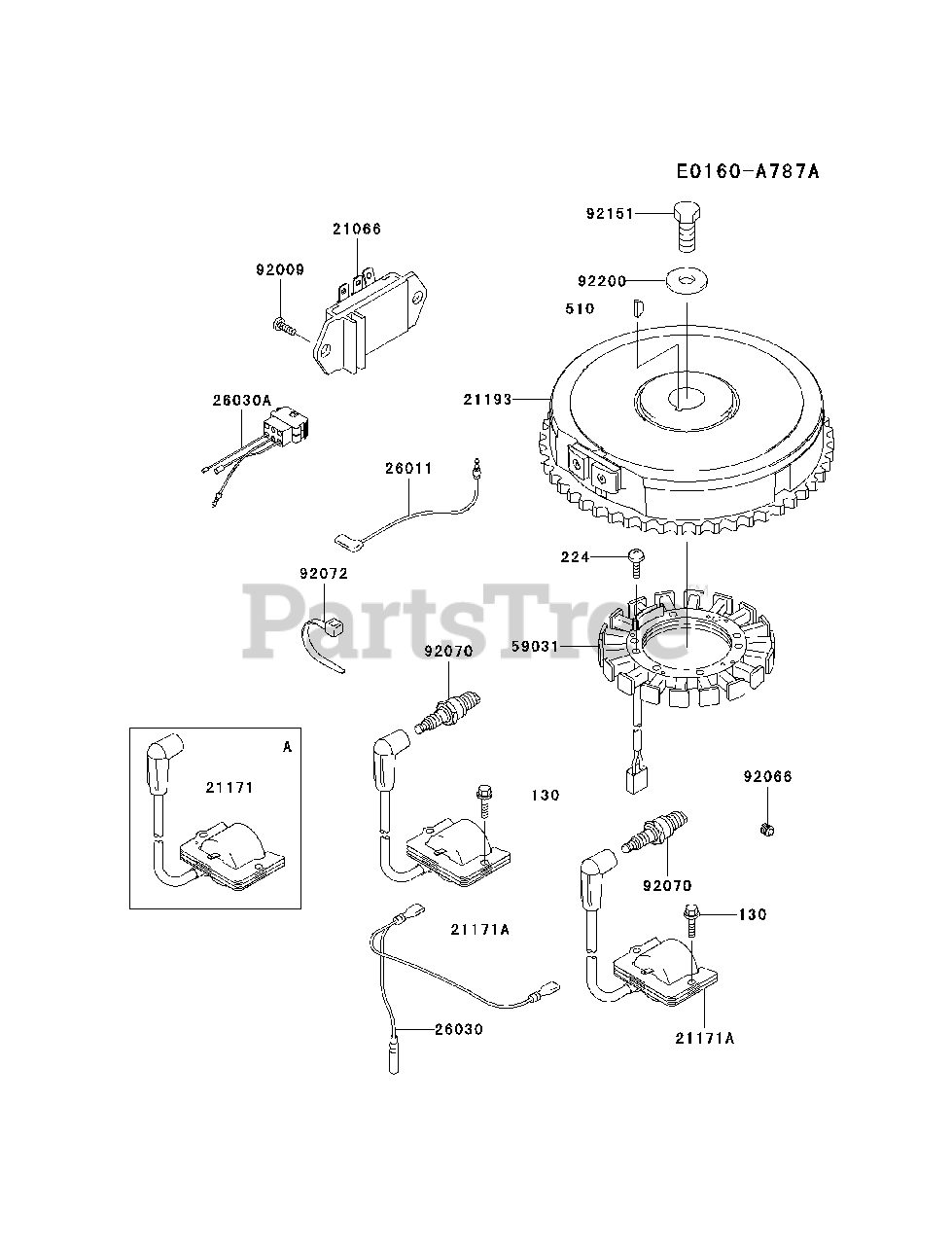

FH451V-BS15 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7001

REGULATOR-VOLTAGE
(Superseded to 21066-7011)

$77.99

$

In Stock, Qty 8

0

21171A

Kawasaki 21171-7006

COIL-ASSY-IGNITION
(Superseded to 21171-7007)

$81.99

$

In Stock, Qty 6

0

21193

Kawasaki 21193-7007

FLYWHEEL-ASSY
(Superseded to 21193-7032)

$293.99

$

In Stock, only 1 left!

0

26011

Kawasaki 26011-7001

WIRE-LEAD

$3.99

$

In Stock, Qty 10

0

26030

Kawasaki 26030-7001

HARNESS

$10.99

$

In Stock, only 1 left!

0

26030A

Kawasaki 26030-7008

HARNESS
(Superseded to 26031-1624)

$22.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7001

COIL-CHARGING
(Superseded to 59031-7009)

$128.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Kawasaki 92066-7002

PLUG
(Superseded to 92066-0881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7003

PLUG-SPARK,RCJ8Y,SOLID

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130B0620

BOLT-FLANGED
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN-WP-CROS
(Superseded to 224AA0520)

$0.99

$

In Stock, Qty 11

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
