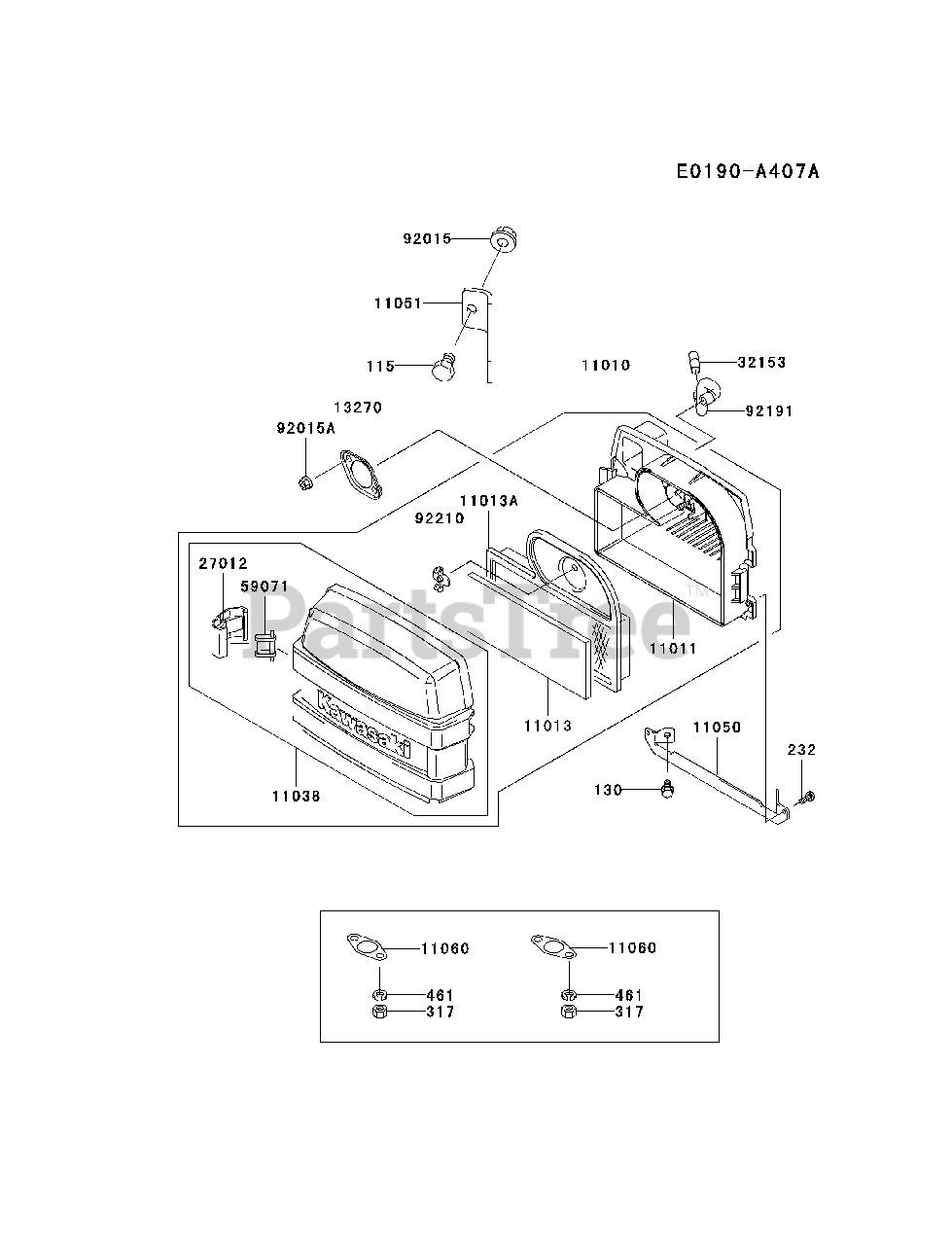

FH451V-AS05 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7001

FILTER-ASSY-AIR
(Superseded to 11010-7007)

$72.99

$

In Stock, only 2 left!

0

11011

Kawasaki 11011-7001

CASE-AIR FILTER
(Superseded to 11038-7003)

$70.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-7001

ELEMENT-AIR FILTER
(Superseded to 11013-7033)

$5.99

$

In Stock, Qty 10

0

11013A

Kawasaki 11013-7002

ELEMENT-AIR FILTER

$21.99

$

In Stock, Qty 5

0

11038

Kawasaki 11038-7001

CASE-ASSY-AIR FILTER
(Superseded to 11038-7011)

$67.99

$

In Stock, only 4 left!

0

11050

Kawasaki 11050-7006

BRACKET

$9.49

$

Usually ships in 2-5 days

0

11051

Kawasaki 11051-7006-9H

BRACKET
(Superseded to 11053-7023-9H)

$

$

Not available

11060

Kawasaki 11060-7021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, only 4 left!

0

13270

Kawasaki 13270-7001

PLATE

$5.49

$

In Stock, only 2 left!

0

27012

Kawasaki 27012-7001

HOOK,AIR FILTER
(Superseded to 27012-6003)

$2.99

$

In Stock, Qty 20+

0

32153

Kawasaki 32153-7001

PIPE

$5.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-7001

JOINT
(Superseded to 27012-6003)

$2.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1143

NUT

$0.99

$

In Stock, Qty 10

0

92015A

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92191

Kawasaki 92191-7001

TUBE

$

$

Not available

92210

Kawasaki 92210-7004

NUT

$3.49

$

In Stock, Qty 14

0

115

Kawasaki 115B0814

BOLT-SMALL-UPSET
(Superseded to 115AA0814)

$0.99

$

In Stock, Qty 7

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 18

0

232

Kawasaki 232B0514

SCREW-PAN-WS+-
(Superseded to 232AA0514)

$0.99

$

In Stock, only 3 left!

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
