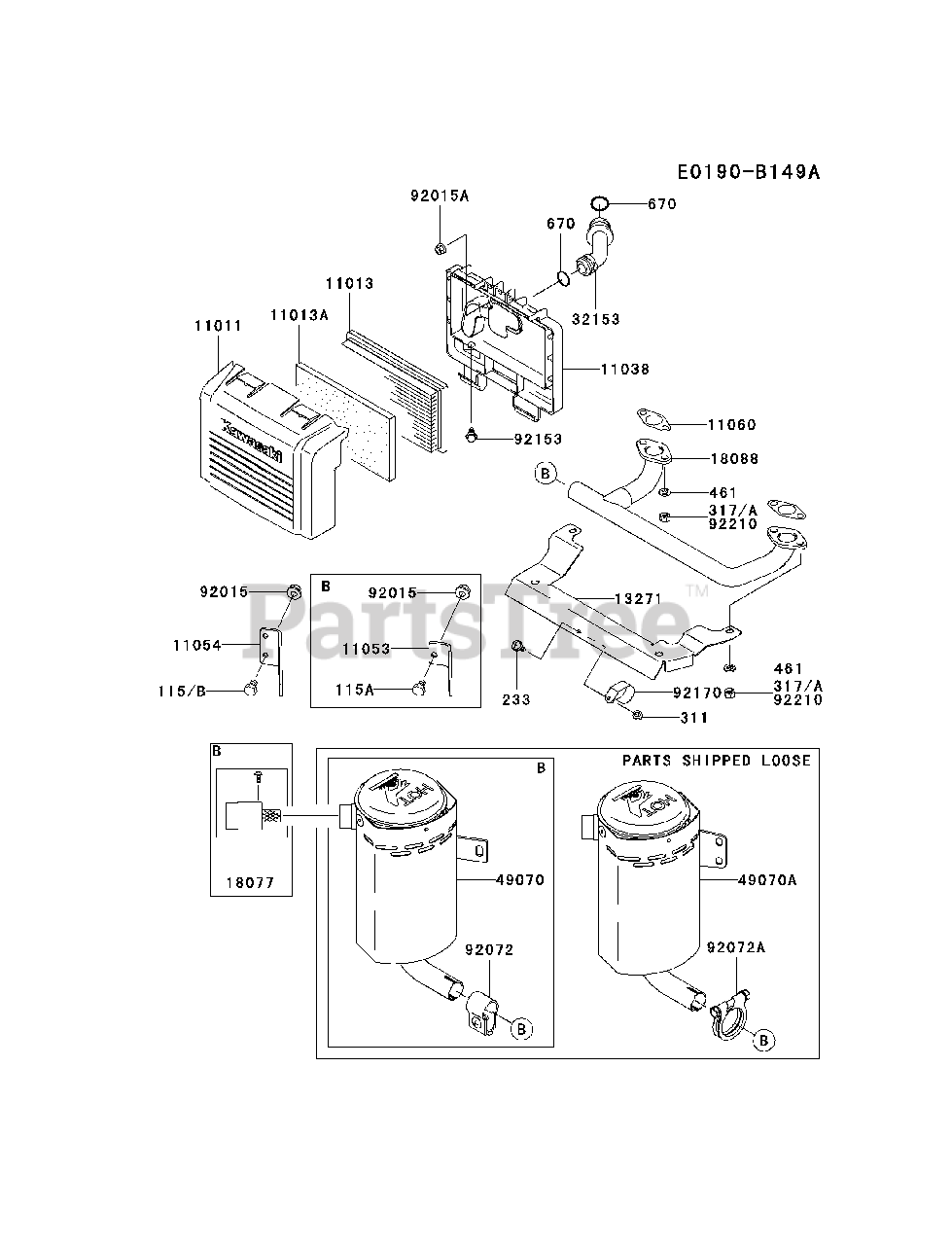

FH430V-CS05 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7012

CASE-AIR FILTER,UPPER
(Superseded to 11011-7009)

$32.99

$

In Stock, Qty 10

0

11013

Kawasaki 11013-7017

ELEMENT-AIR FILTER

$18.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7034

ELEMENT-AIR FILTER
(Superseded to 11013-7016)

$7.49

$

In Stock, Qty 20+

0

11038

Kawasaki 11038-7010

CASE-ASSY-AIR FILTER,LOWER
(Superseded to 11038-7005)

$58.99

$

In Stock, only 1 left!

0

11054

Kawasaki 11054-7004-9H

BRACKET

$14.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7023

PLATE

$7.99

$

Usually ships in 2-5 days

0

18088

Kawasaki 18088-7002

PIPE-EXHAUST

$

$

Not available

32153

Kawasaki 32153-7008

PIPE,BREATHER
(Superseded to 32153-7007)

$2.99

$

Usually ships in 2-5 days

0

49070A

Kawasaki 49070-7024

MUFFLER-COMP

$149.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1143

NUT

$0.99

$

In Stock, Qty 10

0

92015A

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92072A

Kawasaki 92072-7012

BAND

$14.99

$

In Stock, Qty 9

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-7002

CLAMP

$3.99

$

In Stock, only 2 left!

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

115

Kawasaki 115AA0814

BOLT-SMALL-UPSET,8X14
(Superseded to 92001-036)

$0.99

$

In Stock, Qty 7

0

115B

Kawasaki 115B0814

BOLT-SMALL-UPSET,8X14
(Superseded to 115AA0814)

$0.99

$

In Stock, Qty 7

0

233

Kawasaki 233AA0416

SCREW-PAN-WP+-,4X16
(Superseded to 233B0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311AA0400

NUT-HEX,4MM
(Superseded to 311509-6152-00)

$0.99

$

In Stock, Qty 10

0

317A

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, Qty 10

0
