FH430V-BS38 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

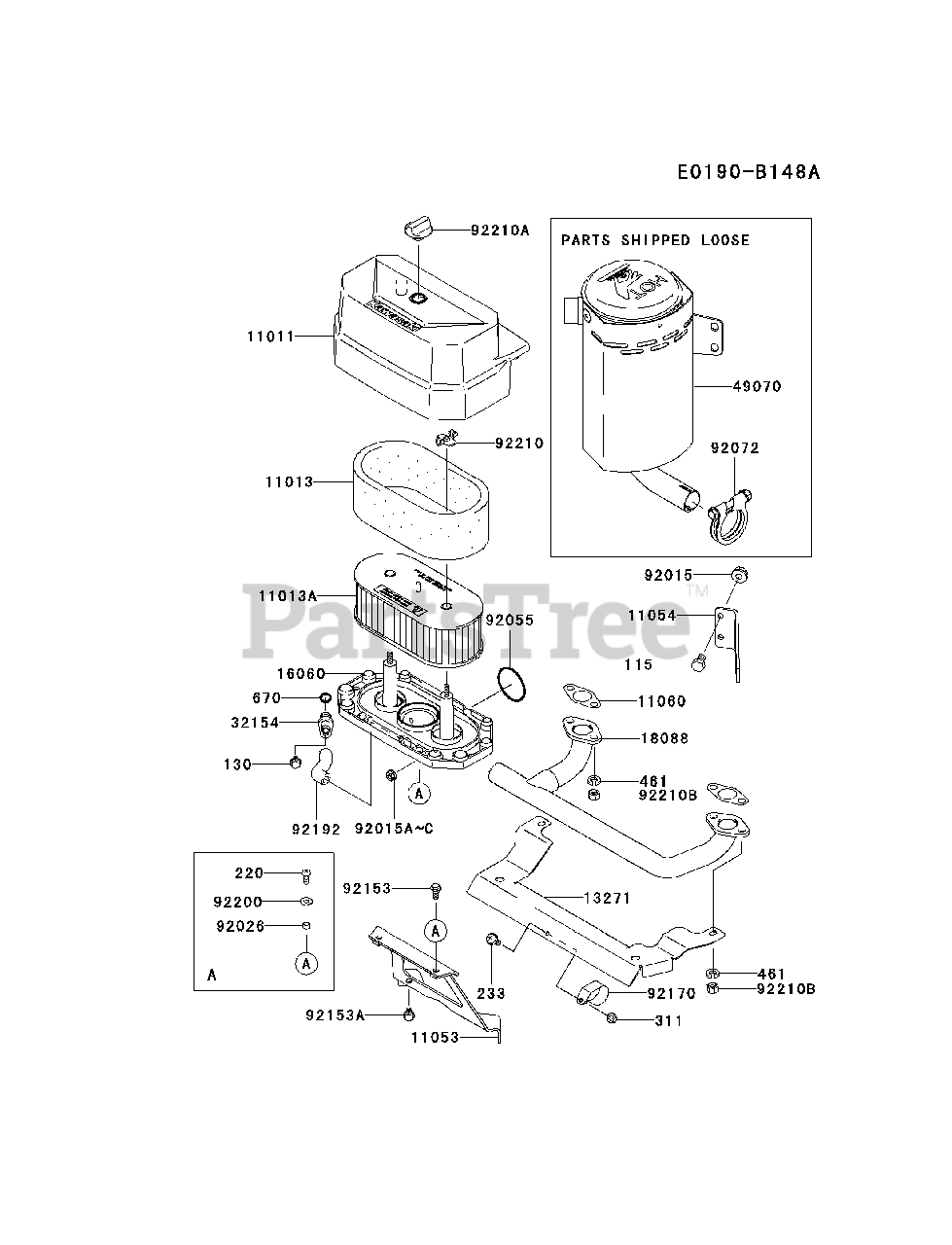

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7045

CASE-AIR FILTER
(Superseded to 11011-7035)

$22.99

$

In Stock, Qty 14

0

11013

Kawasaki 11013-7025

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7031

ELEMENT-AIR FILTER
(Superseded to 11013-7026)

$26.99

$

In Stock, Qty 20+

0

11053

Kawasaki 11053-7022

BRACKET

$36.99

$

Usually ships in 2-5 days

0

11054

Kawasaki 11054-7004-9H

BRACKET

$14.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7023

PLATE

$7.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7016

PIPE-INTAKE
(Superseded to 16060-7013)

$22.99

$

In Stock, only 1 left!

0

18088

Kawasaki 18088-7002

PIPE-EXHAUST

$

$

Not available

32154

Kawasaki 32154-7006

PIPE

$8.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7024

MUFFLER-COMP

$149.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1143

NUT

$0.99

$

In Stock, Qty 10

0

92015B

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92015C

Kawasaki 92015-1367

NUT

$4.49

$

In Stock, Qty 20+

0

92055

Kawasaki 92055-7015

RING-O

$1.49

$

In Stock, Qty 7

0

92072

Kawasaki 92072-7012

BAND

$14.99

$

In Stock, Qty 9

0

92153

Kawasaki 92153-7038

BOLT,6X10

$2.49

$

In Stock, only 3 left!

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92170

Kawasaki 92170-7002

CLAMP

$3.99

$

In Stock, only 2 left!

0

92192

Kawasaki 92192-7010

TUBE

$8.49

$

In Stock, Qty 6

0

92210

Kawasaki 92210-7004

NUT,M6

$3.49

$

In Stock, Qty 20+

0

92210A

Kawasaki 92210-7019

NUT

$6.99

$

In Stock, Qty 20+

0

92210B

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

115

Kawasaki 115AA0814

BOLT-SMALL-UPSET,8X14
(Superseded to 92001-036)

$0.99

$

In Stock, Qty 7

0

130

Kawasaki 130AA0610

BOLT-FLANGED,6X10
(Superseded to 130B0610)

$0.99

$

In Stock, Qty 20+

0

233

Kawasaki 233AA0416

SCREW-PAN-WP+-,4X16
(Superseded to 233B0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311AA0400

NUT-HEX,4MM
(Superseded to 311509-6152-00)

$0.99

$

In Stock, Qty 10

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, Qty 8

0
