FH430V-AS34 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

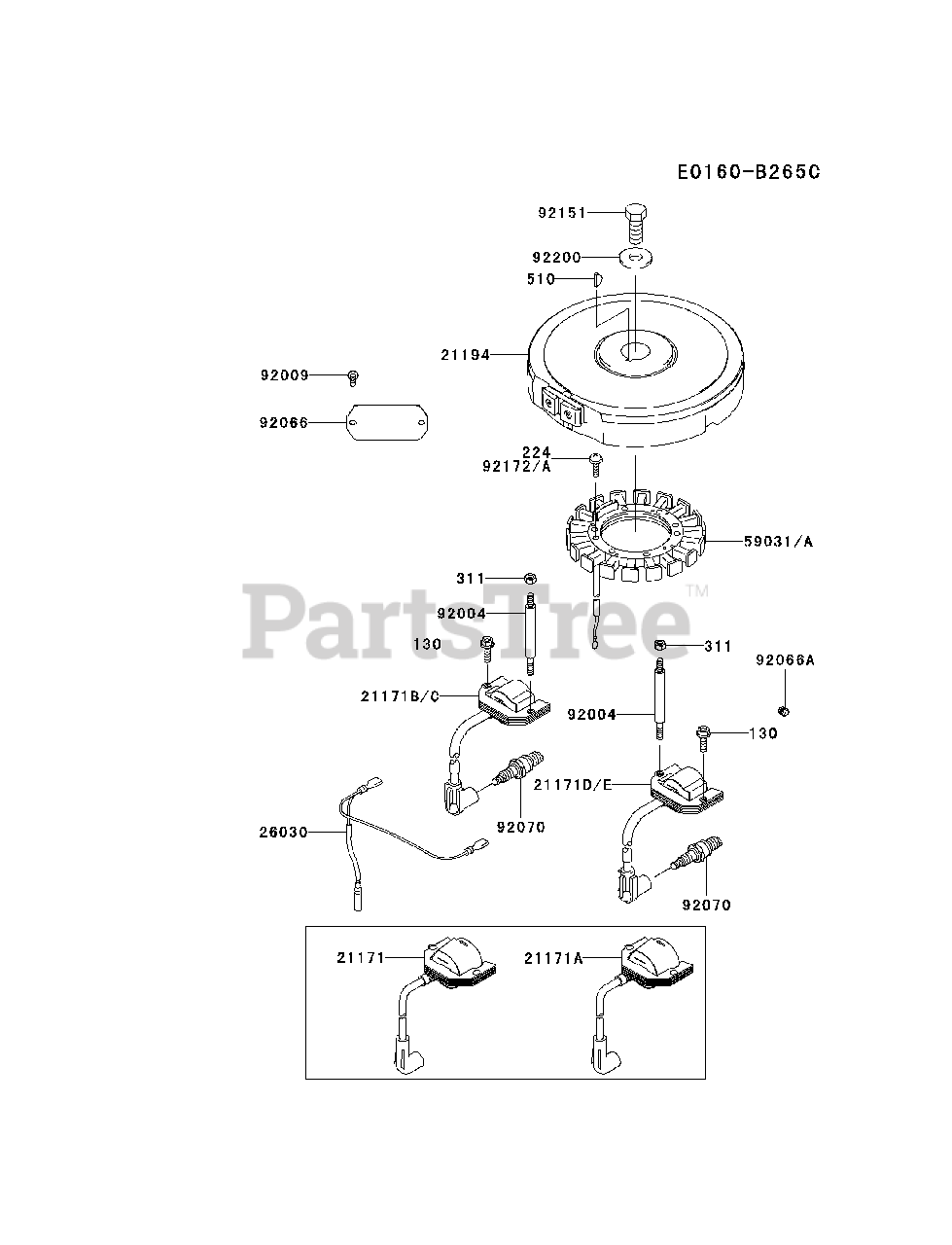

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21171

Kawasaki 21171-7013

COIL-ASSY-IGNITION
(Superseded to 21171-7034)

$81.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-7014

COIL-ASSY-IGNITION
(Superseded to 21171-7035)

$54.99

$

In Stock, Qty 15

0

21171C

Kawasaki 21171-7034

COIL-ASSY-IGNITION
(Superseded to 21171-7003)

$81.99

$

In Stock, Qty 20+

0

21171E

Kawasaki 21171-7035

COIL-ASSY-IGNITION
(Superseded to 21171-7005)

$54.99

$

In Stock, Qty 15

0

21194

Kawasaki 21194-7012

FLYWHEEL-COMP
(Superseded to 21194-0028)

$181.99

$

In Stock, only 1 left!

0

26030

Kawasaki 26030-7001

HARNESS

$10.99

$

In Stock, Qty 11

0

59031

Kawasaki 59031-7002

COIL-CHARGING
(Superseded to 59031-7011)

$71.99

$

In Stock, only 3 left!

0

92004

Kawasaki 92004-7008

STUD

$5.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Kawasaki 92066-7005

PLUG

$3.99

$

Usually ships in 2-5 days

0

92066A

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7003

PLUG-SPARK,RCJ8Y,SOLID

$4.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92172A

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN-WP-CROS,5X20
(Superseded to 224AA0520)

$0.99

$

In Stock, Qty 20+

0

311

Kawasaki 311F0600

NUT-HEX,6MM
(Superseded to 311AB0600)

$0.99

$

In Stock, Qty 12

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
