FH381V-CS25 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

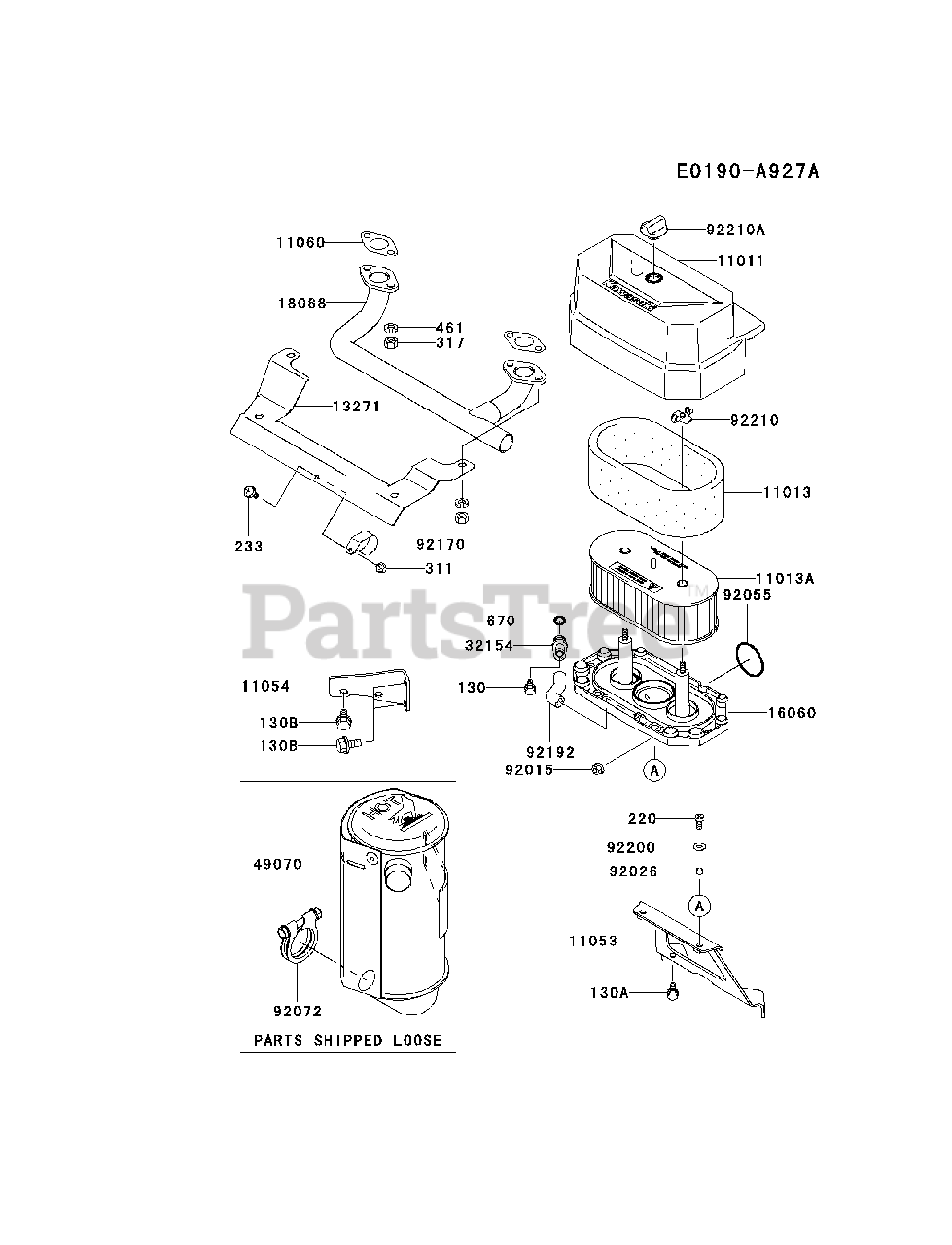

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11011

Kawasaki 11011-7045

CASE-AIR FILTER
(Superseded to 11011-7035)

$22.99

$

In Stock, Qty 15

0

11013

Kawasaki 11013-7025

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7031

ELEMENT-AIR FILTER
(Superseded to 11013-7026)

$26.99

$

In Stock, Qty 20+

0

11053

$36.99

$

Usually ships in 2-5 days

0

11054

$9.99

$

In Stock, only 1 left!

0

11060

Kawasaki 11060-7021

GASKET,MUFFLER
(Superseded to 11060-7006)

$2.49

$

In Stock, Qty 20+

0

13271

$17.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7016

PIPE-INTAKE
(Superseded to 16060-7013)

$22.99

$

Usually ships in 2-5 days

0

18088

Kawasaki 18088-7001

PIPE-EXHAUST

$148.99

$

Usually ships in 2-5 days

0

32154

$8.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7021

MUFFLER-COMP

$

$

Not available

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7001

SPACER,6.2X7.9X5
(Superseded to 92153-7007)

$4.49

$

In Stock, Qty 20+

0

92055

$1.49

$

In Stock, Qty 8

0

92072

$14.99

$

In Stock, Qty 9

0

92170

$3.99

$

In Stock, only 2 left!

0

92192

$8.49

$

In Stock, Qty 7

0

92200

Kawasaki 92200-2070

WASHER
(Superseded to 92022-2374)

$1.49

$

In Stock, only 4 left!

0

$3.49

$

In Stock, Qty 20+

0

92210A

$6.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0610

BOLT-FLANGED,6X10
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0816

BOLT-FLANGED,8X16
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

220

Kawasaki 220B0614

SCREW-PAN-CROS,6X14
(Superseded to 220AA0614)

$1.99

$

Usually ships in 2-5 days

0

233

Kawasaki 233B0416

SCREW-PAN-WP+-,4X16
(Superseded to 233AA0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311B0400

NUT-HEX,4MM
(Superseded to 311AA0400)

$0.99

$

In Stock, Qty 10

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461F0800

WASHER-SPRING,8MM
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670B2010

O RING,10MM

$1.99

$

In Stock, Qty 11

0
