FH381V-CS10 - Kawasaki Engine STARTER Parts Diagram

Engine

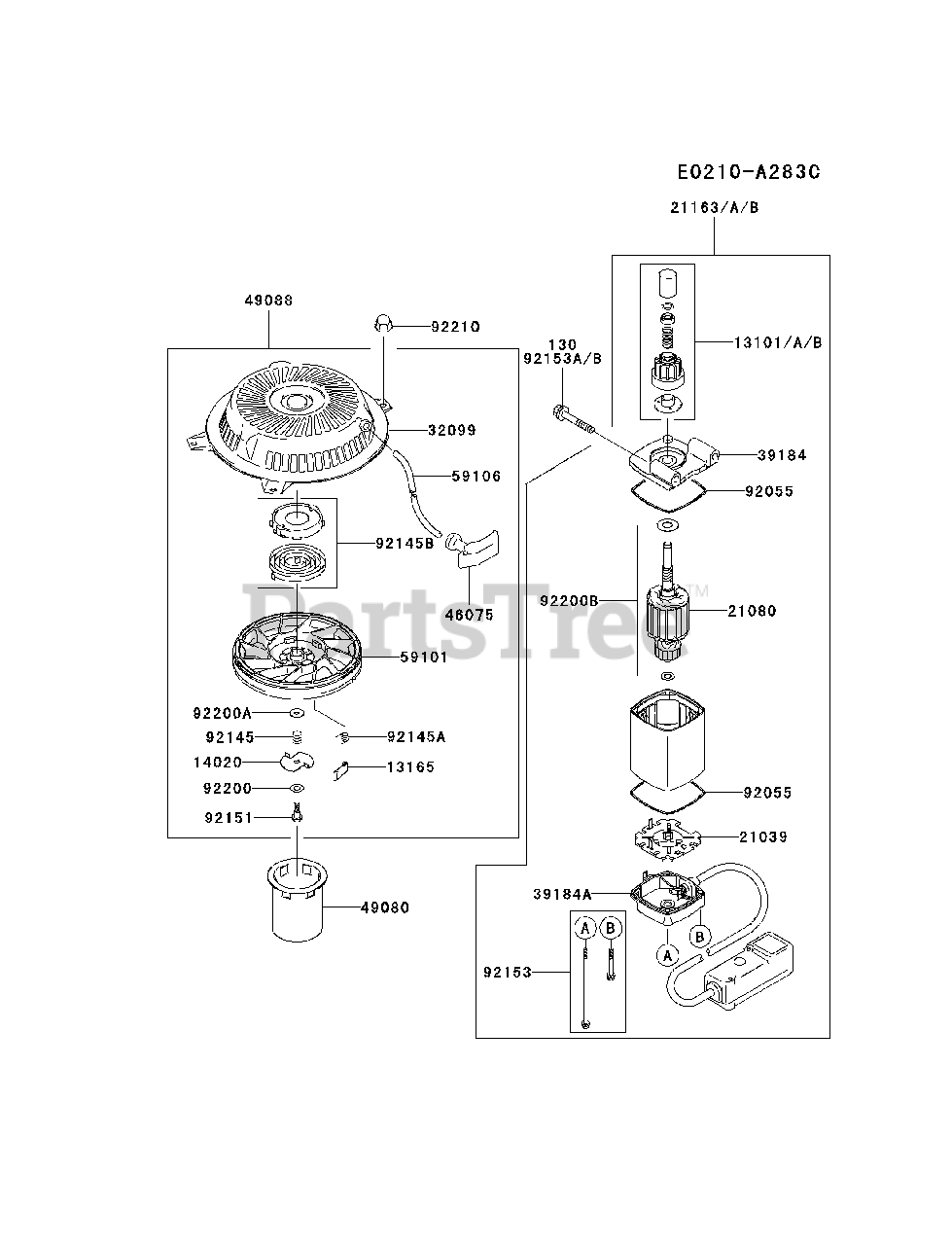

STARTER Parts Diagram

  • Title

13101

Kawasaki 13101-7003

GEAR-ASSY
(Superseded to 13101-7001)

$118.99

$

In Stock, only 1 left!

0

13165

Kawasaki 13165-7001

PAWL,RECOIL STARTER

$4.99

$

In Stock, Qty 16

0

14020

Kawasaki 14020-7001

RETAINER

$9.99

$

In Stock, only 4 left!

0

21039

Kawasaki 21039-7003

BRUSH

$79.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-7004

ARMATURE

$

$

Not available

21163

Kawasaki 21163-7012

STARTER-ELECTRIC
(Superseded to 21163-7030)

$230.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-7001

CASE,RECOIL STARTER

$60.99

$

In Stock, only 1 left!

0

39184

Kawasaki 39184-7005

BRACKET-ASSY

$28.99

$

Usually ships in 2-5 days

0

39184A

Kawasaki 39184-7006

BRACKET-ASSY

$66.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-7001

GRIP,RECOIL STARTER

$5.49

$

In Stock, Qty 20+

0

49080

Kawasaki 49080-7001

PULLEY-STARTING
(Superseded to 49080-0006)

$14.99

$

In Stock, Qty 6

0

49088

Kawasaki 49088-7012

STARTER-RECOIL
(Superseded to 49088-0014)

$69.99

$

In Stock, only 4 left!

0

59101

Kawasaki 59101-7001

REEL,RECOIL STARTER

$26.99

$

In Stock, only 1 left!

0

59106

Kawasaki 59106-7005

ROPE
(Superseded to 59106-7001)

$10.99

$

In Stock, only 4 left!

0

92055

Kawasaki 92055-7010

RING-O

$4.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7006

SPRING

$1.49

$

In Stock, Qty 5

0

92145A

Kawasaki 92145-7007

SPRING

$0.99

$

In Stock, Qty 18

0

92145B

Kawasaki 92145-7008

SPRING

$20.99

$

In Stock, Qty 8

0

92151

Kawasaki 92151-7008

BOLT

$2.49

$

In Stock, Qty 7

0

92153

Kawasaki 92153-7024

BOLT

$23.99

$

Usually ships in 2-5 days

0

92153B

Kawasaki 92153-7054

BOLT,8X50

$2.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7004

WASHER

$1.49

$

In Stock, Qty 13

0

92200A

Kawasaki 92200-7005

WASHER

$1.99

$

In Stock, only 3 left!

0

92200B

Kawasaki 92200-7018

WASHER

$

$

Not available

92210

Kawasaki 92210-0003

NUT

$0.99

$

In Stock, Qty 20+

0

130

Kawasaki 130T0850

BOLT-FLANGED,8X50
(Superseded to 130CA0850)

$1.99

$

In Stock, Qty 16

0
