FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: U12115001001 - U12115999999) FUEL SYSTEM Parts Diagram

Shafted Hedge Trimmer

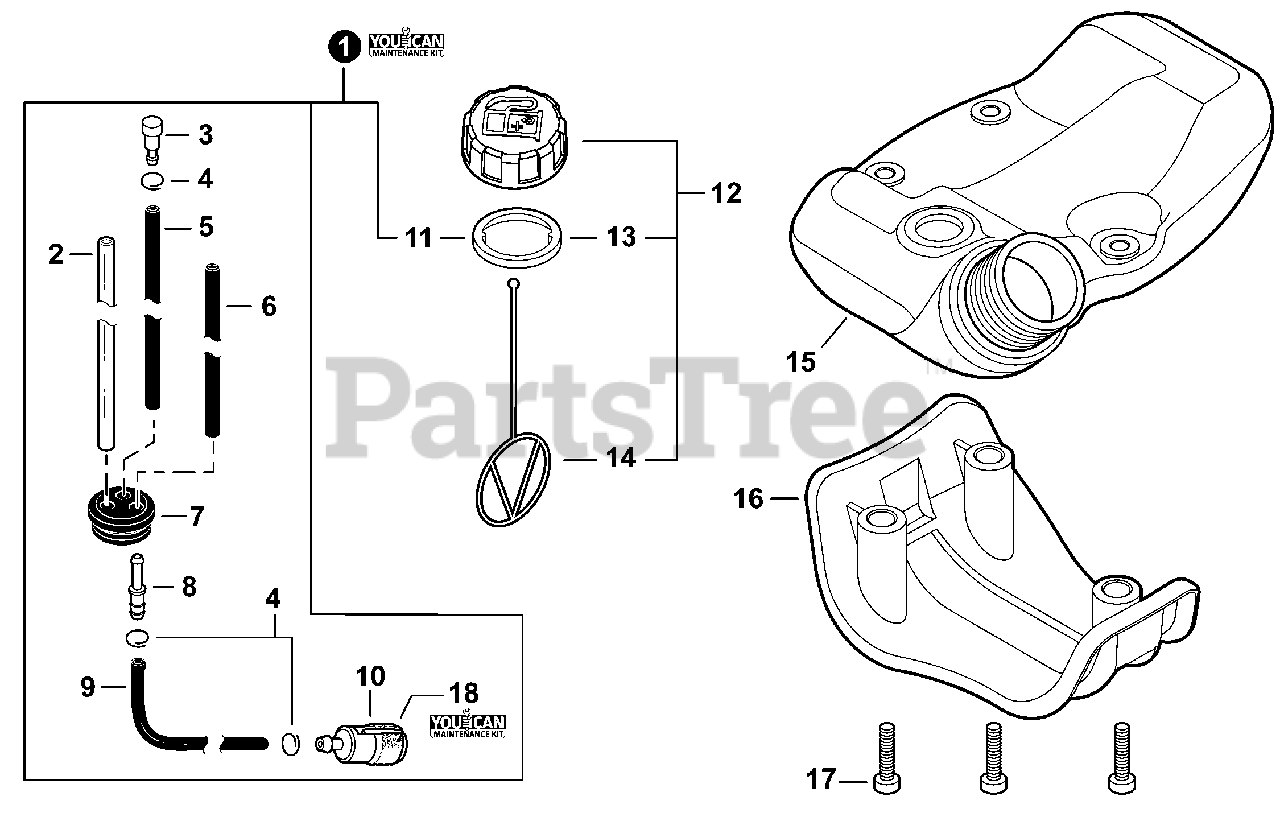

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 84007Y

FUEL SYSTEM KIT - YOUCANT
(Superseded to 84025Y)

Note: Includes Items 2-11 See Maintenance Kits

$36.99

$

Usually ships in 2-4 days

0

2

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

3

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

4

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 18

0

5

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

6

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.49

$

In Stock, only 1 left!

0

7

Echo 13211546730

GROMMET, FUEL Ø5

$1.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V470001960

PIPE, FUEL 3×5×110 BLACK

$5.49

$

Usually ships in 2-4 days

0

10

Echo A369000480

FILTER, FUEL

Note: Included in Tune-Up Kit

$5.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 13-14

$5.99

$

In Stock, Qty 6

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

15

Echo A350002280

TANK ASSY, FUEL
(Superseded to A350002281)

$22.99

$

Usually ships in 2-4 days

0

16

Echo A175000070

GUARD, FUEL TANK

$4.99

$

Usually ships in 2-4 days

0

17

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

18

Echo 84015Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$21.99

$

Usually ships in 2-4 days

0
