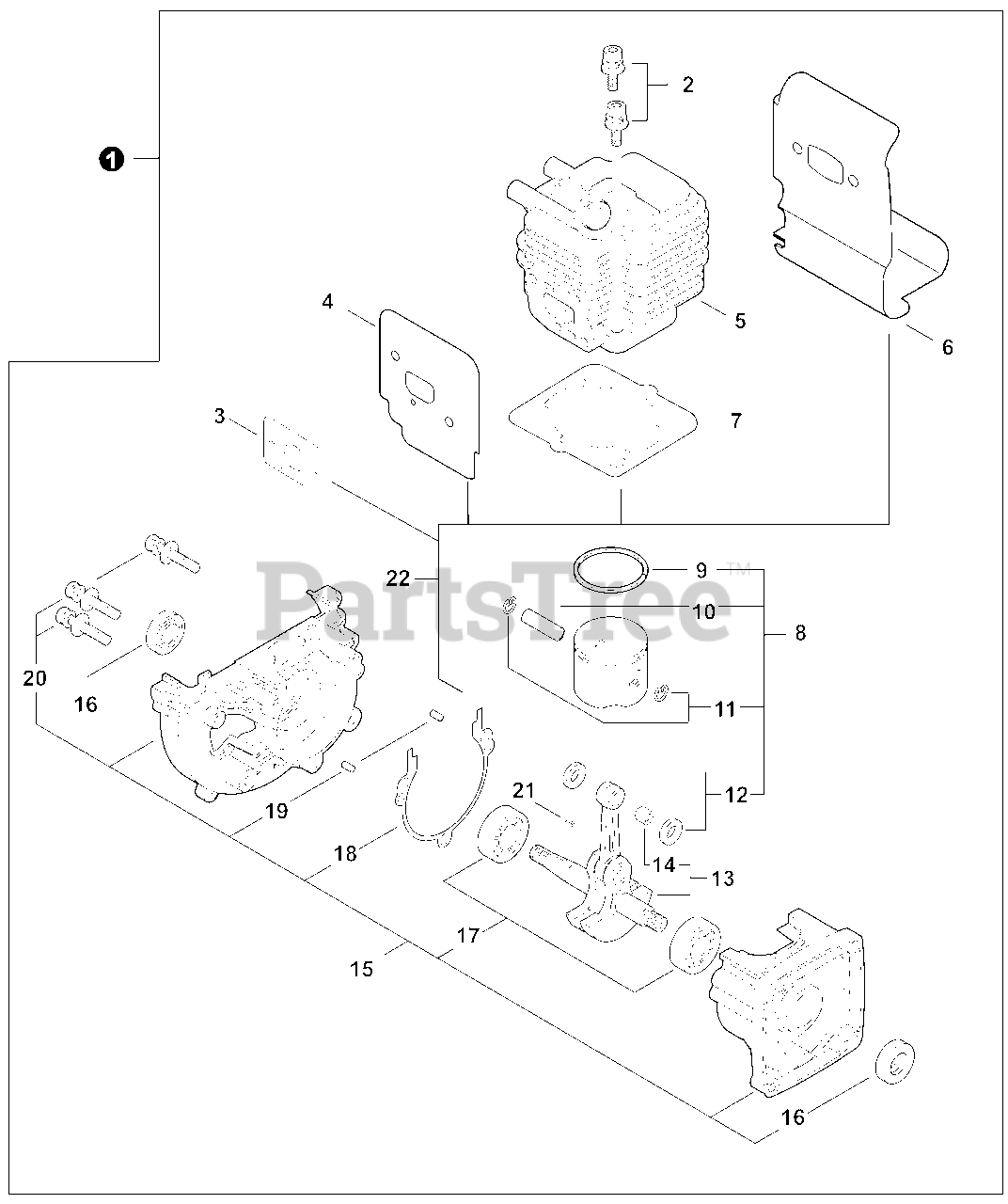

FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: U12115001001 - U12115999999) ENGINE Parts Diagram

Shafted Hedge Trimmer

ENGINE Parts Diagram

  • Title
1

Echo SB1124

SHORT BLOCK

Note: Includes Items 2-21

$145.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

3

Echo V103001390

GASKET, INTAKE
(Superseded to V103002190)

Note: Included in Gasket Kit

$1.99

$

In Stock, Qty 20+

0

4

Echo V103001360

HEAT SHIELD, INTAKE

Note: Included in Gasket Kit

$2.49

$

In Stock, Qty 15

0

5

Echo A130002320

CYLINDER

$125.99

$

Usually ships in 2-4 days

0

6

Echo V104000850

HEAT SHIELD, EXHAUST

Note: Included in Gasket Kit

$13.99

$

In Stock, only 1 left!

0

7

Echo 101010-44332

GASKET, CYLINDER

Note: Included in Gasket Kit

$3.99

$

In Stock, only 4 left!

0

8

Echo P021051490

PISTON KIT

Note: Includes Items 9-12

$50.99

$

Usually ships in 2-4 days

0

9

Echo A101000090

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

10

Echo 100013-11520

PIN, PISTON 8

$7.49

$

In Stock, only 1 left!

0

11

Echo 100015-04630

RING, RETAINING
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 7

0

12

Echo 100014-11520

WASHER, THRUST

$3.49

$

In Stock, only 3 left!

0

13

Echo A011001410

CRANKSHAFT ASSY

Note: Includes Item 14

$155.99

$

In Stock, only 1 left!

0

14

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

Usually ships in 2-4 days

0

15

Echo P100001870

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes Items 16-20

$140.99

$

Usually ships in 2-4 days

0

16

Echo 100212-42031

SEAL, OIL 12

$6.49

$

In Stock, Qty 6

0

17

Echo 9409536201

BEARING, BALL
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

18

Echo 100242-42030

GASKET, CRANKCASE

Note: Included in Gasket Kit

$1.49

$

In Stock, Qty 20+

0

19

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

20

Echo 900162-05028

BOLT 5×28

$1.99

$

In Stock, Qty 19

0

21

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 14

0

22

Echo P021051670

GASKET KIT: ENGINE, INTAKE, EXHAUST

Note: See Maintenance Kits

$19.99

$

In Stock, Qty 9

0
