FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: U12115001001 - U12115999999) CARBURETOR - RB-110128D Parts Diagram

Shafted Hedge Trimmer

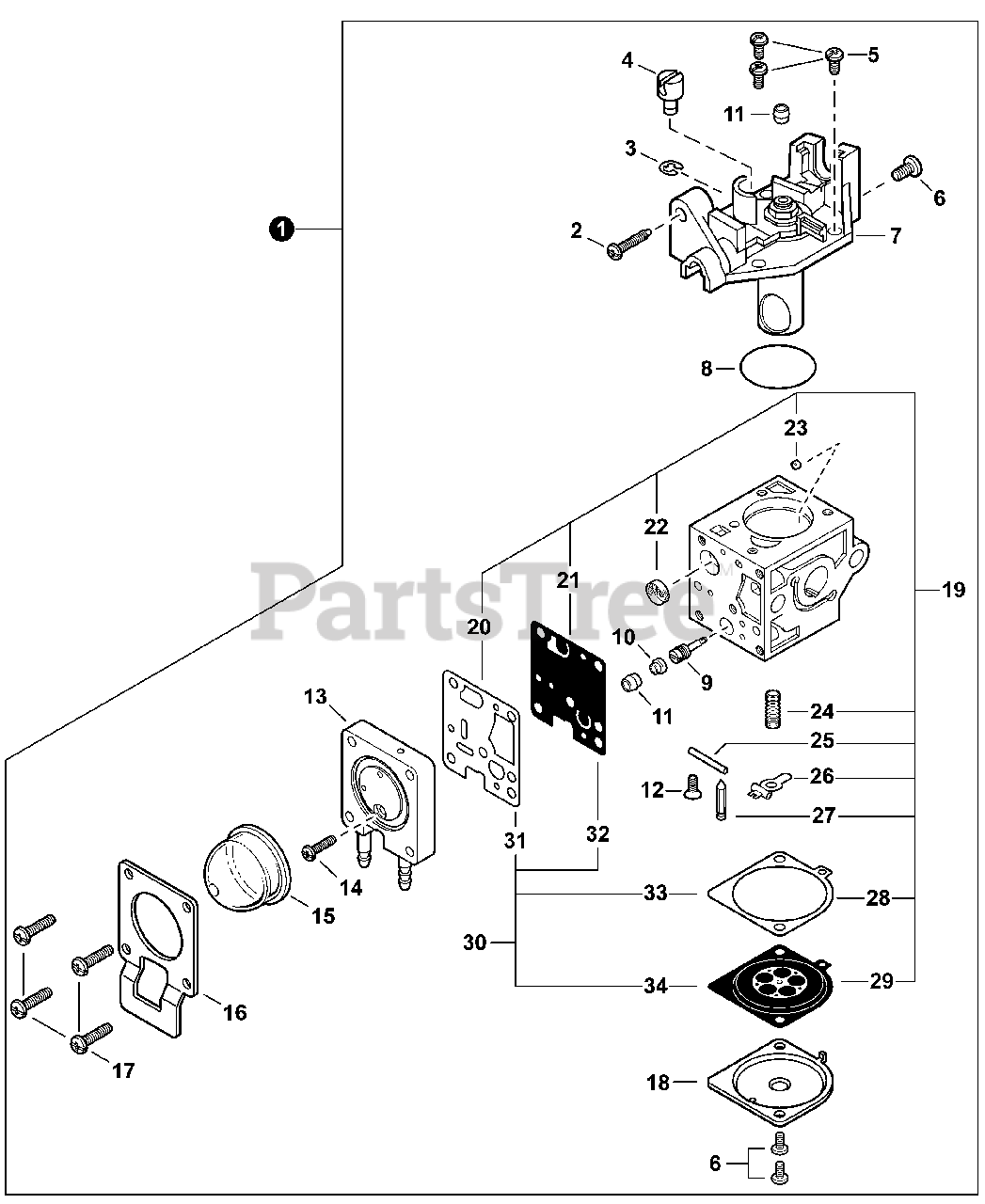

CARBURETOR - RB-110128D Parts Diagram

  • Title
1

Echo A021004580

CARBURETOR RB-110128D
(Superseded to A021004890)

Note: Includes Items 2-34

$59.99

$

In Stock, Qty 10

0

2

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

3

$0.99

$

In Stock, Qty 6

0

4

$4.99

$

Usually ships in 2-4 days

0

$2.49

$

In Stock, Qty 12

0

$0.99

$

In Stock, Qty 8

0

7

Echo P005002460

COVER ASSY, ROTOR

$33.99

$

In Stock, only 1 left!

0

8

$3.49

$

In Stock, Qty 8

0

9

Echo P005003500

NEEDLE, MIXTURE

$7.49

$

Usually ships in 2-4 days

0

10

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

11

$1.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 12

0

13

Echo P005002480

BODY ASSY, PURGE

$19.99

$

In Stock, only 2 left!

0

14

$1.49

$

In Stock, Qty 20+

0

15

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

16

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

17

$0.99

$

In Stock, Qty 20+

0

18

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

19

Echo P005003750

REPAIR KIT, CARBURETOR

Note: Includes Items 20-29

$16.99

$

In Stock, only 3 left!

0

20

GASKET, PUMP

$

$

Not available

21

DIAPHRAGM, PUMP

$

$

Not available

22

SCREEN, FUEL INLET

$

$

Not available

23

GUIDE, ROLLER

$

$

Not available

24

SPRING, METERING LEVER

$

$

Not available

25

PIN, METERING LEVER

$

$

Not available

26

LEVER, METERING

$

$

Not available

27

VALVE, INLET NEEDLE

$

$

Not available

28

GASKET, METERING DIAPHRAGM

$

$

Not available

29

DIAPHRAGM, METERING

$

$

Not available

30

Echo P005003740

GASKET / DIAPHRAGM KIT

Note: Includes Items 31-34

$8.99

$

In Stock, only 3 left!

0

31

GASKET, PUMP

$

$

Not available

32

DIAPHRAGM, PUMP

$

$

Not available

33

GASKET, METERING DIAPHRAGM

$

$

Not available

34

DIAPHRAGM, METERING

$

$

Not available
