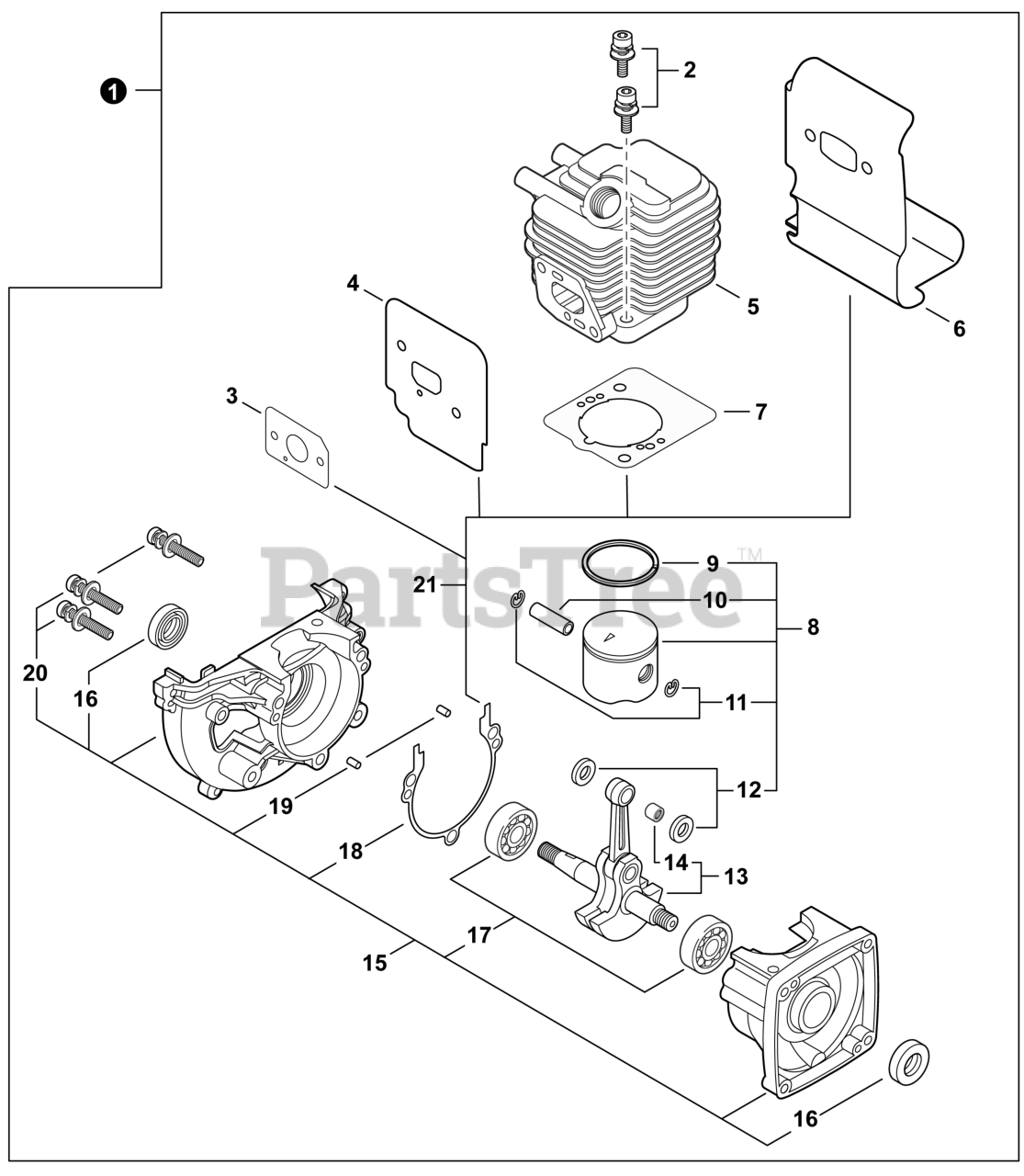

FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: T47914001001 - T47914999999) ENGINE Parts Diagram

Shafted Hedge Trimmer

ENGINE Parts Diagram

  • Title

1

Echo SB1107

SHORT BLOCK

Note: Includes Items 2-21

$171.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

BOLT 5x22

$0.99

$

In Stock, Qty 20+

0

3

Echo V103001390

GASKET, INTAKE
(Superseded to V103002190)

$1.99

$

In Stock, only 1 left!

0

4

Echo V103001360

HEAT SHIELD, INTAKE

$2.49

$

In Stock, Qty 16

0

5

Echo A130000550

CYLINDER

$90.99

$

Usually ships in 2-4 days

0

6

Echo V104000850

HEAT SHIELD, EXHAUST

$13.99

$

Usually ships in 2-4 days

0

7

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

8

Echo P021043620

PISTON KIT

Note: Includes Items 9-12

$61.99

$

In Stock, only 1 left!

0

9

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

10

Echo 10001311520

PIN, PISTON 8

$7.49

$

In Stock, only 1 left!

0

11

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

12

Echo 10001411520

WASHER, THRUST

$3.49

$

In Stock, only 3 left!

0

13

Echo A011001410

CRANKSHAFT ASSY

Note: Includes Item 14

$155.99

$

In Stock, only 1 left!

0

14

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

Usually ships in 2-4 days

0

15

Echo 10020452133

CRANKCASE KIT

Note: Includes Items 16-20

$140.99

$

Usually ships in 2-4 days

0

16

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 13

0

17

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 11

0

18

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

19

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

20

Echo 90016205028

BOLT 5x28

$1.99

$

In Stock, Qty 20+

0

21

Echo P021043920

GASKET KIT: ENGINE, INTAKE, EXHAUST

$19.99

$

Usually ships in 2-4 days

0
