FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: T47914001001 - T47914999999) CARBURETOR Parts Diagram

Shafted Hedge Trimmer

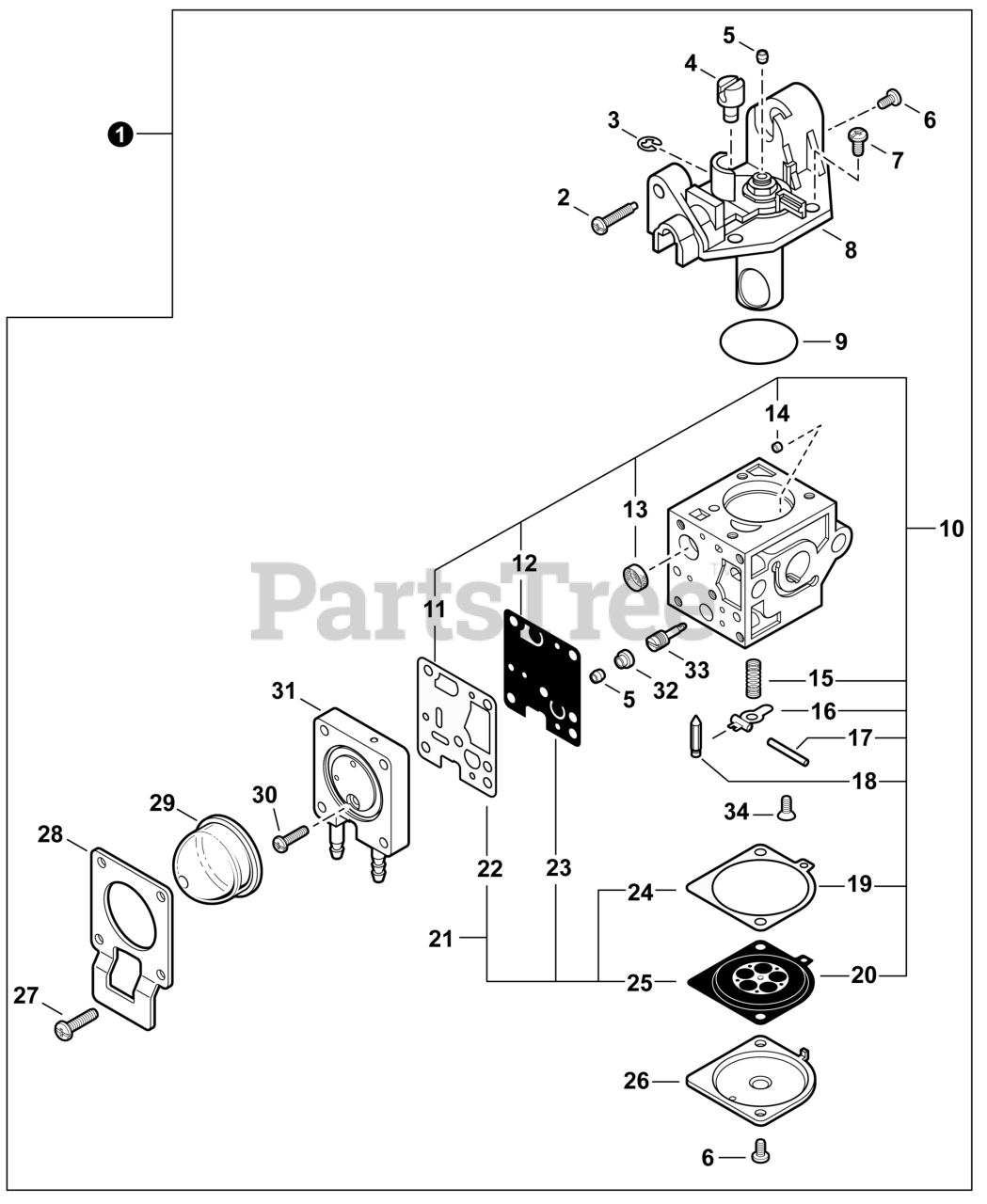

CARBURETOR Parts Diagram

  • Title

1

Echo A021003881

CARBURETOR RB-K113
(Superseded to A021005100)

Note: Includes ITEMS 2-34

$105.99

$

Usually ships in 2-4 days

0

2

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

3

Echo P005000190

E-RING

$0.99

$

In Stock, Qty 7

0

4

Echo P005002090

SWIVEL

$4.99

$

In Stock, only 1 left!

0

5

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

6

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

7

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

8

Echo P005002460

COVER ASSY, ROTOR

$33.99

$

In Stock, only 1 left!

0

9

Echo P005000280

O-RING

$3.49

$

In Stock, only 3 left!

0

10

Echo P005003410

REPAIR KIT, CARBURETOR

Note: Includes ITEMS 11-20

$16.99

$

In Stock, only 4 left!

0

11

GASKET, PUMP

$

$

Not available

12

DIAPHRAGM, PUMP

$

$

Not available

13

SCREEN, FUEL INLET

$

$

Not available

14

GUIDE, ROLLER

$

$

Not available

15

SPRING, METERING LEVER

$

$

Not available

16

LEVER, METERING

$

$

Not available

17

PIN, METERING LEVER

$

$

Not available

18

VALVE, INLET NEEDLE

$

$

Not available

19

GASKET, METERING DIAPHRAGM

$

$

Not available

20

DIAPHRAGM, METERING

$

$

Not available

21

Echo P005002270

GASKET / DIAPHRAGM KIT

Note: Includes ITEMS 22-25

$10.99

$

In Stock, Qty 14

0

22

GASKET, PUMP

$

$

Not available

23

DIAPHRAGM, PUMP

$

$

Not available

24

GASKET, METERING DIAPHRAGM

$

$

Not available

25

DIAPHRAGM, METERING

$

$

Not available

26

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

27

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0

28

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

29

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 12

0

30

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

31

Echo P005001890

BODY ASSY, PURGE

$18.99

$

In Stock, Qty 16

0

32

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

33

Echo P005001260

NEEDLE, HIGH SPEED

$5.99

$

In Stock, only 1 left!

0

34

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0
