FH 235 - Shindaiwa Shafted Hedge Trimmer (SN: T45111001001 - T45111999999) Fuel System Parts Diagram

Shafted Hedge Trimmer

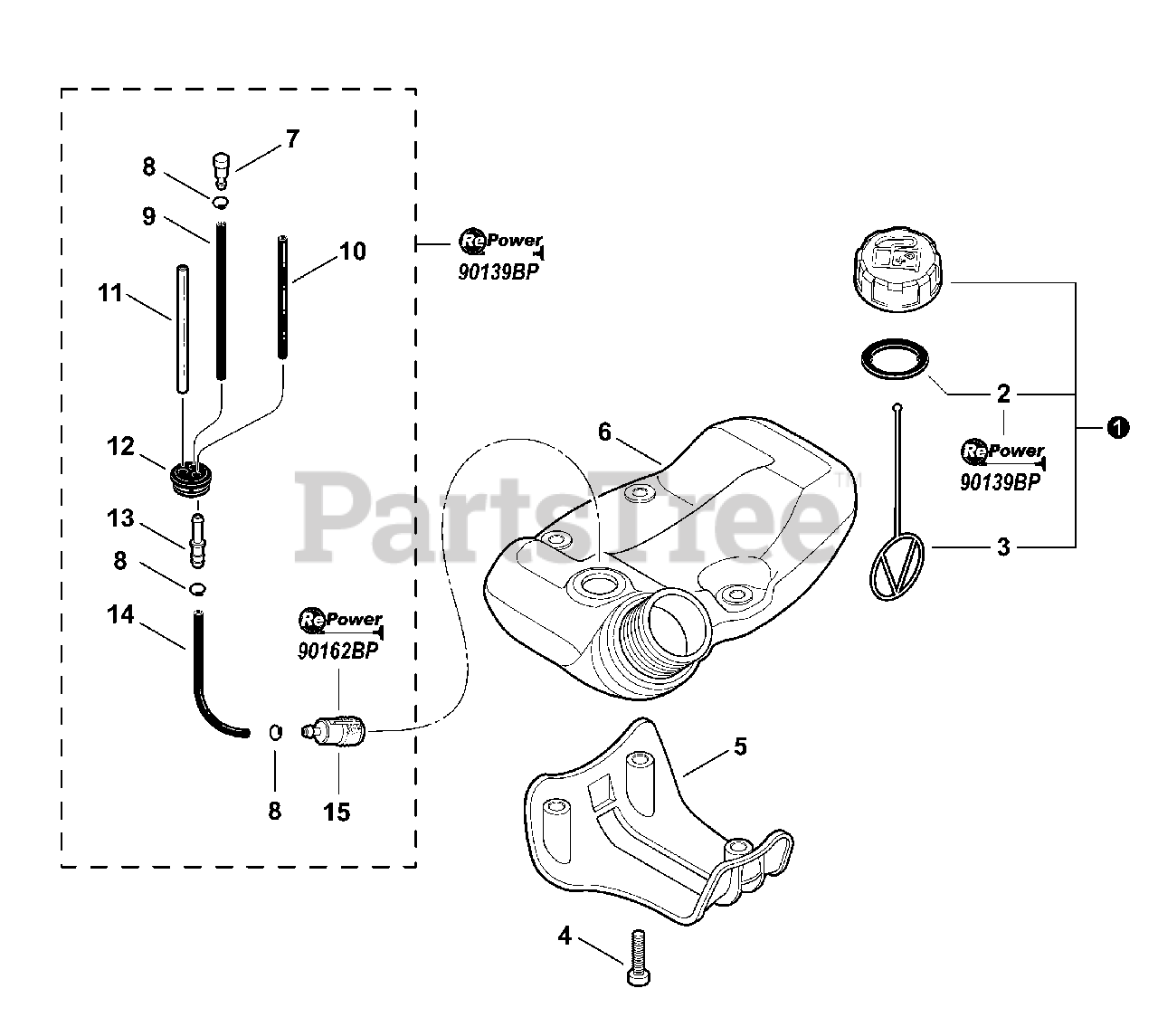

Fuel System Parts Diagram

  • Title

1

Echo P021041930

CAP ASY

$5.99

$

In Stock, only 4 left!

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, FUEL CAP

$1.49

$

In Stock, Qty 10

0

4

Echo V805000170

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo A175000070

GUARD, FUEL TANK

$4.99

$

Usually ships in 2-4 days

0

6

Echo A350000930

TANK, FUEL

$22.99

$

Usually ships in 2-4 days

0

7

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

8

Echo V490001240

CLIP - 6

Note: Includes Items 9-10

$0.99

$

Usually ships in 2-4 days

0

9

Echo V471001210

PIPE - 3×5×90 -- BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

10

Echo V471003691

PIPE - 3×5×74 -- BLACK
(Superseded to V471005620)

$3.49

$

In Stock, only 1 left!

0

11

Echo 13201256030

PIPE - 3×6×80 -- CLEAR

$3.49

$

In Stock, Qty 20+

0

12

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 19

0

13

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

14

Echo V471001960

PIPE, FUEL -- BLACK

$

$

Currently unavailable

15

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0
