FH 100 (59A40052727) - Cub Cadet Yanmar Tractor Front Hitch Front Hitch Assembly Parts Diagram

Tractor Front Hitch

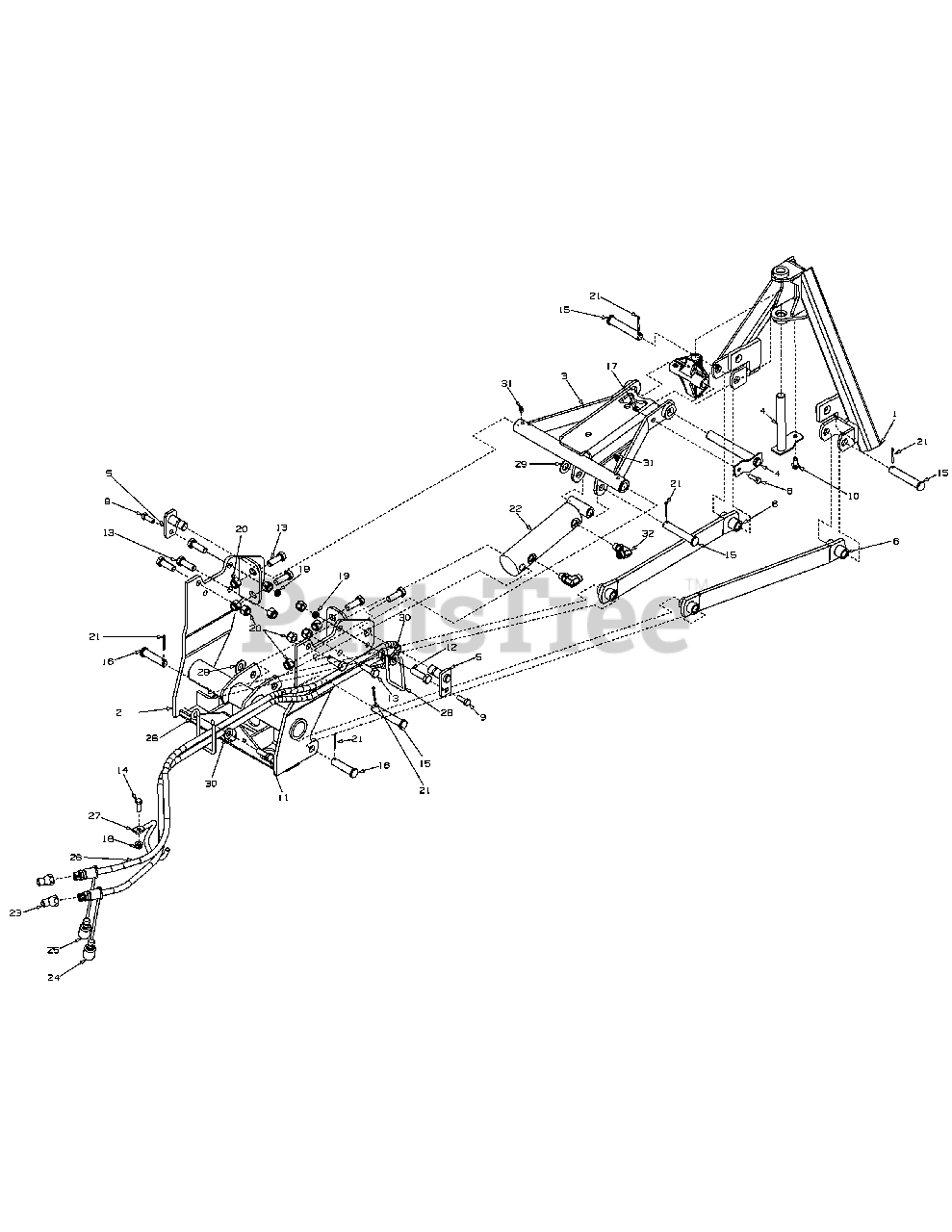

Front Hitch Assembly Parts Diagram

  • Title

1

Cub Cadet YS-603-04467

Frame Assembly, Hitch

$

$

Not available

2

Cub Cadet YS-603-04582

Brace, Front Hitch

$

$

Not available

3

Cub Cadet YS-603-04610

Link, Top

$

$

Not available

4

Cub Cadet YS-603-0806

Pin, Front Hitch

$

$

Not available

5

Cub Cadet YS-603-0809A

Pin, Hitch Pivot

$

$

Not available

6

Cub Cadet YS-603-0907

Arm, Front HItch

$

$

Not available

7

Cub Cadet YS-619-3075A

Housing, Pivot

$

$

Not available

8

Cub Cadet YS-710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet YS-710-0514

Screw, Hex, 3/8-16 x 1.00
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet YS-710-1260A

Scrw, Hx Wsh. Hd Tapp, 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet YS-710-1313

Screw, Hex Cap, M10-1.5 x 35 Gr8
(Superseded to 710-1313)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet YS-710-3067

Screw, Hex Cap, 1/2-13 x 1.75 Gr5
(Superseded to 710-3067)

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet YS-710-3181

Screw, Hex Cap, 1/2-13 x 1.5 Gr5
(Superseded to 710-3181)

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet YS-710-3206A

Screw, Hex, M8-1.25 x 25.0
(Superseded to 710-3206A)

$3.99

$

In Stock, Qty 13

0

15

Cub Cadet YS-711-1625

Pin, Clevis, .625 x 3.45
(Superseded to 711-1625)

$

$

Not available

16

Cub Cadet YS-711-1626

Pin, Clevis, .625 x 2.313
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

17

Cub Cadet YS-712-04063

Nut, Hx Insert Flnge Lck, 3/8-16 GrF
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet YS-712-0714

Nut, Flange Lock M8-1.25
(Superseded to 712-0714)

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet YS-712-3020

Nut, Insert Jam Lock, 3/8-16 Gr5
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

20

Cub Cadet YS-712-3083

Nut, Hex Insert Lock, 1/2-13 GrB
(Superseded to 712-3083)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet YS-714-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 914-0470)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet YS-717-04605

Cylinder, Hitch Lift

$

$

Not available

23

Cub Cadet YS-727-04243

Coupling, Hydraulic Male

$

$

Not available

24

Cub Cadet YS-727-04251

Plug, Female Hyd. Coupler, Blue

$

$

Not available

25

Cub Cadet YS-727-04252

Plug, Female Hyd. Coupler, Red

$

$

Not available

26

Cub Cadet YS-727-04260

Hose, Hydraulic, 60"

$

$

Not available

26

Cub Cadet YS-727-04265

Sleeve, Hose

Note: Not shown

$

$

Not available

27

Cub Cadet YS-747-04971

Rod, Hose Support

$

$

Not available

28

Cub Cadet YS-732-04598

Rod, Hose Support

$

$

Not available

29

Cub Cadet YS-736-0237

Washer, Flat, .65 x 1.25 x .075
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet YS-736-0326

Washer, Flat, .51 x 1.0 x .125
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

31

Cub Cadet YS-737-0146

Fitting, Lube
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

32

Cub Cadet YS-737-04185

Fitting, 90 Degree, 3/8FS x 3/8 Orb

$

$

Not available
