FG500 A2 (FZCY) - Honda Tiller, Made in Japan (SN: FZCY-1000001 - FZCY-9999999) TRANSMISSION CASE Parts Diagram

Tiller, Made in Japan

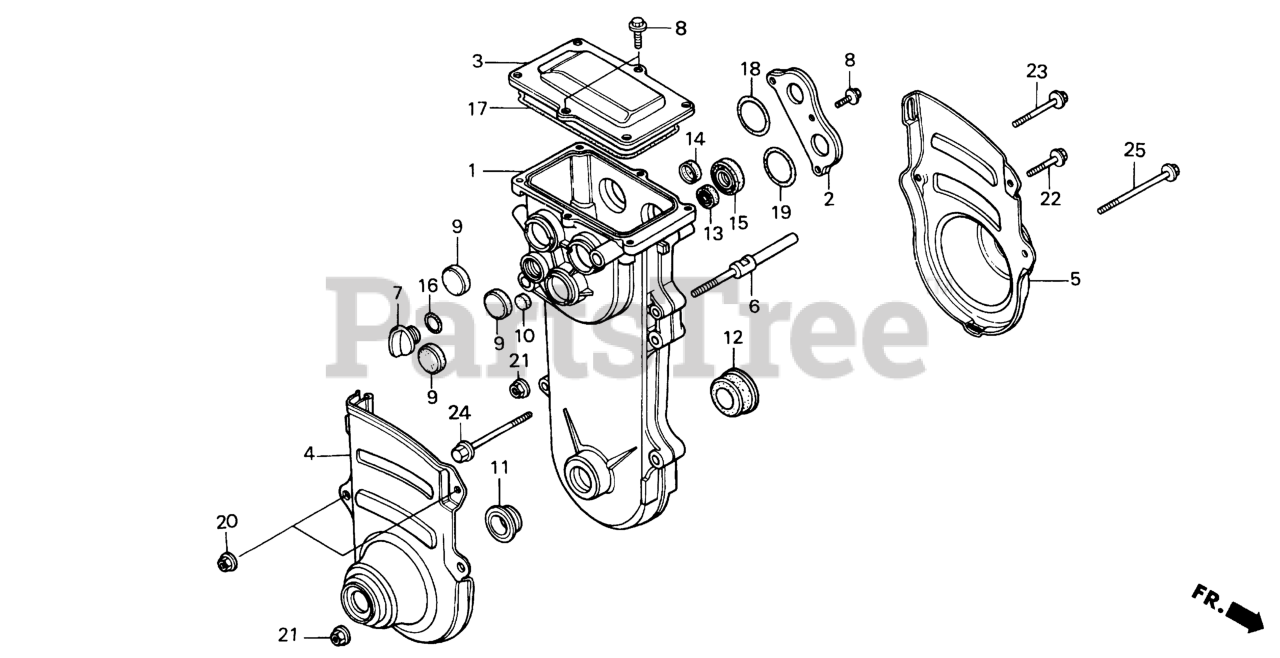

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21111-733-020

CASE, TRANSMISSION

$623.99

$

Usually ships in 3-6 days

0

2

Honda 21521-733-000

PLATE, BEARING HOLDER

$11.99

$

Usually ships in 3-6 days

0

3

Honda 21525-733-000

COVER, TRANSMISSION CASE TOP

$21.99

$

Usually ships in 3-6 days

0

4

Honda 21911-733-792

PROTECTOR, R. CASE

$65.99

$

Usually ships in 3-6 days

0

5

Honda 21921-733-792

PROTECTOR, L. CASE

$65.99

$

Usually ships in 3-6 days

0

6

Honda 22551-733-000

SHAFT, TENSIONER ARM

$33.99

$

Usually ships in 3-6 days

0

7

Honda 25611-733-000

CAP, OIL

$9.49

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

9

Honda 90871-733-003

PLUG, SEALING (28) (ARAI)

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90875-733-003

PLUG, SEALING (16) (ARAI)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 91205-733-014

SEAL, WATER (25X41X9.5) (NOK)

$23.99

$

Usually ships in 3-6 days

0

12

Honda 91206-733-024

SEE PART DETAILS - PRI; OIL SEAL (25X52X9)

$28.99

$

Usually ships in 3-6 days

0

13

Honda 91253-706-003

OIL SEAL (12X22X6)

$13.99

$

Usually ships in 3-6 days

0

15

Honda 91271-733-003

SEE PART DETAILS - PRI; OIL SEAL (15X35X7) (ARAI)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 91303-800-000

O-RING (16MM) (Honda Code 0065094).

$3.49

$

In Stock, only 2 left!

0

17

Honda 91371-733-000

O-RING A, TRANSMISSION CASE

$13.99

$

Usually ships in 3-6 days

0

18

Honda 91372-733-003

O-RING (40.5X2.5) (ARAI)

$6.99

$

Usually ships in 3-6 days

0

19

Honda 91373-733-003

O-RING (45.5X2.5) (ARAI)

$5.49

$

Usually ships in 3-6 days

0

20

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

21

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

22

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

23

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2410942).

$2.99

$

Usually ships in 3-6 days

0

24

Honda 95701-08055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X55) (Honda Code 2774438).

$3.49

$

Usually ships in 3-6 days

0

25

Honda 95701-08065-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X65)

$2.49

$

In Stock, Qty 5
