FG500 A2 (FZCY) - Honda Tiller, Made in Japan (SN: FZCY-1000001 - FZCY-9999999) BELT COVER Parts Diagram

Tiller, Made in Japan

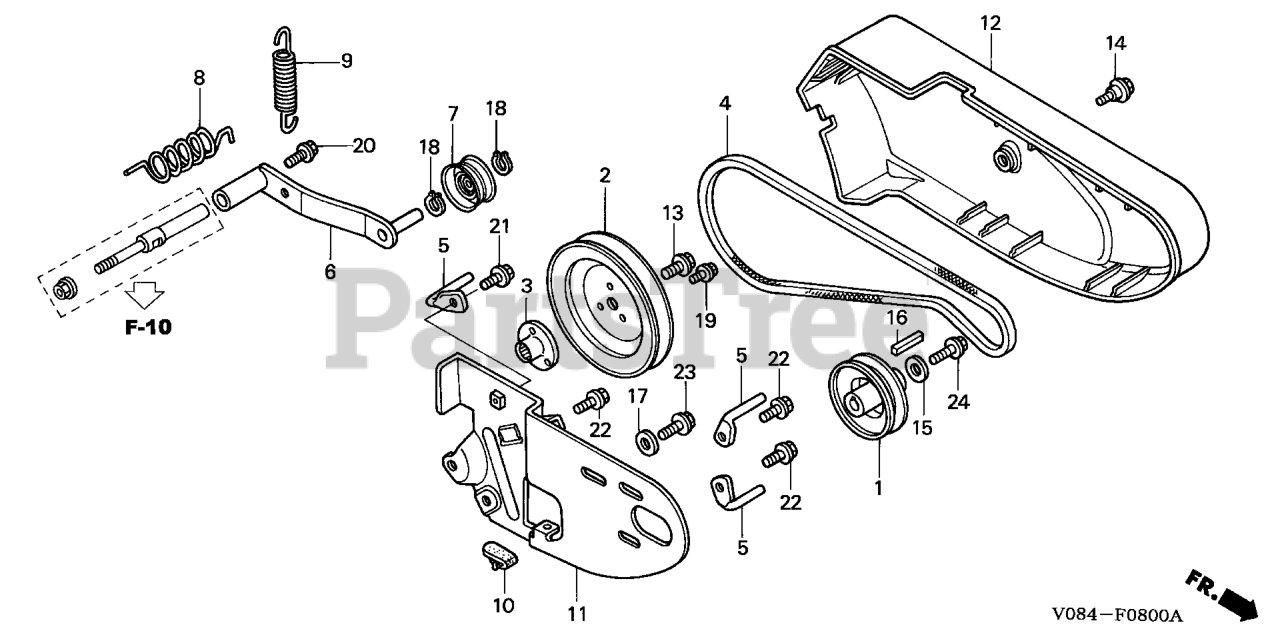

BELT COVER Parts Diagram

  • Title

1

Honda 22410-V08-700

PULLEY, DRIVE

$54.99

$

Usually ships in 3-6 days

0

2

Honda 22415-733-620

PULLEY, DRIVEN (141MM)

$50.99

$

Usually ships in 3-6 days

0

3

Honda 22426-733-000

BOSS, DRIVEN PULLEY

$13.99

$

Usually ships in 3-6 days

0

4

Honda 22431-727-013

SEE PART DETAILS - PRI; V-BELT (SB-38)

$42.99

$

Usually ships in 3-6 days

0

5

Honda 22441-V08-000

STOPPER, BELT

$10.99

$

Usually ships in 3-6 days

0

6

Honda 22520-V08-000

ARM, TENSION

$27.99

$

Usually ships in 3-6 days

0

7

Honda 22520-730-300

ROLLER (TENSION)

$42.99

$

Usually ships in 3-6 days

0

8

Honda 22529-V08-000

SPRING, TENSION ARM RETURN

$4.99

$

Usually ships in 3-6 days

0

9

Honda 22531-734-630

SPRING, BELT TENSIONER

$

$

Not available

10

Honda 50319-736-A00

RUBBER, STOPPER

$4.49

$

Usually ships in 3-6 days

0

11

Honda 50651-V08-000

COVER, BELT (INNER)

$

$

Not available

12

Honda 63610-V08-010

COVER, BELT

$78.99

$

Usually ships in 3-6 days

0

13

Honda 90101-733-000

BOLT, FLANGE (8X18)

$4.49

$

In Stock, only 1 left!

0

14

Honda 90111-187-000

BOLT, FLANGE (6MM)

$8.99

$

Usually ships in 3-6 days

0

15

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90741-883-810

KEY (5X5X33) (Honda Code 1033505).

$12.99

$

Usually ships in 3-6 days

0

17

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 14

0

18

Honda 94510-10000

CIRCLIP (OUTER) (10MM)

$1.49

$

In Stock, Qty 8

0

19

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0

20

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, Qty 9

0

21

Honda 95701-08012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2581379).

$1.49

$

In Stock, only 2 left!

0

22

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 3 left!

0

24

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 3 left!

0
