FG500 A1 (FZCY) - Honda Tiller, Made in Japan (SN: FZCY-1000001 - FZCY-9999999) CRANKCASE COVER Parts Diagram

Tiller, Made in Japan

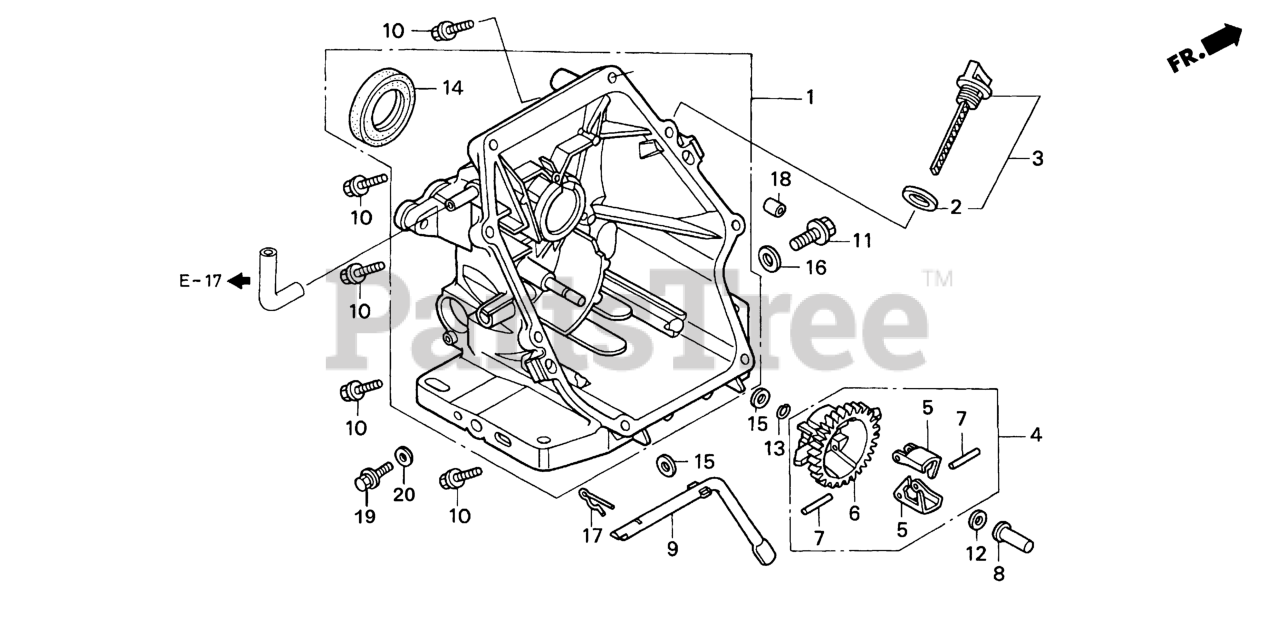

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZL8-408

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$186.99

$

Usually ships in 3-6 days

0

2

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 2 left!

0

3

Honda 15650-ZL8-003

SEE PART DETAILS - SUP; GAUGE ASSY., OIL LEVEL
(Superseded to 15650-ZL8-013)

Note: Use up to Engine SN 1805025.

$5.49

$

In Stock, only 1 left!

0

3

Honda 15650-ZL8-013

SEE PART DETAILS - PRI; GAUGE ASSY., OIL LEVEL

Note: Use from Engine SN 1805026.

$5.49

$

In Stock, only 1 left!

0

4

Honda 16510-ZL8-000

GOVERNOR ASSY.

$12.99

$

In Stock, only 1 left!

0

5

Honda 16511-ZL8-000

WEIGHT, GOVERNOR (Honda Code 5580287).

$1.99

$

In Stock, only 4 left!

0

6

Honda 16512-ZL8-000

HOLDER, GOVERNOR WEIGHT

$5.49

$

In Stock, Qty 12

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 11

0

8

Honda 18350-ZL8-000

SEE PART DETAILS - PRI; ARRESTER, SPARK (TO 1207644)

Note: (Optional)

$38.99

$

Usually ships in 3-6 days

0

9

Honda 16541-Z8A-000

SHAFT, GOVERNOR ARM

$0.99

$

In Stock, Qty 8

0

9

Honda 18356-ZL8-000

PLATE, ARRESTER NUMBER (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional)

$4.99

$

In Stock, only 2 left!

0

10

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional)

$1.49

$

In Stock, Qty 11

0

11

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

Note: Use from Engine SN 1398446. Use up to Engine SN 1398445.

$4.99

$

In Stock, Qty 12

0

12

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$1.99

$

In Stock, Qty 5

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

14

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

$7.49

$

In Stock, Qty 17

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

16

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

Note: Use from Engine SN 1398446. Use up to Engine SN 1398445.

$1.49

$

In Stock, Qty 20+

0

17

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

18

Honda 94301-08200

SEE PART DETAILS - PRI; PIN, DOWEL (8X20)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

Note: Use from Engine SN 1398446.

$4.99

$

In Stock, Qty 12

0

20

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

Note: Use from Engine SN 1398446.

$1.49

$

In Stock, Qty 20+

0
