FG500 A1 (FZCY) - Honda Tiller, Made in Japan (SN: FZCY-1000001 - FZCY-9999999) CARBURETOR Parts Diagram

Tiller, Made in Japan

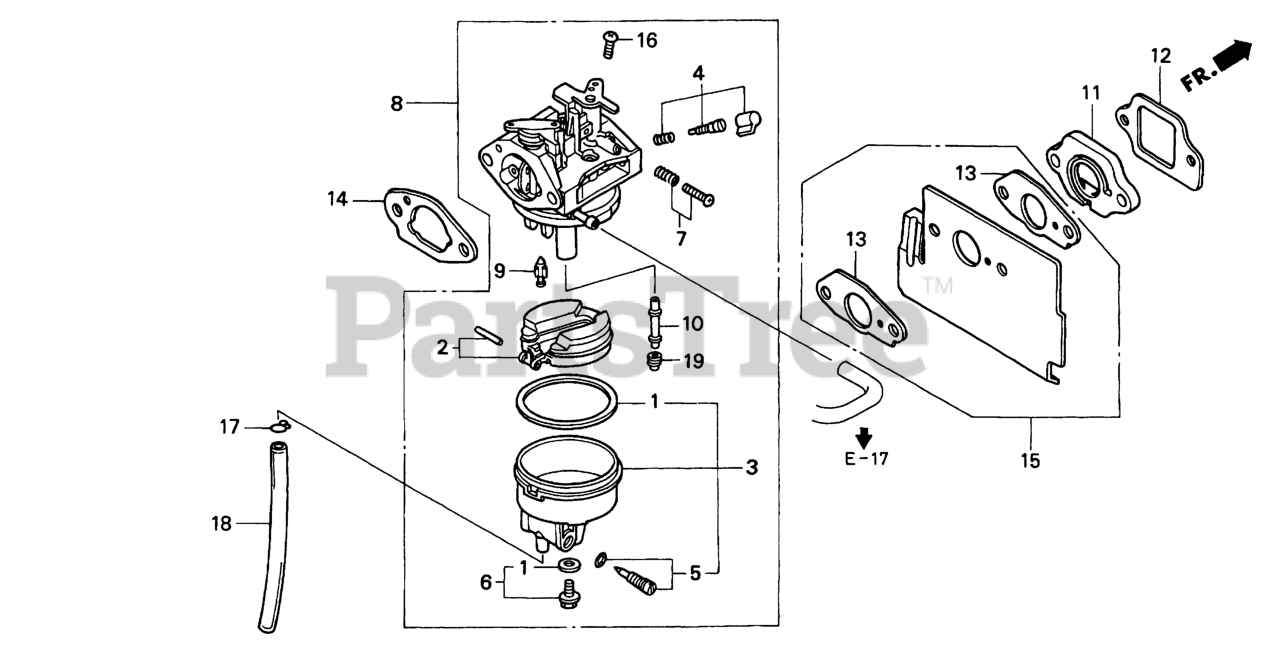

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$13.99

$

In Stock, Qty 15

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$33.99

$

In Stock, only 2 left!

0

3

Honda 16015-ZL8-003

CHAMBER SET, FLOAT

$35.99

$

Usually ships in 3-6 days

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z0J-013

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB61J B)

$45.99

$

In Stock, only 3 left!

0

9

Honda 16155-ZL8-003

VALVE, FLOAT (CARBURETOR NO.)

$41.99

$

Usually ships in 3-6 days

0

10

Honda 16166-ZL8-003

NOZZLE, MAIN (CARBURETOR NO.)

$25.99

$

Usually ships in 3-6 days

0

11

Honda 16211-ZL8-000

INSULATOR, CARBURETOR (Honda Code 5580238).

$4.49

$

In Stock, Qty 20+

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 20+

0

13

Honda 16221-883-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

15

Honda 19650-ZL8-000

GUIDE, AIR

$12.99

$

In Stock, only 4 left!

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 2 left!

0

17

Honda 95002-02650

SEE PART DETAILS - PRI; CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 4 left!

0

18

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$36.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: (Optional)

$12.99

$

In Stock, Qty 5

0

19

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional)

$11.99

$

In Stock, only 2 left!

0

19

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

$13.99

$

In Stock, only 2 left!

0
