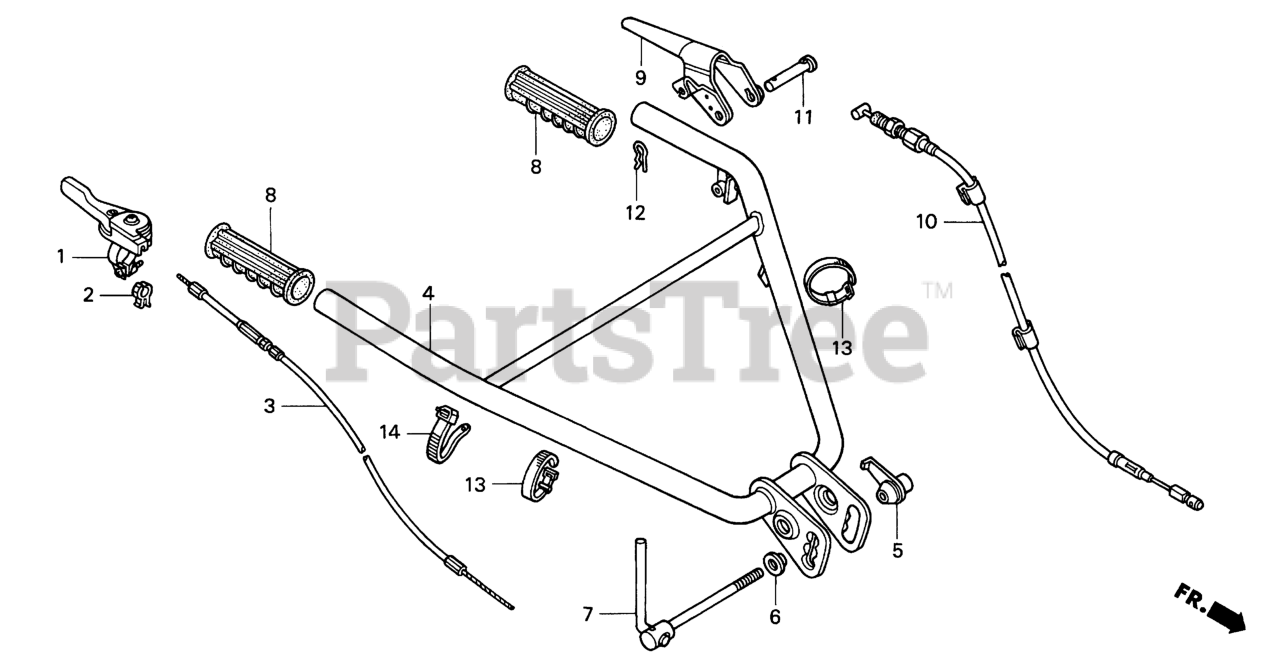

FG400 A1 (FZCW) - Honda Tiller, Made in Japan (SN: FZCW-1000001 - FZCW-9999999) HANDLEBAR Parts Diagram

Tiller, Made in Japan

HANDLEBAR Parts Diagram

  • Title

1

Honda 17850-723-013

LEVER ASSY., THROTTLE (RESIN MOLDED LEVER)

$23.99

$

In Stock, only 2 left!

0

2

Honda 17851-777-003

CLIP, THROTTLE (RESIN MOLDED CLIP)

$2.49

$

In Stock, only 4 left!

0

3

Honda 17910-V08-000

CABLE, THROTTLE

$27.99

$

In Stock, only 1 left!

0

4

Honda 53110-V08-010

SEE PART DETAILS - PRI; PIPE, HANDLE

$

$

Not available

5

Honda 53137-719-000

NUT, HANDLE LOCK

$28.99

$

In Stock, only 2 left!

0

6

Honda 53139-733-000

NUT, SPECIAL

$6.99

$

Usually ships in 3-6 days

0

7

Honda 53140-728-680

LEVER, HANDLE ADJUSTING

$46.99

$

Usually ships in 3-6 days

0

8

Honda 53321-708-000

GRIP, HANDLE

$18.99

$

Usually ships in 3-6 days

0

9

Honda 54410-V08-000

LEVER, CLUTCH

$

$

Not available

10

Honda 54510-V08-000

CABLE, MAIN CLUTCH

$29.99

$

Usually ships in 3-6 days

0

11

Honda 90106-VA8-000

PIN, CLUTCH LEVER

$6.99

$

Usually ships in 3-6 days

0

12

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

13

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90679-SG9-E01

BAND, SUCTION HOSE (BLACK)

$4.99

$

Usually ships in 3-6 days

0
