FG400 A1 (FZCW) - Honda Tiller, Made in Japan (SN: FZCW-1000001 - FZCW-9999999) ENGINE BED Parts Diagram

Tiller, Made in Japan

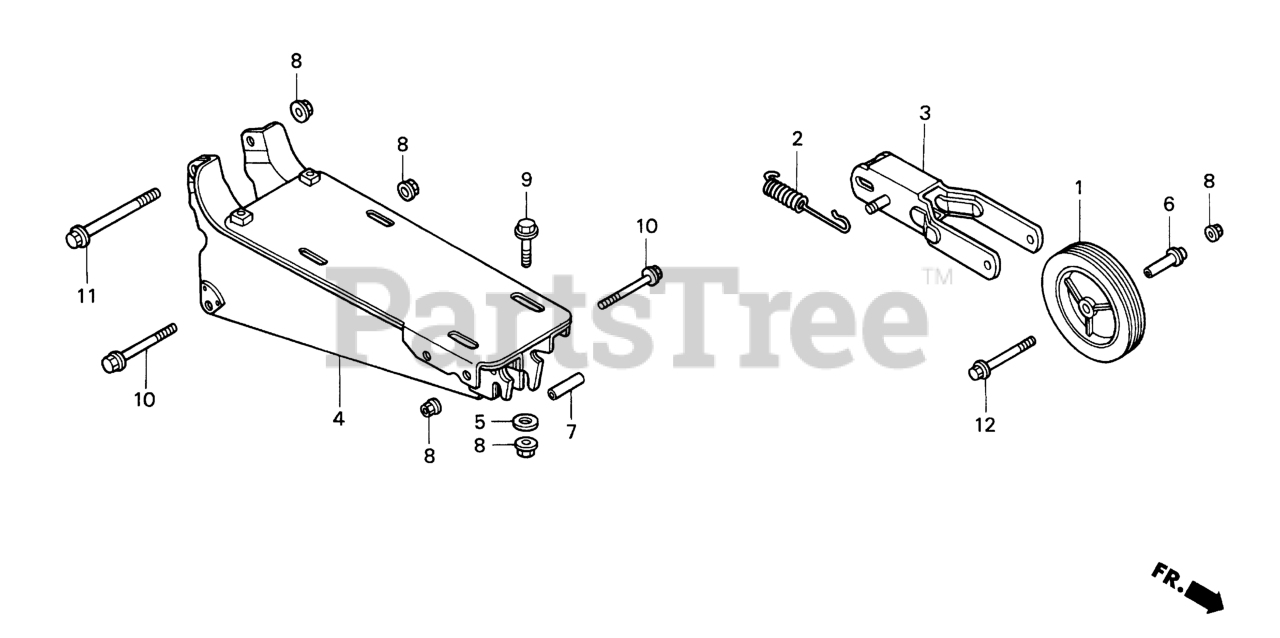

ENGINE BED Parts Diagram

  • Title
1

Honda 112H62-CP

SEE PART DETAILS - PRI; WHEEL (7")

$13.99

$

In Stock, only 1 left!

0

2

Honda 43151-V08-000

SPRING, RETURN

$11.99

$

In Stock, only 1 left!

0

3

Honda 44760-V08-010

BEAM, FR. WHEEL
(Superseded to 44760-V08-020)

$27.99

$

Usually ships in 3-6 days

0

3

Honda 44760-V08-020

BEAM, FR. WHEEL

$27.99

$

Usually ships in 3-6 days

0

4

Honda 51110-V08-000

SEE PART DETAILS - SUP; BED, ENGINE

$

$

Currently unavailable

5

Honda 90402-344-820

WASHER (8X22)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 91553-V08-010

COLLAR, FR. WHEEL

$9.49

$

Usually ships in 3-6 days

0

7

Honda 91554-V08-000

COLLAR, ENGINE BED

$5.99

$

Usually ships in 3-6 days

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

Usually ships in 3-6 days

0

9

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

10

Honda 95701-08055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X55) (Honda Code 2774438).

$3.49

$

In Stock, only 2 left!

0

11

Honda 95701-08065-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X65)

$2.49

$

In Stock, Qty 5

0

12

Honda 95701-08070-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X70)

$3.99

$

Usually ships in 3-6 days

0
