FG300D-ES03 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

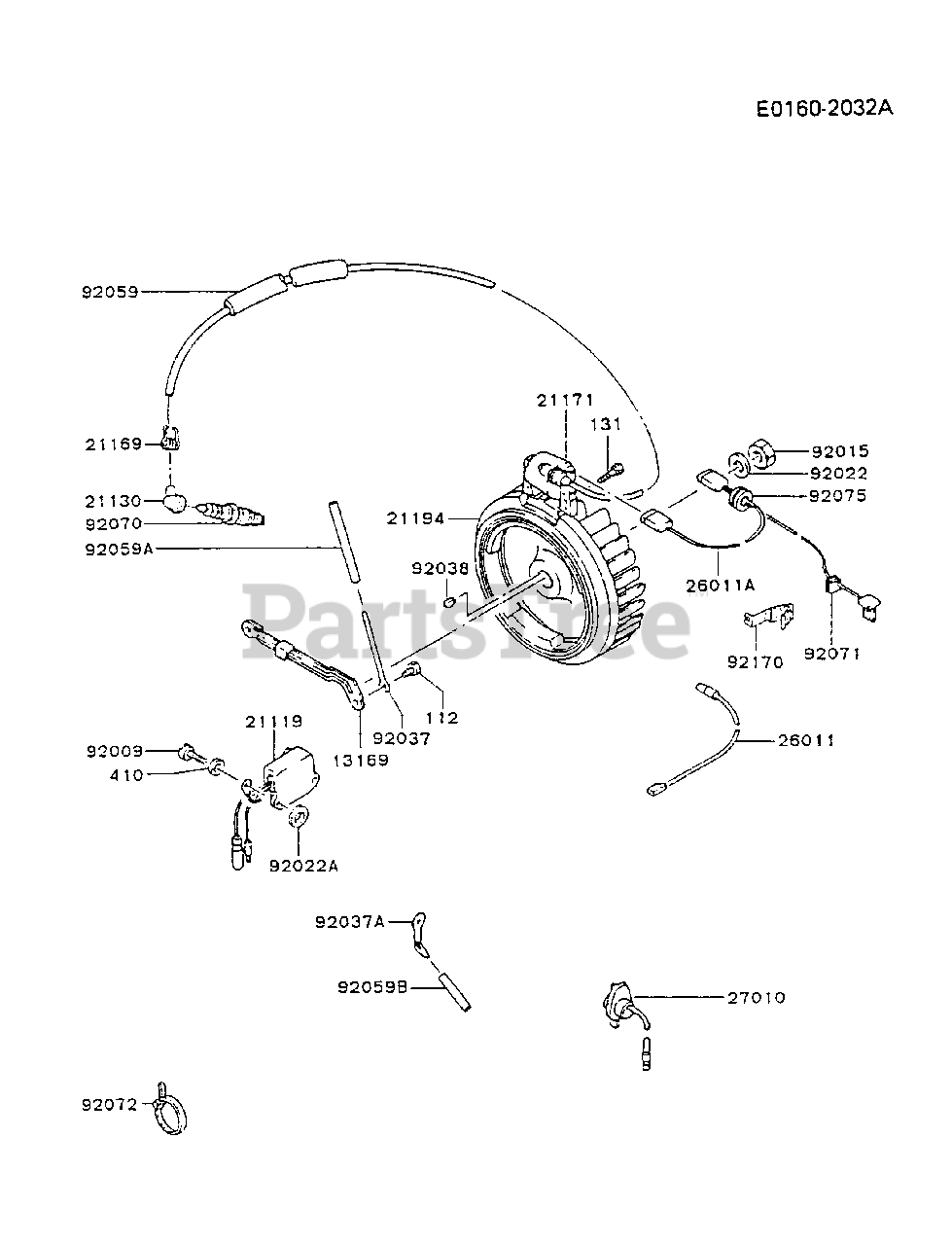

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
13169

$

$

Not available

21119

$

$

Not available

21130

Kawasaki 21130-2051

CAP-SPARK PLUG
(Superseded to 21130-2066)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21171

Kawasaki 21171-2148

COIL-ASSY-IGNITION

$

$

Not available

21194

Kawasaki 21194-2177

FLYWHEEL-COMP

$

$

Not available

26011

Kawasaki 26011-2178

WIRE-LEAD
(Superseded to 26011-2241)

$

$

Not available

26011A

$

$

Not available

27010

Kawasaki 27010-2052

SWITCH
(Superseded to 315801-8511A)

$13.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2136

SCREW
(Superseded to 92009-2339)

$

$

Not available

92015

Kawasaki 92015-2157

NUT

Note: M14-R

$

$

Not available

92022

$13.99

$

Usually ships in 2-5 days

0

92022A

$5.49

$

Usually ships in 2-5 days

0

92037

$1.49

$

Usually ships in 2-5 days

0

92037A

$

$

Not available

$2.99

$

In Stock, Qty 14

0

92059

$

$

Not available

92059A

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92059B

$0.99

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-2052

PLUG-SPARK,BP4HS
(Superseded to BP4HS)

$3.49

$

Usually ships in 2-5 days

0

92071

$

$

Not available

92072

Kawasaki 92072-2003

BAND
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

92075

Kawasaki 92075-2095

DAMPER
(Superseded to 92160-2031)

$

$

Not available

92170

$

$

Not available

112

Kawasaki 112B0608

BOLT-UPSET
(Superseded to 112AA0608)

$0.99

$

In Stock, only 3 left!

0

131

Kawasaki 131B0520

BOLT-FLANGED

$1.99

$

Usually ships in 2-5 days

0

410

Kawasaki 410B0500

W-PLAIN-S
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 9

0
