FG300D-ES03 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

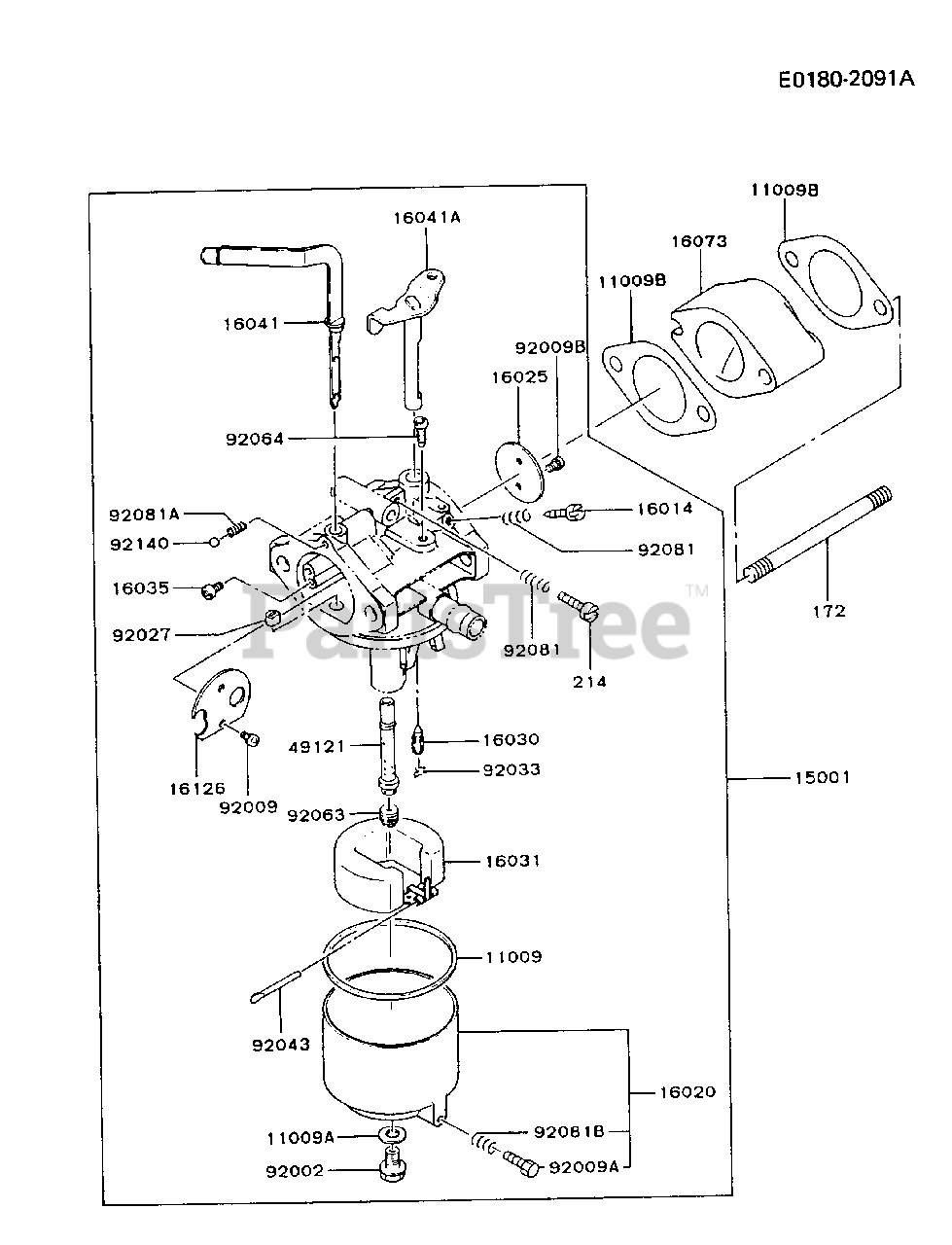

CARBURETOR Parts Diagram

  • Title
11009

Kawasaki 11009-2024

GASKET
(Superseded to 313650-6128-00)

$4.49

$

In Stock, only 4 left!

0

11009A

Kawasaki 11009-2036

GASKET
(Superseded to 314499-6159A)

$1.49

$

In Stock, only 3 left!

0

11009B

$

$

Not available

15001

Kawasaki 15001-2792

CARBURETOR ASSY
(Superseded to 15001-2664)

$

$

Not available

16014

Kawasaki 16014-2003

SCREW-PILOT AIR
(Superseded to 313650-6114-00)

$

$

Not available

16020

Kawasaki 16020-2005

CHAMBER-FLOAT
(Superseded to 16184-6001)

$46.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-2134

VALVE-THROTTLE,#130
(Superseded to 16025-2131)

$

$

Not available

16030

Kawasaki 16030-2075

VALVE-FLOAT

$23.99

$

Usually ships in 2-5 days

0

16031

Kawasaki 16031-2065

FLOAT
(Superseded to 16031-2006)

$40.99

$

Usually ships in 2-5 days

0

16035

Kawasaki 16035-2061

JET-AIR,#1.2

$

$

Not available

16041

Kawasaki 16041-2053

SHAFT-CARBURETOR,CHOKE
(Superseded to 315801-6142A)

$20.99

$

Usually ships in 2-5 days

0

16041A

Kawasaki 16041-2052

SHAFT-CARBURETOR
(Superseded to 315823-6139A)

$

$

Not available

16073

$

$

Not available

16126

Kawasaki 16126-2054

VALVE
(Superseded to 315801-6102A)

$

$

Not available

49121

Kawasaki 49121-2110

NOZZLE-MAIN,#15A

$

$

Not available

92002

$4.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2081

SCREW
(Superseded to 92009-2026)

$1.99

$

In Stock, only 1 left!

0

92009A

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2080

SCREW
(Superseded to 92009-3710)

$

$

Not available

92027

$3.99

$

Usually ships in 2-5 days

0

92033

$

$

Not available

$3.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2152

JET-MAIN,#87.5

$

$

Not available

92064

Kawasaki 92064-2001

JET-PILOT,#40

$

$

Not available

92081

$2.99

$

In Stock, only 3 left!

0

92081A

$6.99

$

In Stock, only 4 left!

0

92081B

$3.49

$

In Stock, only 3 left!

0

92140

Kawasaki 92140-2001

BALL
(Superseded to 313122-6104)

$

$

Not available

172

Kawasaki 172G0692

BOLT-STUD

$

$

Not available

214

Kawasaki 214B0414

SCREW-PAN+-
(Superseded to 214AA0414)

$0.99

$

In Stock, only 2 left!

0
