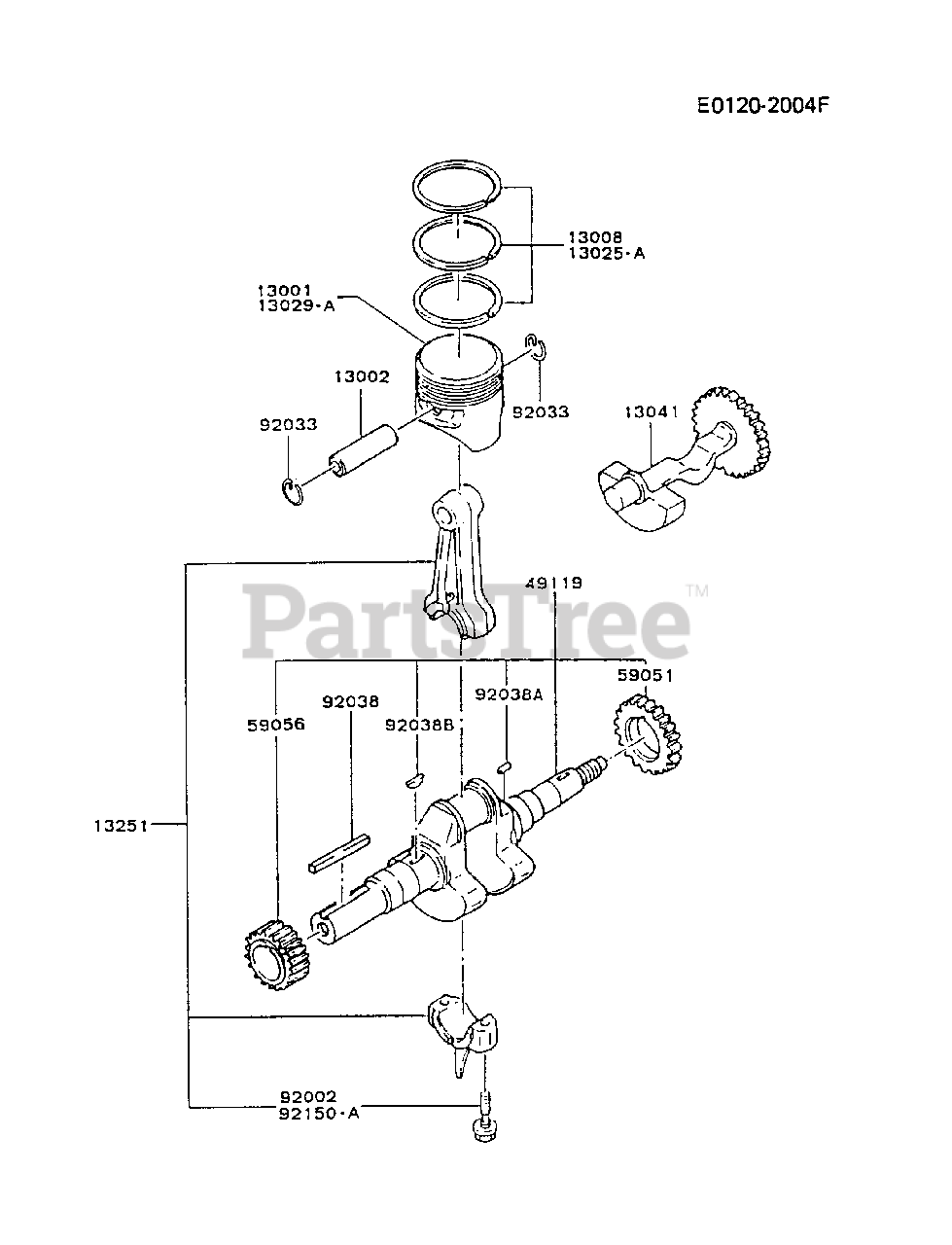

FG300D-DS12 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-2054

PISTON-ENGINE
(Superseded to 315801-3111F)

$

$

Not available

13002

Kawasaki 13002-2068

PIN-PISTON

$

$

Not available

13008

Kawasaki 13008-6006

RING-SET-PISTON
(Superseded to 315801-3010B)

$40.99

$

Usually ships in 2-5 days

0

13025

Kawasaki 13025-2071

RING-SET-PISTON L,0.25

$

$

Not available

13025A

Kawasaki 13025-2072

RING-SET-PISTON L,0.50

$

$

Not available

13029

Kawasaki 13029-2075

PISTON-ENGINE L,0.25

$

$

Not available

13029A

Kawasaki 13029-2076

PISTON-ENGINE L,0.50

$

$

Not available

13041

$

$

Not available

13251

Kawasaki 13251-6028

ROD-ASSY-CONNECTING
(Superseded to 13251-6011)

$

$

Not available

49119

Kawasaki 49119-6061

CRANKSHAFT-ASSY

$

$

Not available

59051

$

$

Not available

59056

Kawasaki 59056-2015

GEAR-HELICAL

$

$

Not available

92033

$0.99

$

Usually ships in 2-5 days

0

92038

Kawasaki 92038-2004

KEY
(Superseded to 92038-2101)

$4.99

$

Usually ships in 2-5 days

0

92038A

$

$

Not available

92038B

$2.99

$

In Stock, Qty 14

0

92150

$

$

Not available
