FG300D-DS11 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

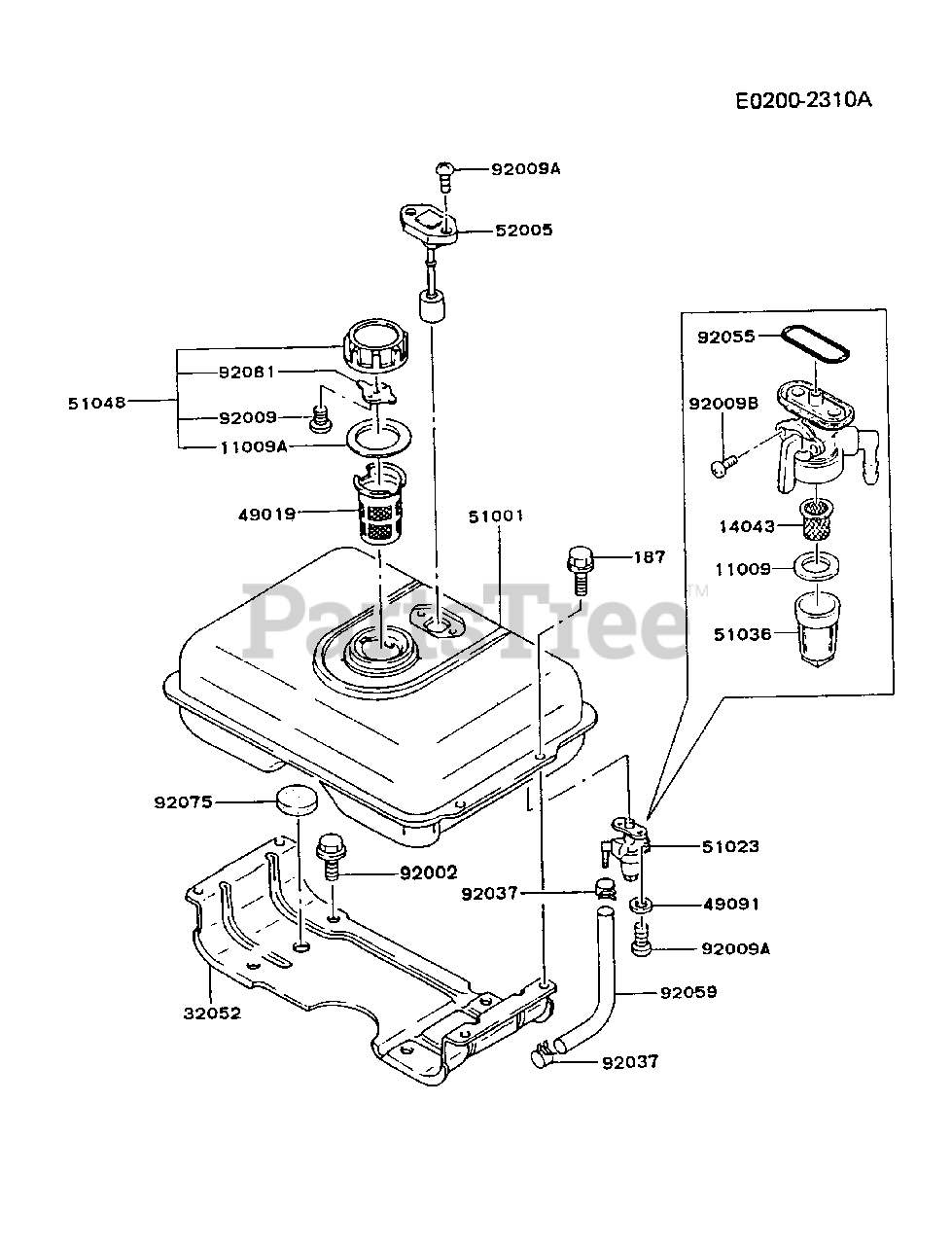

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title
11009

Kawasaki 11060-2063

GASKET
(Superseded to 315801-6518A)

$1.49

$

In Stock, Qty 13

0

11009A

Kawasaki 11009-2115

GASKET
(Superseded to 11009-2044)

$2.49

$

Usually ships in 2-5 days

0

14043

Kawasaki 14043-2052

FILTER
(Superseded to 315801-6519A)

$4.99

$

In Stock, only 1 left!

0

32052

Kawasaki 32052-2053-9H

BRACKET-TANK

$

$

Not available

49019

Kawasaki 49019-2051

FILTER-FUEL
(Superseded to 49019-2003)

$6.99

$

In Stock, only 1 left!

0

49091

Kawasaki 49091-2053

WASHER-SEAL

$0.99

$

In Stock, Qty 8

0

51001

Kawasaki 51001-2053-9H

TANK-COMP-FUEL

$

$

Not available

51023

Kawasaki 51023-2096

TAP-ASSY
(Superseded to 51023-2051)

$31.99

$

In Stock, only 1 left!

0

51036

Kawasaki 51036-2062

CUP,FUEL TAP
(Superseded to 51036-2052)

$3.49

$

In Stock, Qty 9

0

51048

Kawasaki 51048-2055

CAP-ASSY-TANK
(Superseded to 51048-2071)

$12.99

$

Usually ships in 2-5 days

0

52005

Kawasaki 52005-2072

GAUGE,FUEL
(Superseded to 52005-2139)

$29.99

$

In Stock, only 1 left!

0

92002

$

$

Not available

92009

Kawasaki 92009-2021

SCREW
(Superseded to 314401-6732A)

$0.99

$

In Stock, only 3 left!

0

92009A

Kawasaki 92009-2020

SCREW
(Superseded to 92009-2440)

$0.99

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-1123

SCREW
(Superseded to 220B0305)

$0.99

$

In Stock, only 1 left!

0

92037

Kawasaki 92037-2052

CLAMP
(Superseded to 92170-2084)

$0.99

$

In Stock, only 1 left!

0

92055

$1.49

$

In Stock, Qty 5

0

92059

$

$

Not available

92075

$

$

Not available

92081

$2.49

$

In Stock, only 1 left!

0

187

Kawasaki 187B0614

BOLT-UPSET-WSP
(Superseded to 187AA0614)

$1.99

$

In Stock, only 1 left!

0
