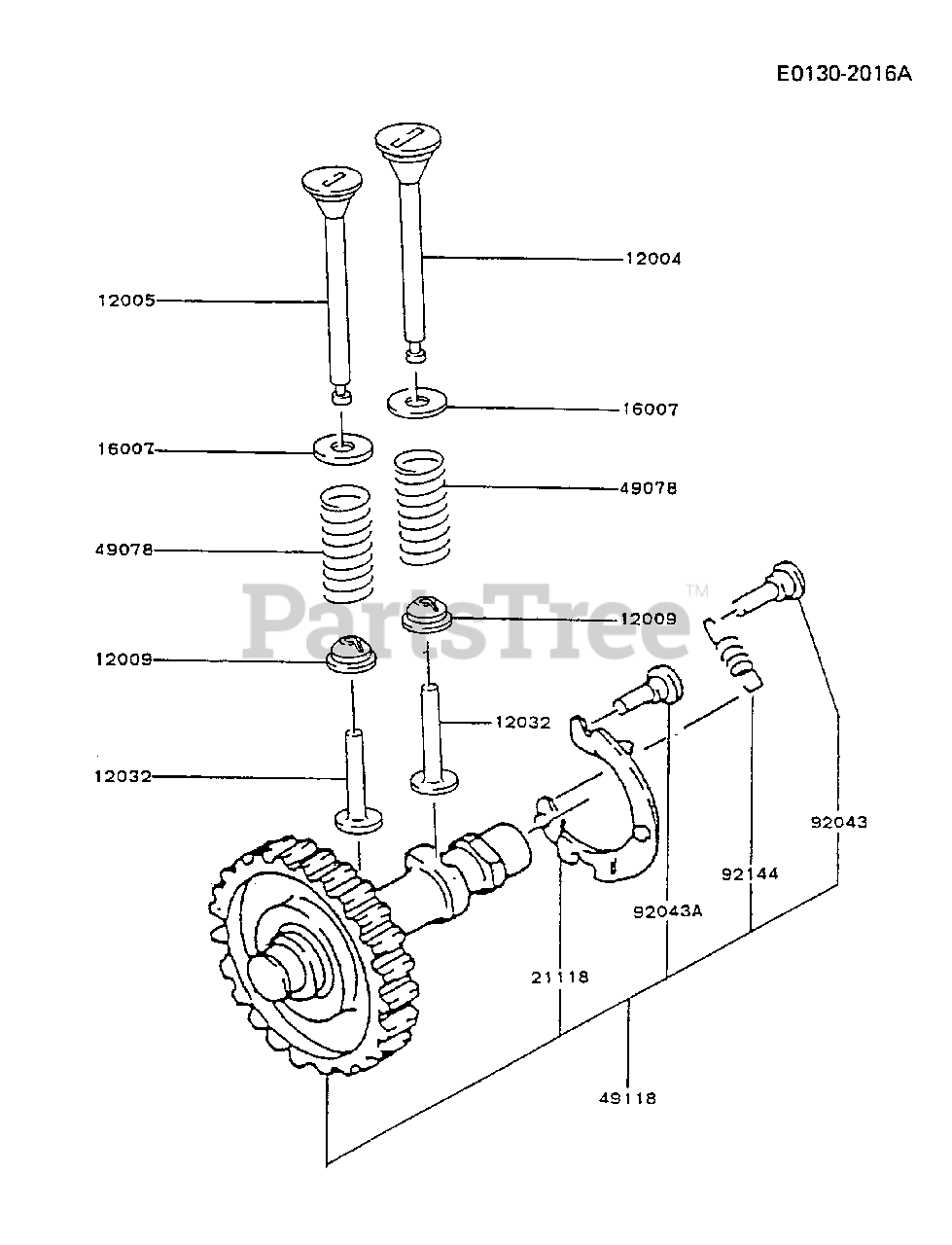

FG300D-CS12 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

VALVE/CAMSHAFT Parts Diagram

  • Title
12004

Kawasaki 12004-2088

VALVE-INTAKE

$

$

Not available

12005

Kawasaki 12005-2055

VALVE-EXHAUST
(Superseded to 315801-2112A)

$42.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 12009-2053

RETAINER-VALVE SPRING
(Superseded to 39108-2052)

$1.49

$

Usually ships in 2-5 days

0

12032

$

$

Not available

16007

Kawasaki 16007-2051

SEAT-SPRING
(Superseded to 315801-2121A)

$1.49

$

Usually ships in 2-5 days

0

21118

Kawasaki 21118-2067

DECOMPRESSOR

$

$

Not available

49078

Kawasaki 49078-2053

SPRING-ENGINE VALVE
(Superseded to 315801-2113A)

$4.99

$

Usually ships in 2-5 days

0

49118

Kawasaki 49118-6024

CAMSHAFT-COMP
(Superseded to 12044-2120)

$

$

Not available

$3.49

$

Usually ships in 2-5 days

0

92043A

$

$

Not available

92144

$5.49

$

Usually ships in 2-5 days

0
