FG300D-CS12 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

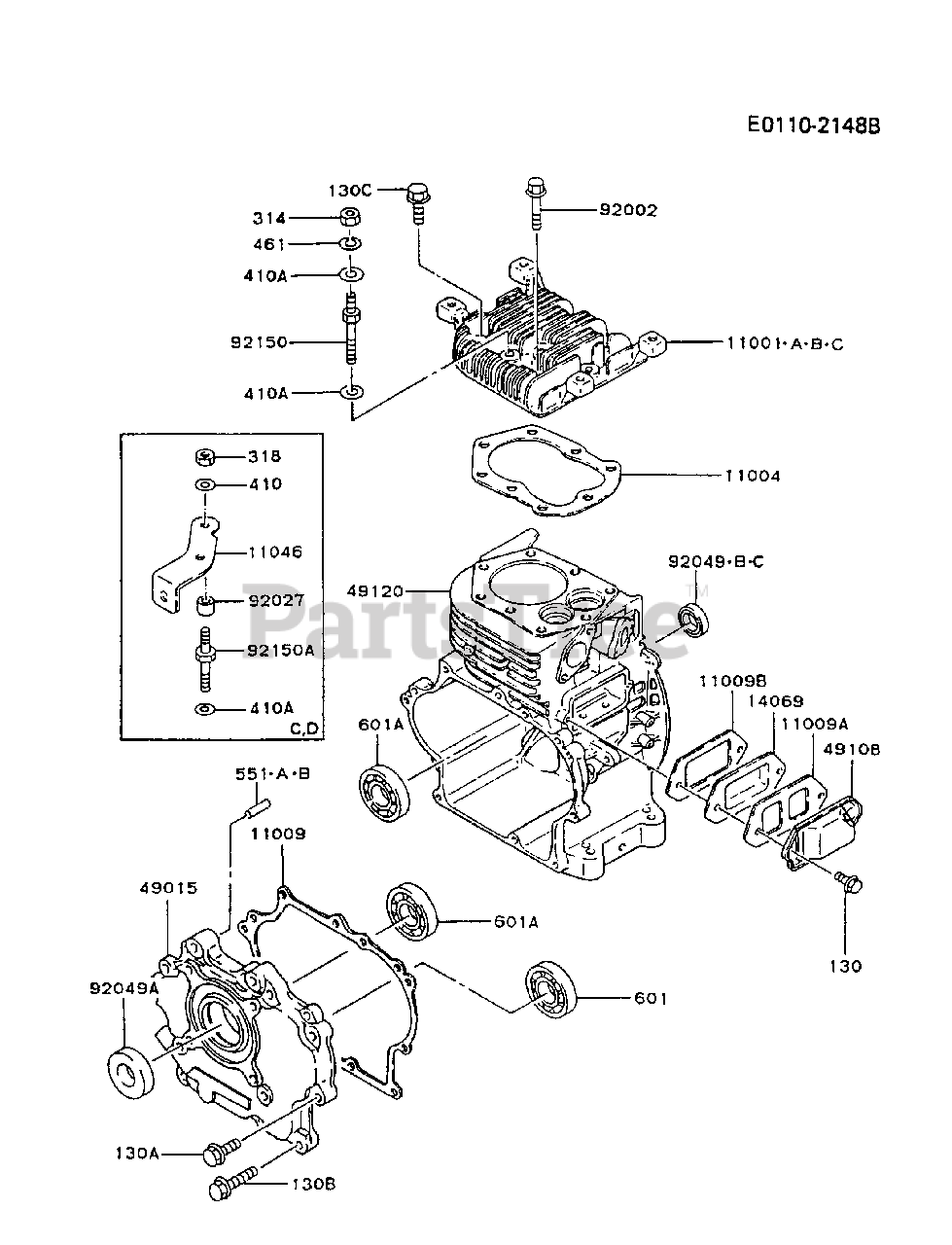

CYLINDER/CRANKCASE Parts Diagram

  • Title
11001A

Kawasaki 11001-2055

HEAD-CYLINDER
(Superseded to 11001-2104)

$100.99

$

Usually ships in 2-5 days

0

11001C

Kawasaki 11001-2104

HEAD-CYLINDER
(Superseded to 11001-2055)

$100.99

$

Usually ships in 2-5 days

0

11004

Kawasaki 11004-2055

GASKET-HEAD

$

$

Not available

11009

Kawasaki 11009-2113

GASKET,CRANKCASE COVER
(Superseded to 11060-2052)

$

$

Not available

11009A

Kawasaki 11009-2112

GASKET
(Superseded to 11060-2053)

$3.49

$

In Stock, only 1 left!

0

11009B

Kawasaki 11009-2015

GASKET
(Superseded to 316470-1232-00)

$1.99

$

In Stock, only 4 left!

0

11046

$

$

Not available

14069

Kawasaki 14069-2051

BREATHER
(Superseded to 315801-1510B)

$8.49

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-6022

COVER-CRANKCASE

$

$

Not available

49108

Kawasaki 49108-2054

COVER-VALVE CHAMBER

$

$

Not available

49120

Kawasaki 49120-2163

CRANKCASE-COMP

$

$

Not available

92002

Kawasaki 92002-2054

BOLT
(Superseded to 315801-1181A)

$4.99

$

Usually ships in 2-5 days

0

92027

$

$

Not available

92049A

$

$

Not available

92049B

$6.49

$

In Stock, only 1 left!

0

92150A

$

$

Not available

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 18

0

130A

Kawasaki 130B0828

BOLT-FLANGED

$

$

Not available

130B

Kawasaki 130B0835

BOLT-FLANGED
(Superseded to 130AA0835)

$1.49

$

Usually ships in 2-5 days

0

130C

Kawasaki 130G1045

BOLT-FLANGED

$

$

Not available

318

Kawasaki 318B0800

NUT-HEX-SMALL
(Superseded to 318AA0800)

$0.99

$

In Stock, only 4 left!

0

410

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

410A

Kawasaki 410B1000

W-PLAIN-S
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0814

PIN-DOWEL

$

$

Not available

601

Kawasaki 601A6204

BEARING-BALL

$16.99

$

In Stock, only 3 left!

0

601A

Kawasaki 601A6206

BEARING-BALL
(Superseded to 601B6206)

$

$

Not available
