FG300D-CS11 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

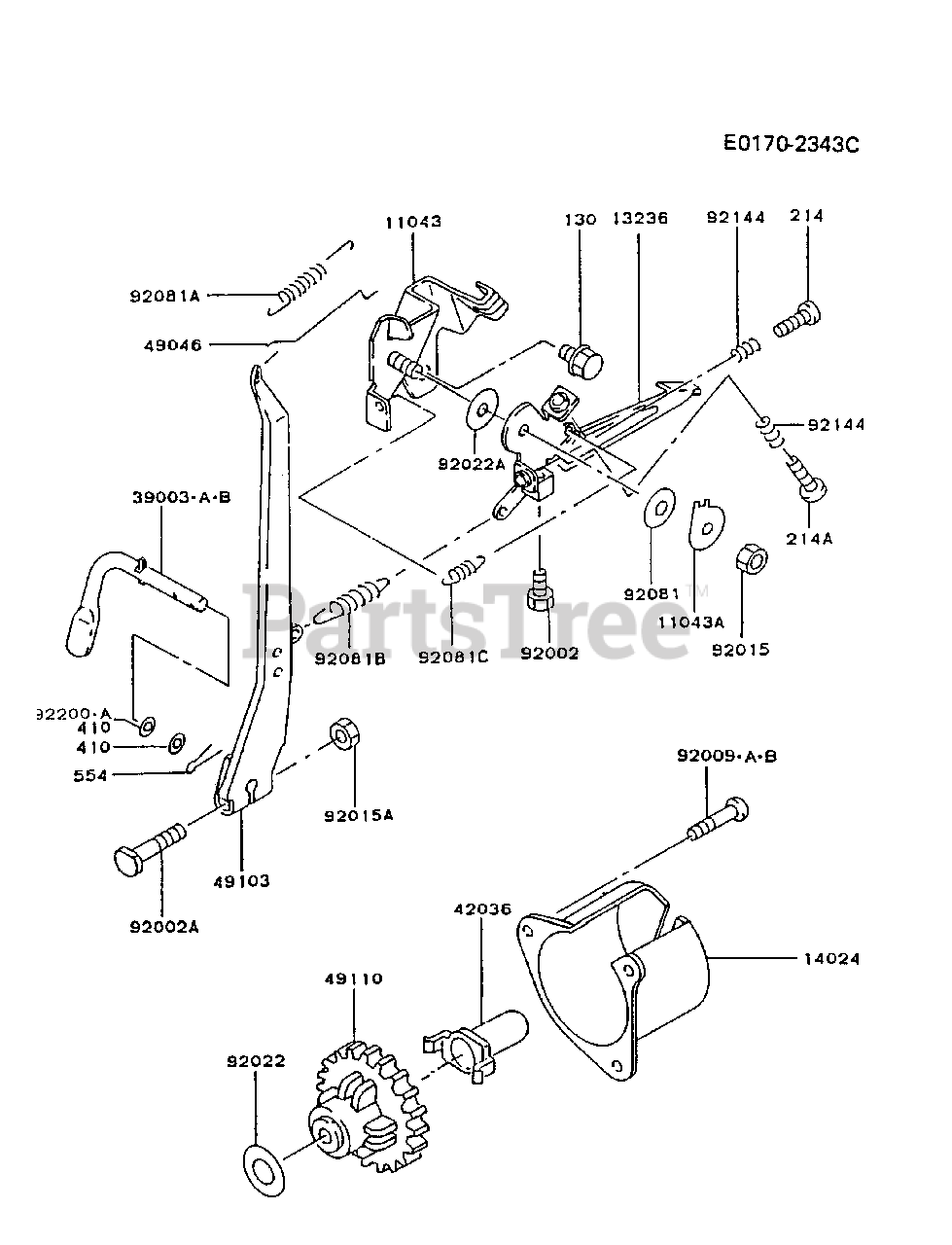

CONTROL-EQUIPMENT Parts Diagram

  • Title
11043

$

$

Not available

11043A

$

$

Not available

13236

Kawasaki 13236-2005

LEVER-COMP

$

$

Not available

14024

Kawasaki 14024-2067

COVER
(Superseded to 14025-2052)

$

$

Not available

39003

Kawasaki 39003-2053

ARM-PIVOT
(Superseded to 39003-2070)

$

$

Not available

39003B

Kawasaki 39003-2070

ARM-PIVOT
(Superseded to 39003-2053)

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49046

Kawasaki 49046-2064

ROD-GOVERNOR

$

$

Not available

49103

Kawasaki 49103-2065

ARM-GOVERNOR

$

$

Not available

49110

Kawasaki 49110-2052

GOVERNOR-ASSY
(Superseded to 49110-2079)

$

$

Not available

92002

Kawasaki 92002-2091

BOLT
(Superseded to 316671-5381A)

$

$

Not available

92002A

$1.99

$

In Stock, Qty 6

0

92009

Kawasaki 92009-2101

SCREW
(Superseded to 92009-2307)

$0.99

$

In Stock, only 1 left!

0

92009B

$0.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92015A

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 13

0

92022A

$1.99

$

In Stock, only 3 left!

0

92081

$0.99

$

In Stock, only 3 left!

0

92081A

$

$

Not available

92081B

$

$

Not available

92081C

Kawasaki 92081-2136

SPRING
(Superseded to 92144-2222)

$

$

Not available

92144

$0.99

$

In Stock, only 2 left!

0

92200A

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 18

0

214

Kawasaki 214B0515

SCREW-PAN+-
(Superseded to 214AA0516)

$0.99

$

In Stock, Qty 20+

0

214A

Kawasaki 214B0518

SCREW-PAN+-
(Superseded to 214AA0518)

$0.99

$

Usually ships in 2-5 days

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
