FG300D-CS09 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

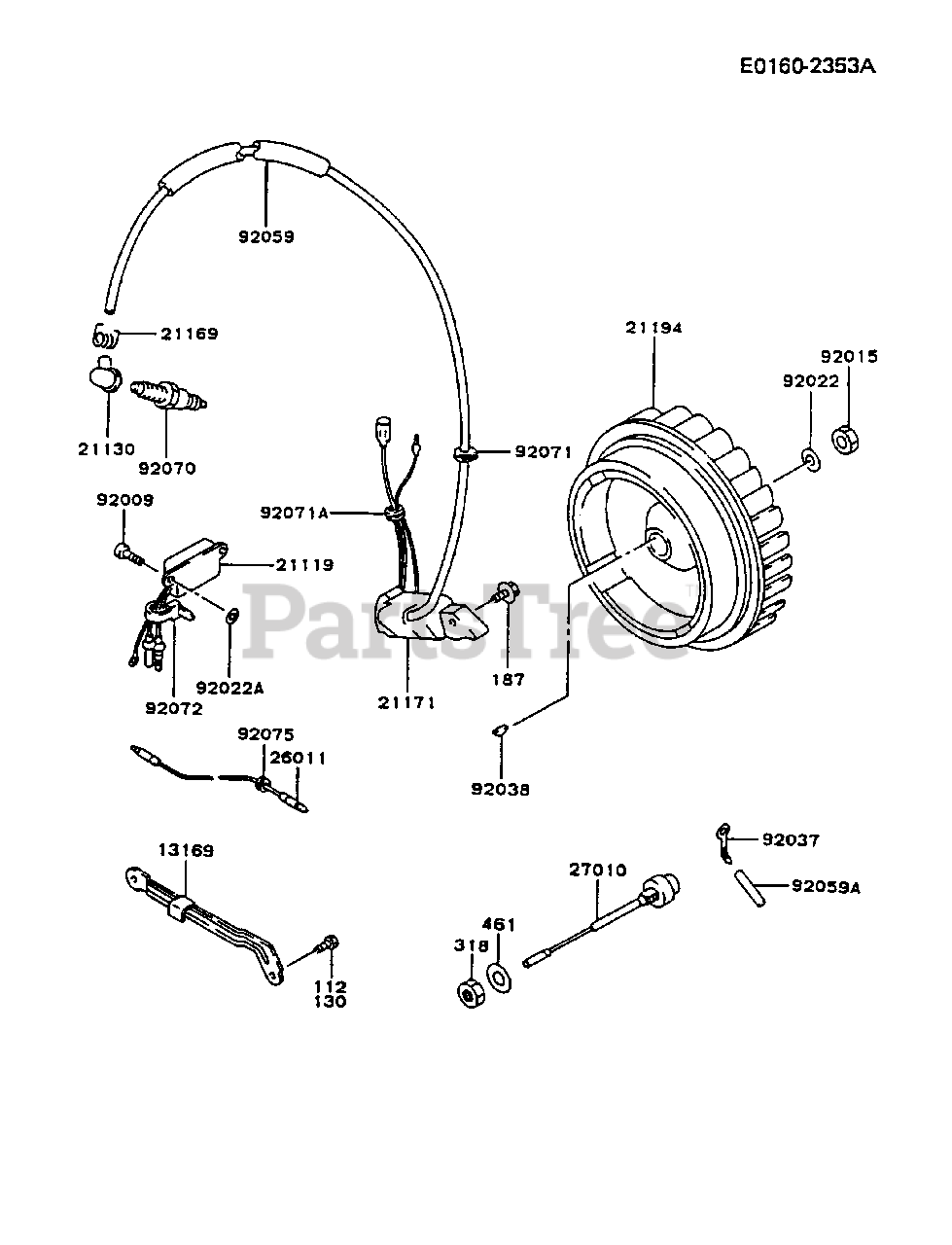

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
13169

$

$

Not available

21119

Kawasaki 21119-2052

IGNITER
(Superseded to 315801-8465B)

$

$

Not available

21130

Kawasaki 21130-2066

CAP-SPARK PLUG
(Superseded to 21130-2001)

$2.49

$

In Stock, only 2 left!

0

21169

$

$

Not available

21171

Kawasaki 21171-2066

COIL-ASSY-IGNITION
(Superseded to 315811-8103A)

$

$

Not available

21194

Kawasaki 21194-2121

FLYWHEEL-COMP

$

$

Not available

26011

$

$

Not available

27010

$

$

Not available

92009

Kawasaki 92009-2102

SCREW
(Superseded to 92009-2339)

$

$

Not available

92015

Kawasaki 92015-2157

NUT

Note: M14-R

$

$

Not available

92022

$13.99

$

Usually ships in 2-5 days

0

92022A

$5.49

$

Usually ships in 2-5 days

0

92037

$

$

Not available

$2.99

$

In Stock, Qty 13

0

92059

Kawasaki 92059-2051

TUBE,7.5X10X215

$

$

Not available

92059A

Kawasaki 92059-2156

TUBE,5X6X35

$0.99

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-2052

PLUG-SPARK,BP4HS
(Superseded to BP4HS)

Note: NGK

$

$

Not available

92071

$

$

Not available

92071A

$

$

Not available

92072

Kawasaki 92072-2003

BAND
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

92075

Kawasaki 92075-2095

DAMPER
(Superseded to 92160-2031)

$

$

Not available

112

Kawasaki 112B0608

BOLT-UPSET
(Superseded to 112AA0608)

$0.99

$

In Stock, only 3 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

187

Kawasaki 187B0625

BOLT-UPSET-WSP
(Superseded to 187AA0625)

$

$

Not available

318

Kawasaki 318B0800

NUT-HEX-SMALL
(Superseded to 318AA0800)

$0.99

$

In Stock, only 4 left!

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
