FG300D-AS16 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

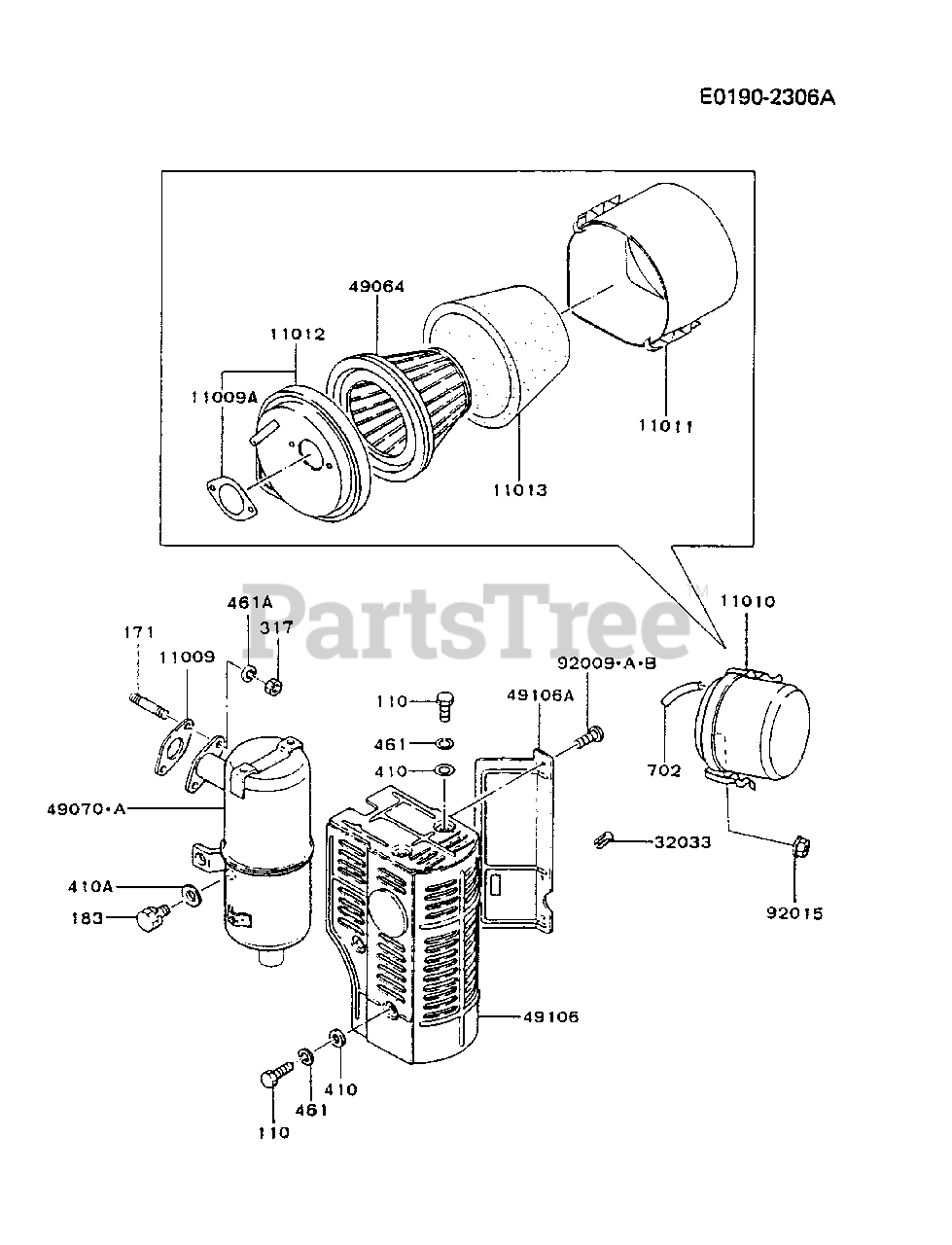

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009A

$1.99

$

Usually ships in 2-5 days

0

11010

Kawasaki 11010-2355-9H

FILTER-ASSY-AIR
(Superseded to 11010-2355)

$

$

Not available

11011

Kawasaki 11011-2210-9H

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2210

CAP,AIR FILTER

$

$

Not available

11013

Kawasaki 11013-2103

ELEMENT-AIR FILTER

$15.99

$

Usually ships in 2-5 days

0

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

49064

Kawasaki 49064-2066

FILTER-AIR

$52.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-2142-9Y

MUFFLER-COMP

$

$

Not available

49106

Kawasaki 49106-2281-9X

COVER-MUFFLER

$

$

Not available

49106A

Kawasaki 49106-2321-9X

COVER-MUFFLER

$

$

Not available

92009

Kawasaki 92009-2101

SCREW
(Superseded to 92009-2307)

$0.99

$

In Stock, only 1 left!

0

92009B

$0.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

110

Kawasaki 110R0610

BOLT
(Superseded to 110N0610)

$

$

Not available

171

Kawasaki 171G0818

BOLT-STUD
(Superseded to 171BA0818)

$1.99

$

In Stock, only 1 left!

0

183

Kawasaki 183B0814

BOLT-UPSET-WS-SMALL

$

$

Not available

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

410A

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 10

0

461A

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

702

Kawasaki 702A071000

TUBE-RUBBER,L=127MM
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0

11009

Kawasaki 11009-2128

GASKET,MUFFLER
(Superseded to 11060-2056)

$

$

Not available
