FG270G-AS00 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

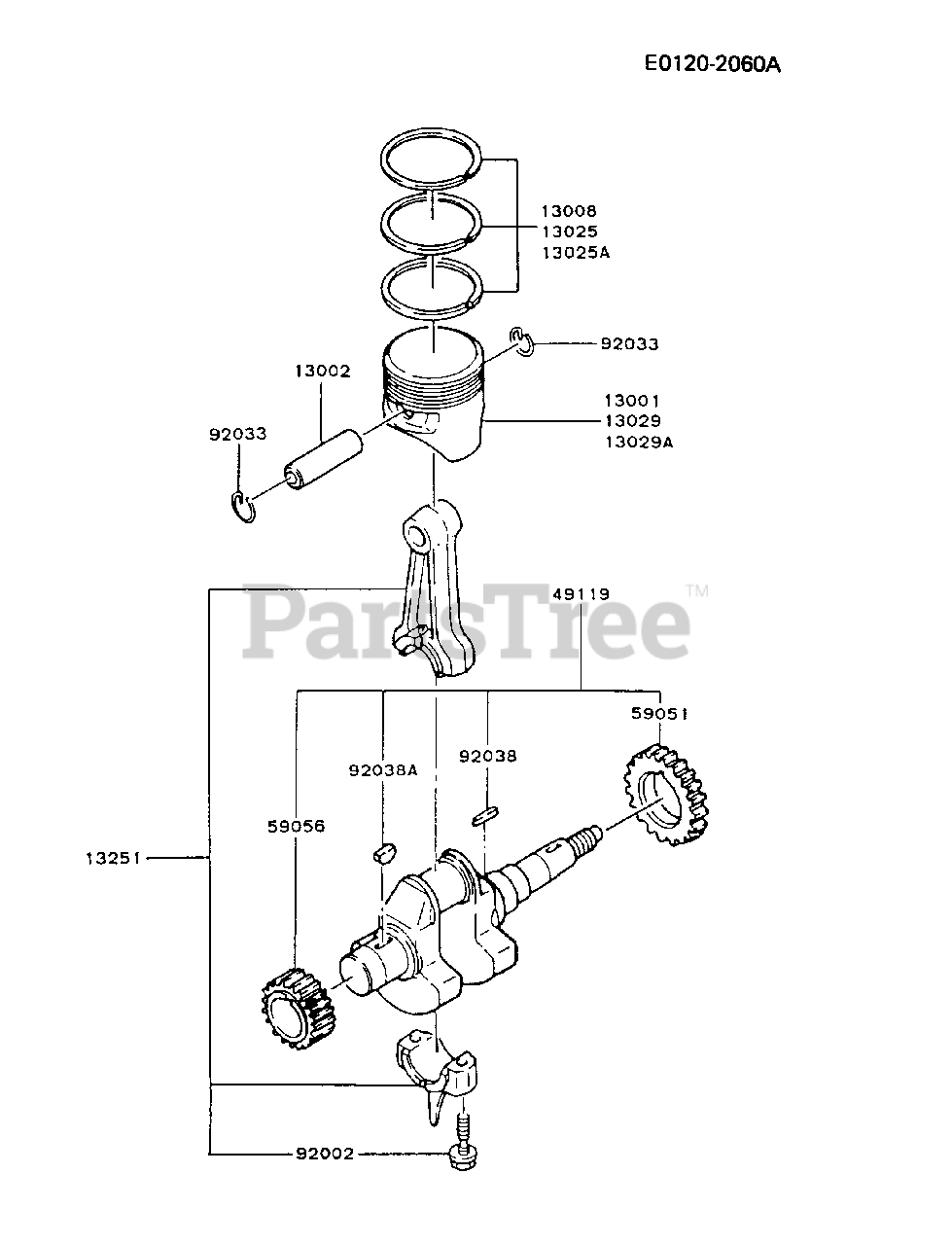

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-2053

PISTON-ENGINE

$

$

Not available

13002

Kawasaki 13002-2068

PIN-PISTON

$

$

Not available

13008

Kawasaki 13008-6036

RING-SET-PISTON
(Superseded to 315701-3010A)

$52.99

$

Usually ships in 2-5 days

0

13025

Kawasaki 13025-2069

RING-SET-PISTON L,0.25

$

$

Not available

13025A

Kawasaki 13025-2070

RING-SET-PISTON L,0.50

$

$

Not available

13029

Kawasaki 13029-2073

PISTON-ENGINE L,0.25

$

$

Not available

13029A

Kawasaki 13029-2074

PISTON-ENGINE L,0.50

$

$

Not available

13251

Kawasaki 13251-6028

ROD-ASSY-CONNECTING
(Superseded to 13251-6011)

$

$

Not available

49119

Kawasaki 49119-6066

CRANKSHAFT-ASSY

$

$

Not available

59051

$

$

Not available

59056

Kawasaki 59056-2010

GEAR-HELICAL

$

$

Not available

92002

Kawasaki 92002-2056

BOLT
(Superseded to 92150-2193)

$

$

Not available

92033

$0.99

$

Usually ships in 2-5 days

0

$

$

Not available

92038A

$2.99

$

In Stock, Qty 14

0
