FG270G-AS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

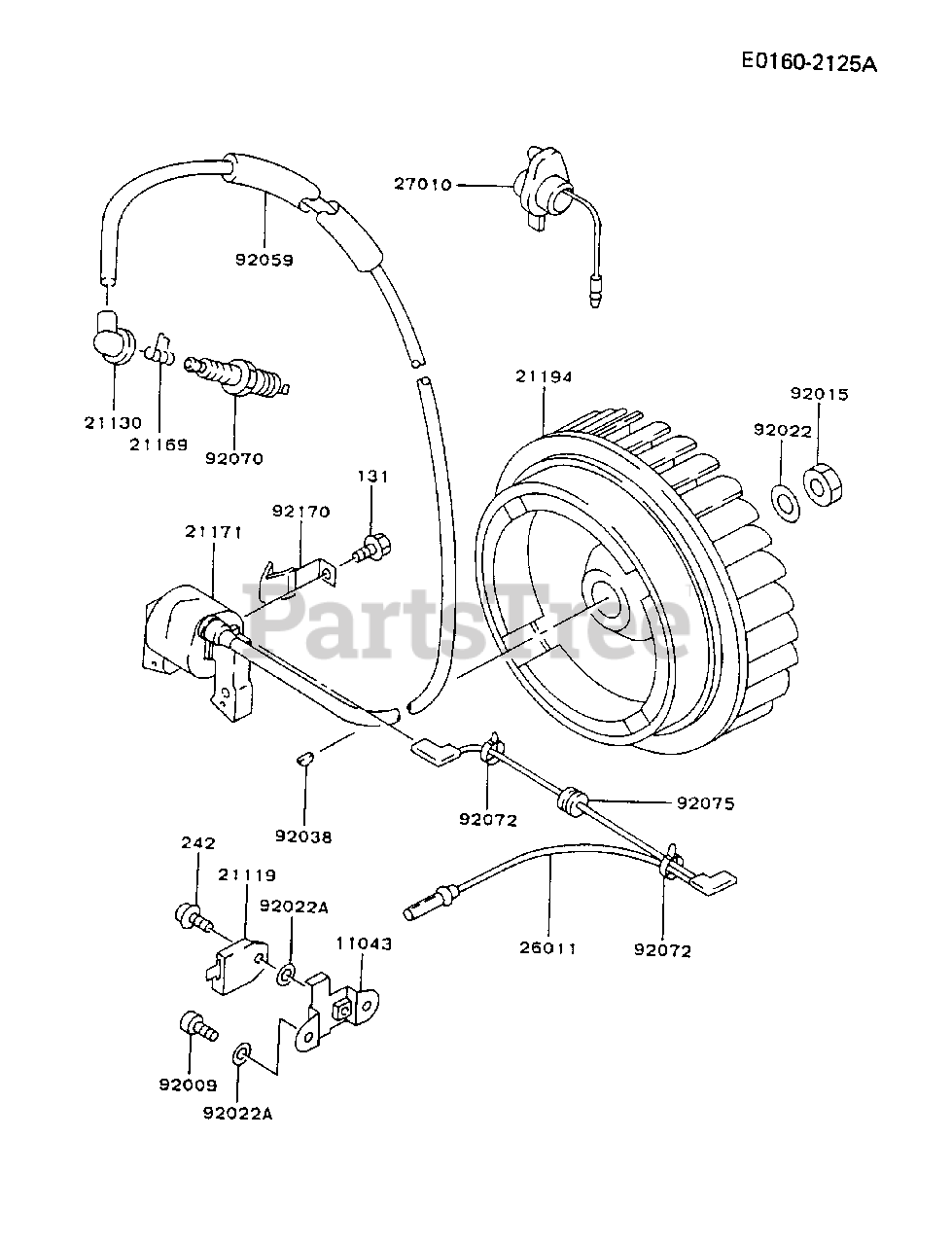

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11043

$

$

Not available

21119

Kawasaki 21119-2111

IGNITER
(Superseded to 21119-2151)

$

$

Not available

21130

Kawasaki 21130-2051

CAP-SPARK PLUG
(Superseded to 21130-2066)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21171

Kawasaki 21171-2148

COIL-ASSY-IGNITION

$

$

Not available

21194

Kawasaki 21194-2181

FLYWHEEL-COMP

$

$

Not available

26011

$

$

Not available

27010

Kawasaki 27010-2052

SWITCH
(Superseded to 315801-8511A)

$13.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2102

SCREW
(Superseded to 92009-2339)

$

$

Not available

92015

Kawasaki 92015-2157

NUT

Note: M14-R

$

$

Not available

92022

$13.99

$

Usually ships in 2-5 days

0

92022A

$5.49

$

Usually ships in 2-5 days

0

$2.99

$

In Stock, Qty 14

0

92059

Kawasaki 92059-2051

TUBE,7.5X10X215

$

$

Not available

92070

Kawasaki 92070-2052

PLUG-SPARK,BP4HS
(Superseded to BP4HS)

$3.49

$

Usually ships in 2-5 days

0

92072

Kawasaki 92072-2003

BAND
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

92075

Kawasaki 92075-2095

DAMPER
(Superseded to 92160-2031)

$

$

Not available

92170

$

$

Not available

131

Kawasaki 131B0520

BOLT-FLANGED

$1.99

$

Usually ships in 2-5 days

0

242

Kawasaki 242B0410

SCREW-PAN-WSP+-
(Superseded to 242AA0410)

$4.49

$

Usually ships in 2-5 days

0
