FG200R-AS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

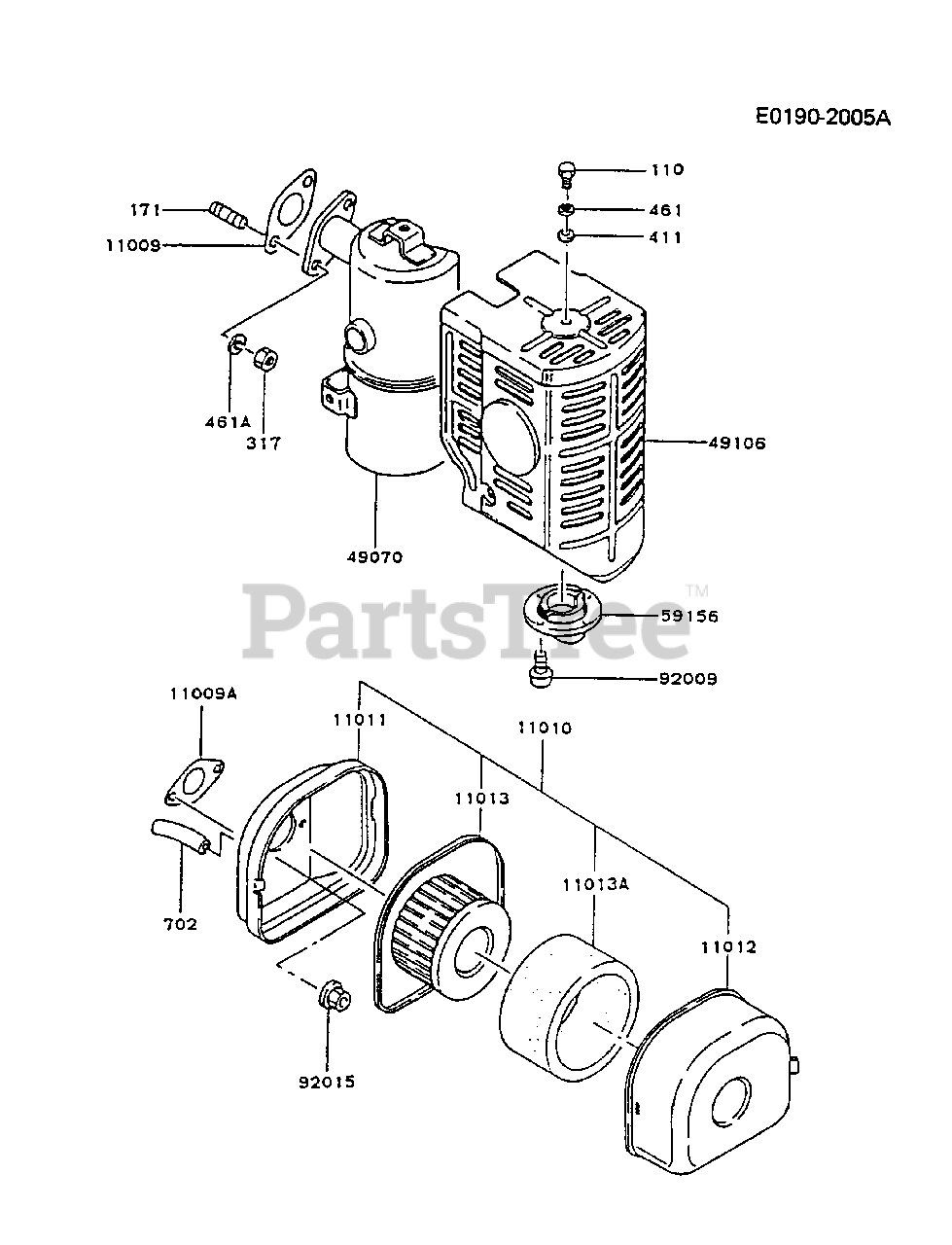

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2125

GASKET,MUFFLER
(Superseded to 11060-2108)

$

$

Not available

11009A

Kawasaki 11009-2127

GASKET,AIR FILTER
(Superseded to 11060-2036)

$1.99

$

In Stock, Qty 6

0

11010

Kawasaki 11010-2354-9H

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2187

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2047-9H

CAP,AIR FILTER
(Superseded to 315510-1316B)

$

$

Not available

11013

Kawasaki 49064-2059

ELEMENT-AIR FILTER
(Superseded to 3144AA-1312A)

$

$

Not available

11013A

Kawasaki 11013-2010

ELEMENT-AIR FILTER
(Superseded to 315510-1313A)

$

$

Not available

49070

Kawasaki 49070-2442-9Y

MUFFLER-COMP

$99.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2407-YM

COVER-MUFFLER

$

$

Not available

59156

Kawasaki 59156-2057-YM

PIPE-TAIL
(Superseded to 59156-2057-9X)

$13.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2106

SCREW
(Superseded to 92009-2307)

$0.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

110

Kawasaki 110R0610

BOLT
(Superseded to 110N0610)

$

$

Not available

171

Kawasaki 171G0818

BOLT-STUD
(Superseded to 171BA0818)

$1.99

$

In Stock, only 2 left!

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0

461A

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

702

Kawasaki 702A071000

TUBE-RUBBER
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0
