FG200D-GS00 - Kawasaki Engine STARTER Parts Diagram

Engine

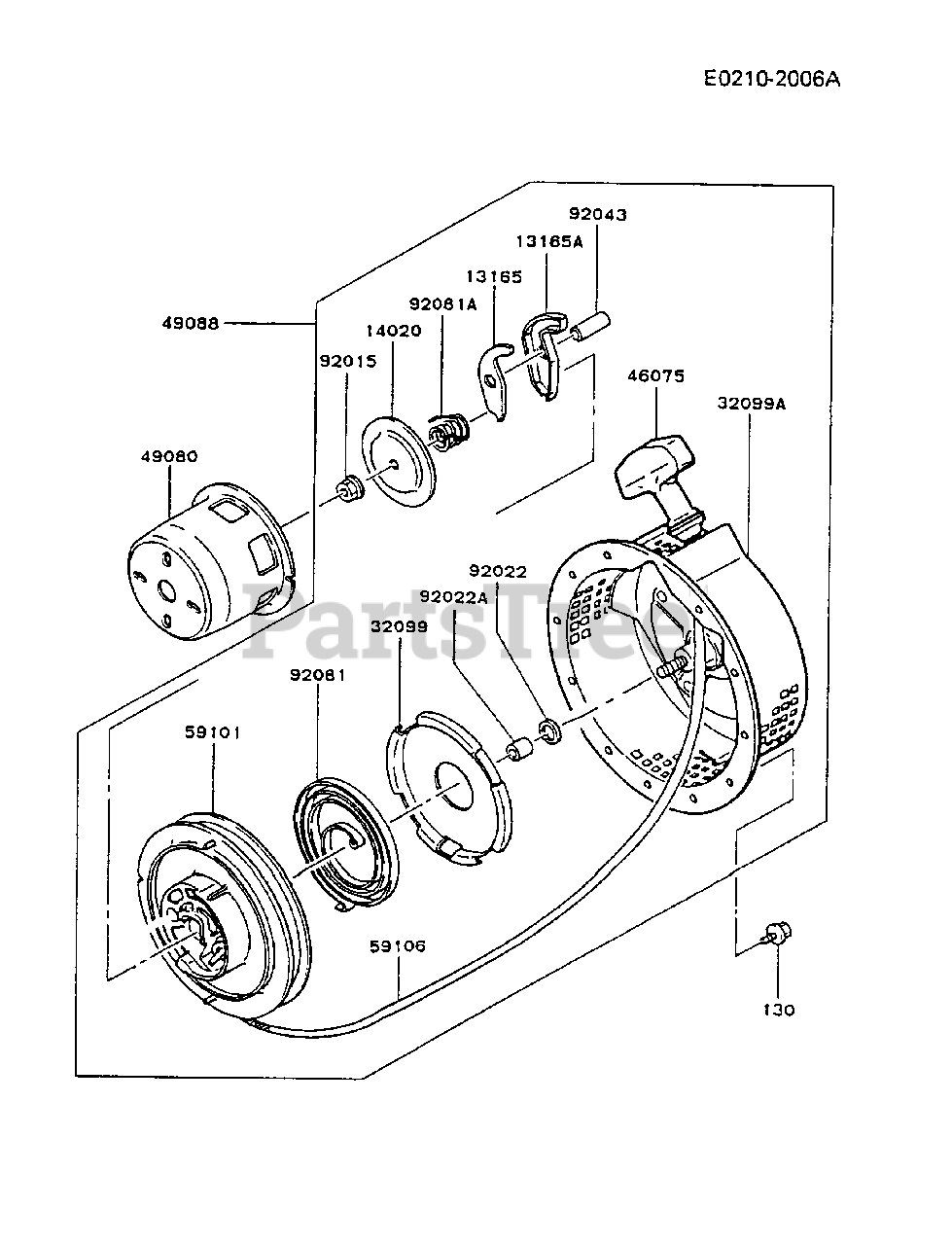

STARTER Parts Diagram

  • Title
13165

Kawasaki 13165-2056

PAWL
(Superseded to 315601-3445A)

$3.99

$

Usually ships in 2-5 days

0

13165A

$

$

Not available

14020

Kawasaki 14020-2053

RETAINER
(Superseded to 14020-2104)

$10.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2064

CASE
(Superseded to 14037-2088)

$

$

Not available

$

$

Not available

46075

Kawasaki 46075-2003

GRIP
(Superseded to 460752091)

$9.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-2122

PULLEY-STARTING
(Superseded to 49080-2053)

$

$

Not available

49088

Kawasaki 49088-2077-9H

STARTER-RECOIL
(Superseded to 315611-3430A)

$

$

Not available

59101

Kawasaki 59101-2053

REEL
(Superseded to 315611-3441A)

$28.99

$

In Stock, only 1 left!

0

59106

Kawasaki 59106-2003

ROPE,5X1300
(Superseded to 314221-3453-00)

$13.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-2126

NUT
(Superseded to 92015-2316)

$0.99

$

In Stock, only 1 left!

0

92022

$1.99

$

In Stock, only 4 left!

0

92022A

$

$

Not available

$

$

Not available

92081

Kawasaki 92081-2265

SPRING,RECOIL

$21.99

$

In Stock, only 2 left!

0

92081A

$

$

Not available

130

Kawasaki 130B0608

BOLT-FLANGED
(Superseded to 130AA0608)

$0.99

$

In Stock, Qty 20+

0
