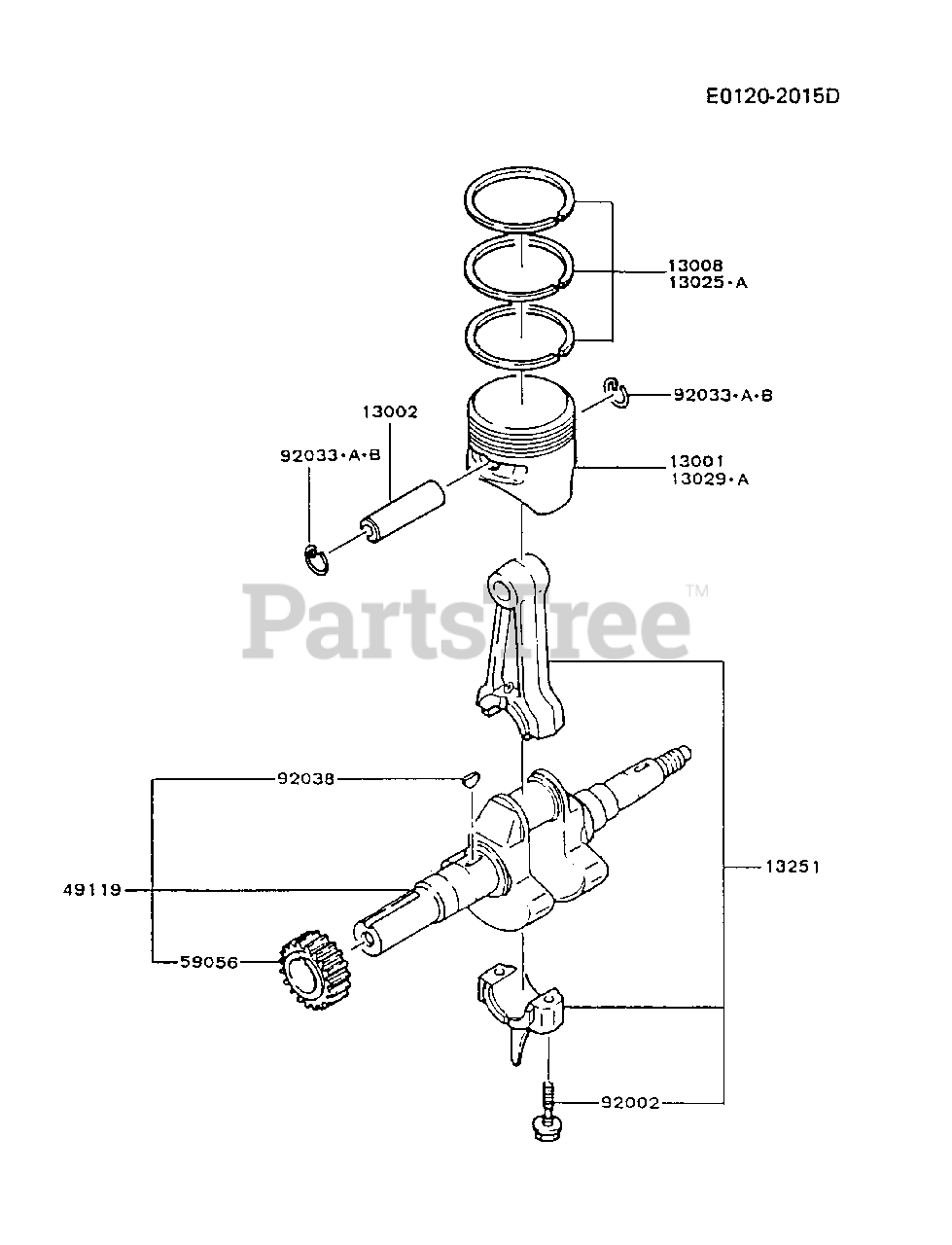

FG200D-CS01 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2052

PISTON-ENGINE

$

$

Not available

13002

Kawasaki 13002-1001

PIN-PISTON
(Superseded to 13002-2003)

$7.49

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-6005

RING-SET-PISTON
(Superseded to 315601-3010A)

$

$

Not available

13025

Kawasaki 13025-2067

RING-SET-PISTON L,0.25

$36.99

$

Usually ships in 2-5 days

0

13025A

Kawasaki 13025-2068

RING-SET-PISTON L,0.50

$

$

Not available

13029

Kawasaki 13029-2071

PISTON-ENGINE L,0.25

$42.99

$

Usually ships in 2-5 days

0

13029A

Kawasaki 13029-2072

PISTON-ENGINE L,0.50

$

$

Not available

13251

Kawasaki 13251-6018

ROD-ASSY-CONNECTING
(Superseded to 13251-6004)

$74.99

$

In Stock, only 1 left!

0

49119

Kawasaki 49119-6186

CRANKSHAFT-ASSY

$

$

Not available

59056

Kawasaki 59056-2021

GEAR-HELICAL

$

$

Not available

92002

Kawasaki 92002-2053

BOLT
(Superseded to 315601-3245A)

$6.99

$

In Stock, Qty 12

0

92033A

Kawasaki 92033-2157

RING-SNAP

$0.99

$

In Stock, only 3 left!

0

92038

Kawasaki 92038-2077

KEY

$2.99

$

In Stock, Qty 14

0
