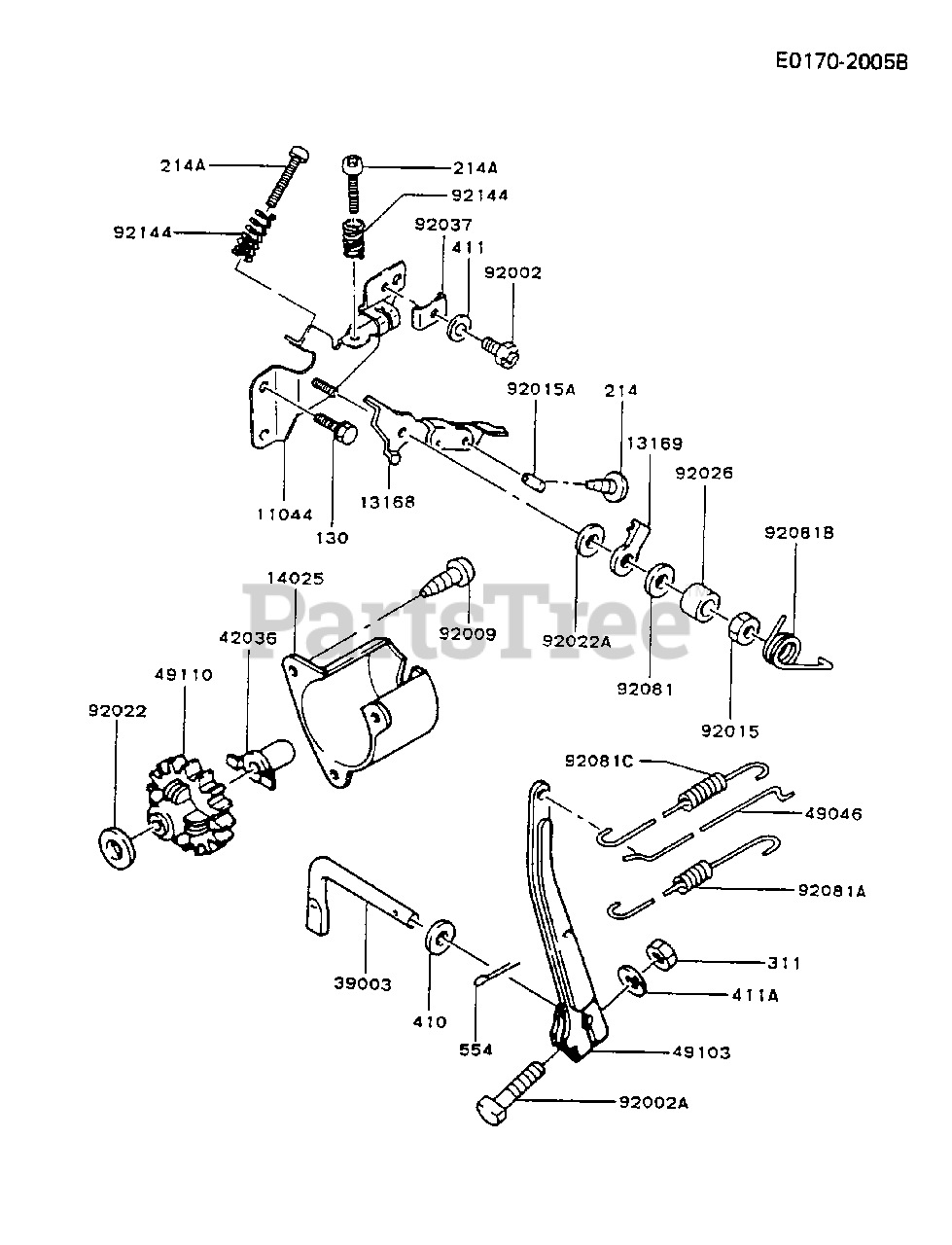

FG150R-AS00 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
92081A

$2.99

$

Usually ships in 2-5 days

0

92081B

$

$

Not available

92081C

Kawasaki 92081-2011

SPRING,LINK
(Superseded to 92144-2244)

$

$

Not available

92144

$0.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0408

SCREW-PAN+-
(Superseded to 214AA0408)

$3.99

$

In Stock, Qty 15

0

214A

Kawasaki 214B0518

SCREW-PAN+-
(Superseded to 214AA0518)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411B0500

WASHER-PLAIN
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 9

0

411A

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0

11044

$

$

Not available

13168

$

$

Currently unavailable

13169

Kawasaki 13169-2113

PLATE
(Superseded to 13183-2400)

$

$

Not available

14025

$

$

Currently unavailable

39003

Kawasaki 39003-2052

ARM-PIVOT
(Superseded to 39003-2069)

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49046

Kawasaki 49046-2091

ROD-GOVERNOR

$1.99

$

In Stock, only 4 left!

0

49103

Kawasaki 49103-2054

ARM-GOVERNOR

$

$

Not available

49110

Kawasaki 49110-2052

GOVERNOR-ASSY
(Superseded to 49110-2079)

$

$

Not available

92002

Kawasaki 92002-2087

BOLT
(Superseded to 315501-5381A)

$0.99

$

In Stock, only 4 left!

0

92002A

$1.99

$

In Stock, Qty 6

0

92009

Kawasaki 92009-2101

SCREW
(Superseded to 92009-2307)

$0.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92015A

$5.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 13

0

92022A

$1.99

$

In Stock, only 3 left!

0

92026

$6.49

$

In Stock, Qty 5

0

92037

$1.99

$

Usually ships in 2-5 days

0

92081

$0.99

$

In Stock, only 3 left!

0
