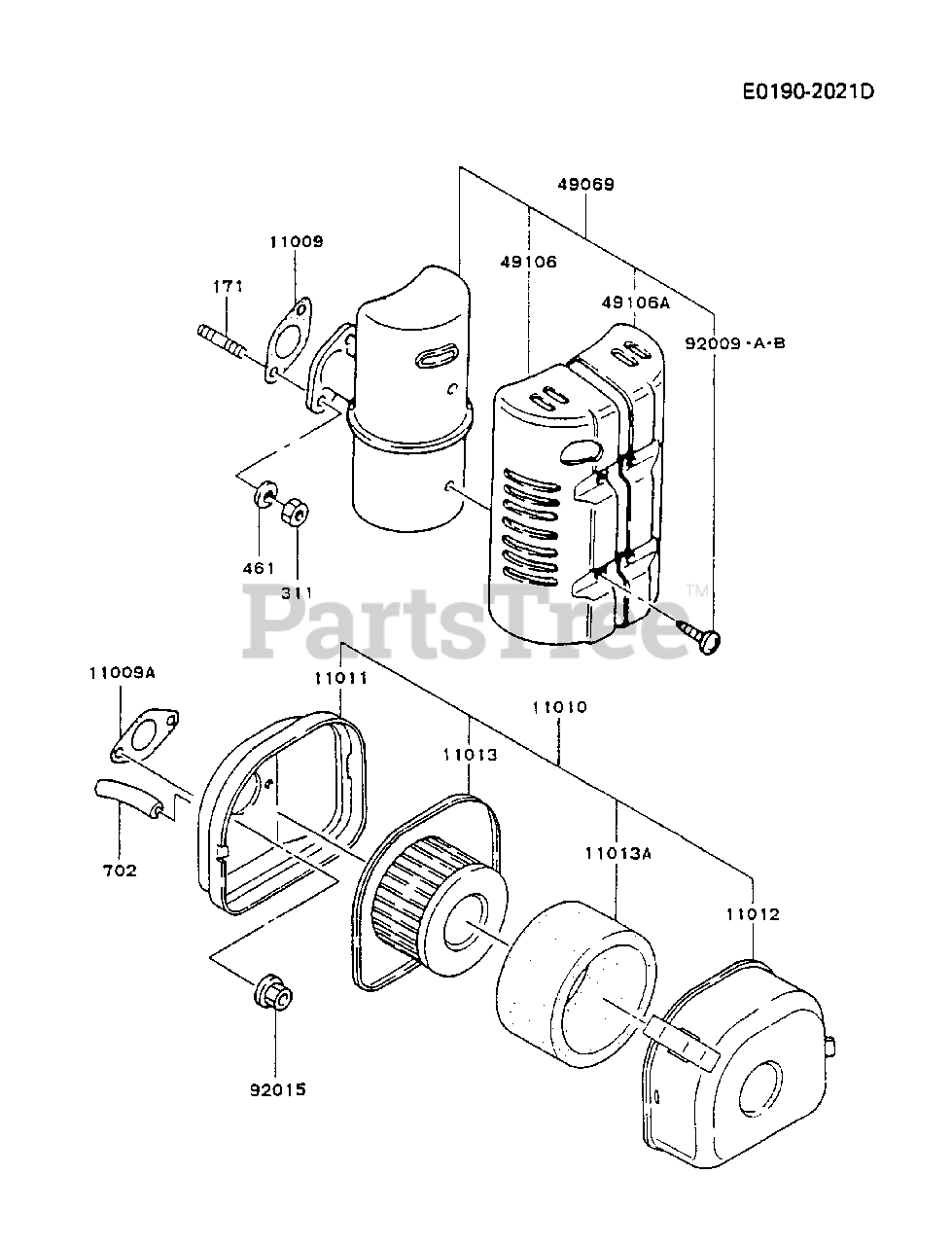

FG150G-CS00 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2124

GASKET,MUFFLER
(Superseded to 11060-2037)

$4.99

$

Usually ships in 2-5 days

0

11009A

Kawasaki 11009-2127

GASKET,AIR FILTER
(Superseded to 11060-2036)

$1.99

$

In Stock, Qty 6

0

11010

Kawasaki 11010-2354-9H

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2187

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2248-9H

CAP,AIR FILTER
(Superseded to 11012-2248)

$

$

Not available

11013

Kawasaki 49064-2059

ELEMENT-AIR FILTER
(Superseded to 3144AA-1312A)

$

$

Not available

11013A

Kawasaki 11013-2010

ELEMENT-AIR FILTER
(Superseded to 315510-1313A)

$

$

Not available

49069

Kawasaki 49069-2053-9Y

MUFFLER-ASSY
(Superseded to 49069-2286-9Y)

$89.99

$

In Stock, only 1 left!

0

49106

Kawasaki 49106-2051-9Y

COVER-MUFFLER
(Superseded to 314601-1431A)

$

$

Not available

49106A

Kawasaki 49106-2052-9Y

COVER-MUFFLER

$

$

Not available

92009A

$0.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

171

Kawasaki 171G0616

BOLT-STUD
(Superseded to 171BA0616)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311R0600

NUT-HEX
(Superseded to 310R0600)

$

$

Not available

461

Kawasaki 461F0600

WASHER-SPRING
(Superseded to 461DA0600)

$0.99

$

In Stock, Qty 6

0

702

Kawasaki 702A071000

TUBE-RUBBER
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0
